CURVE500+

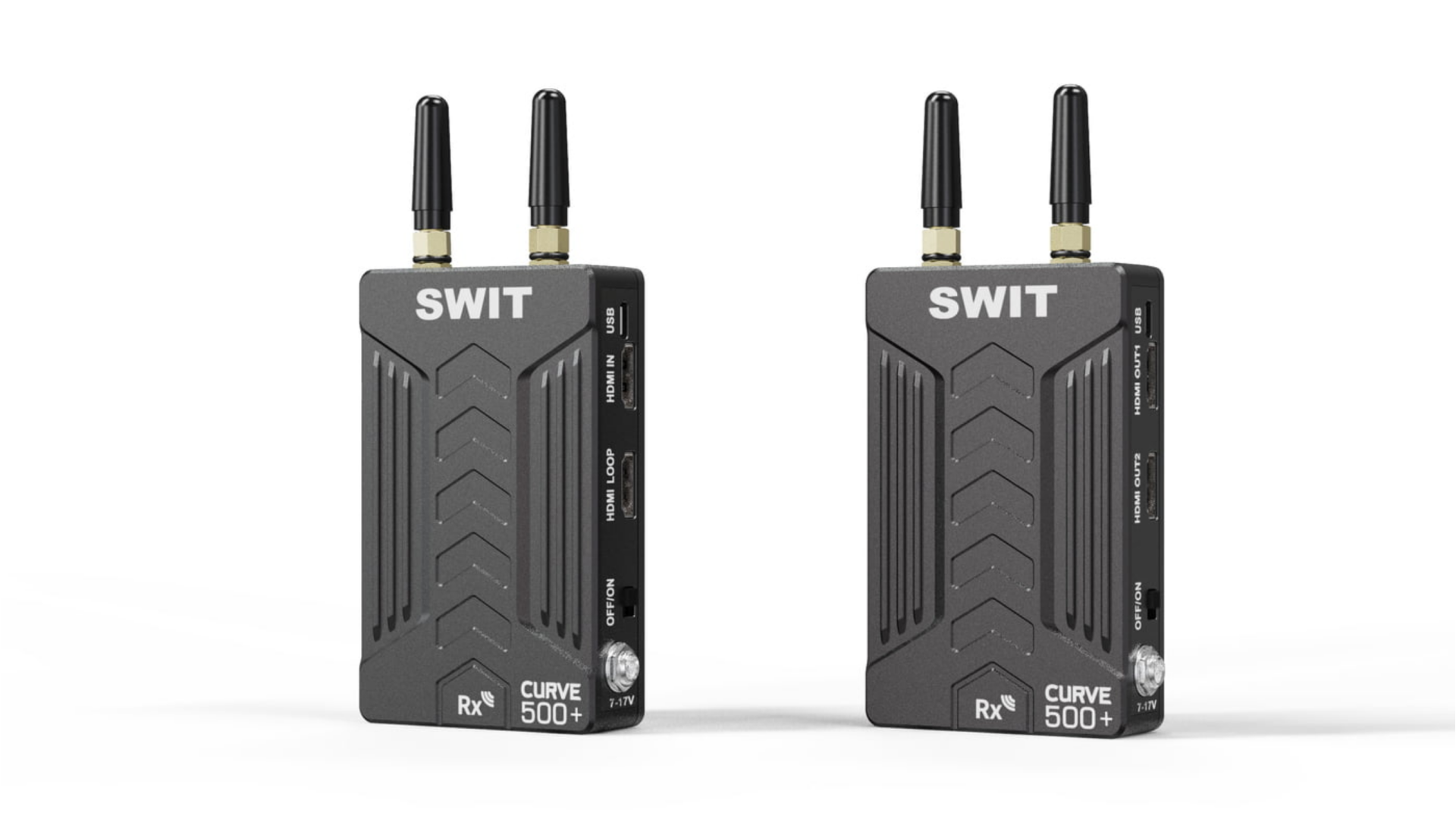

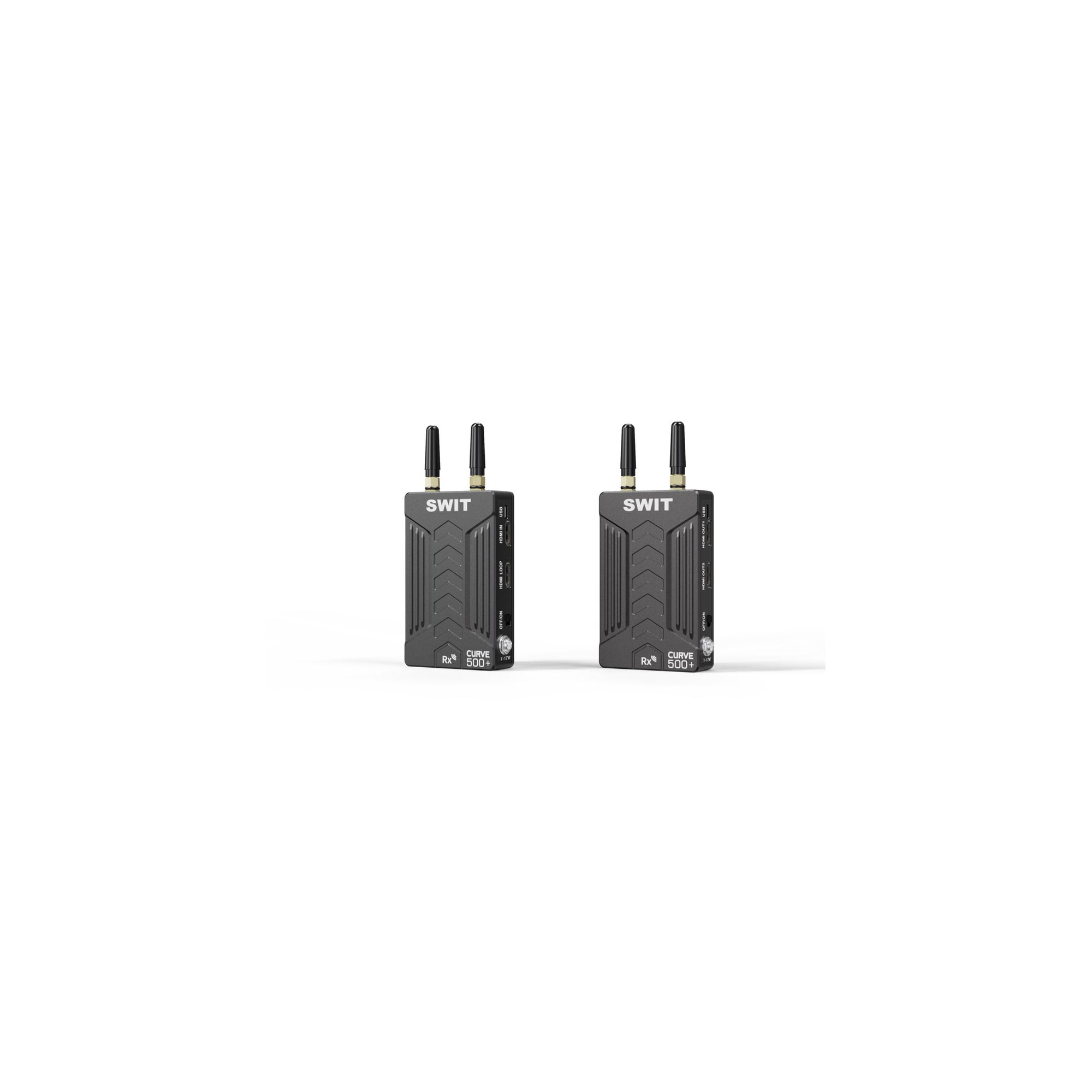

Swit CURVE500+ HDMI 500ft/150m Wireless with USB capture

CURVE500+ wireless system is based on SWIT KUWI wireless video technology, NOT WIFI, 5.1-5.9GHz license free, DFS comply, supports HDMI 1080p60 transmit 500 feet (150 meters) Line-of-Sight distance.

As the updated version, CURVE500+ support USB video capture output to computer for live streaming.

Input & Output
The Transmitter (Tx) supports:
° 1x HDMI input
° 1x HDMI loop output

The Receiver (Rx) supports:
° 2x HDMI output
° 1x Micro USB Video Capture output

USB Video Capture for PC/Mac
CURVE500+ Receiver provides an USB port for video capture output to computer.
You can find CURVE500+ wireless video source from video conference software like MS Team, ZOOM etc, to capture high quality up to 1080p60 video instead of computer webcam.

You can pull CURVE500+ wireless receiving video source to OBS studio, editing, switching and live streaming broadcasting.

500ft/150m Strong Wall-cross
CURVE500+ supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports HDMI embedded audio (CH1&2) transmission.
