Neumann

Large-Diaphragm Multipattern Condenser Microphone (Studio Set, Nickel)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 2.606,61

€ 2.424,75 VAT excl.

€ 2.673,45
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

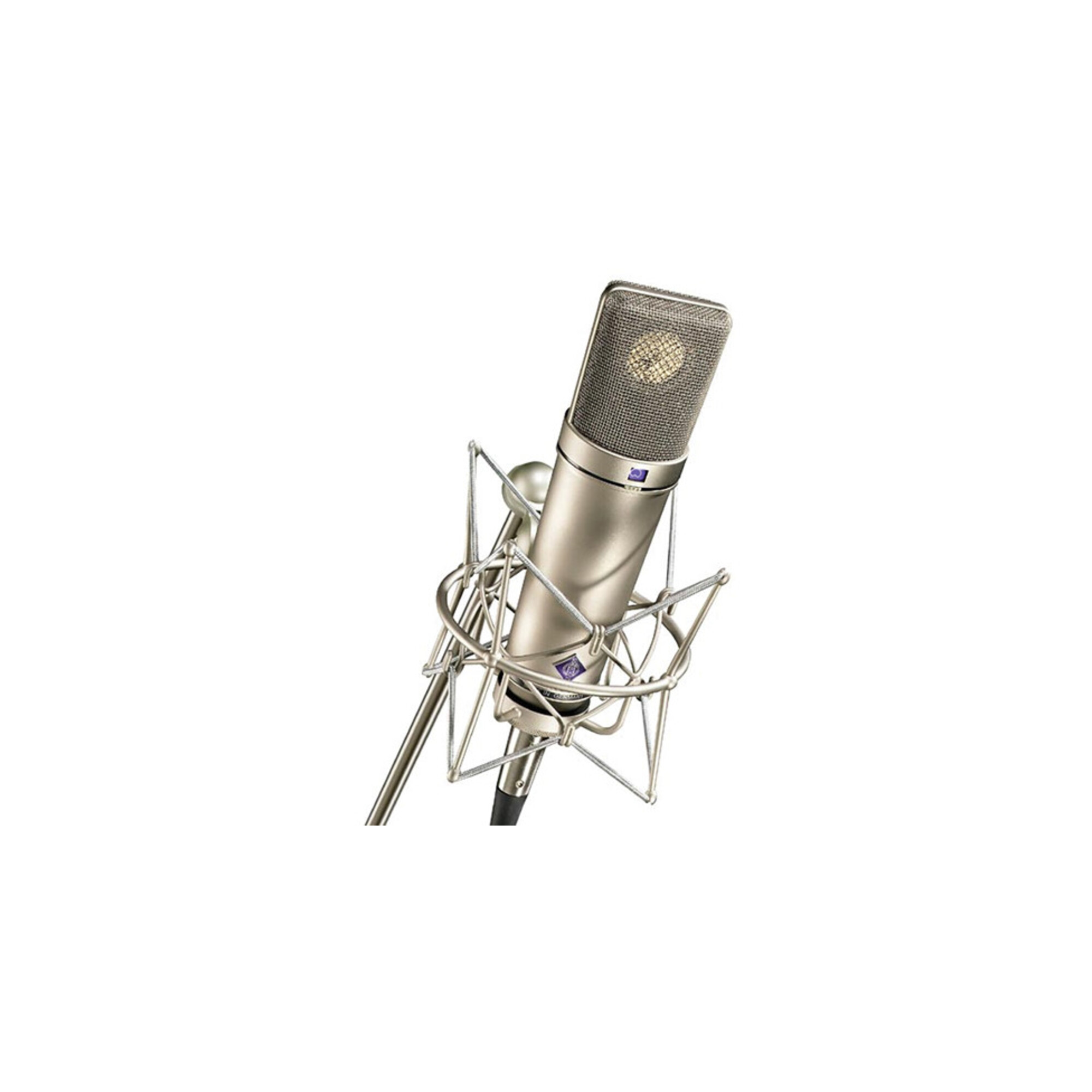

Large-Diaphragm Multipattern Condenser Microphone (Studio Set, Nickel)


Studio Standard for Vocals & Instruments
Cardioid, Omni & Figure-8 Polar Patterns
Dual-Diaphragm Condenser Capsule
Low-Noise FET Circuit
Transformer-Balanced Output
-10 dB Pad
Switchable Low-Cut Filter
Shockmount Reduces Vibration Noise
Includes Wooden Box
48V Phantom Powered

A definitive legend for decades, the nickel Neumann U 87 Ai is a large-diaphragm condenser microphone offering the timeless and special sound that remains highly coveted for singers, voice-over artists, announcers, producers, and recording engineers to this day. By combining the same dual-diaphragm capsule design as the heralded U 67 with FET circuitry and a transformer-balanced output, the U 87 Ai retains the voicing that made the U 87 famous while ensuring low-noise performance and optimal signal purity.

The U 87 Ai's dual-diaphragm capsule, which is elastically suspended, affords the selection of three polar patterns (omni, cardioid, and figure-8) to enhance versatility in the studio. Additionally, the mic provides a switchable -10 dB pad that allows it to capture SPLs up to 127 dB without distortion, and a low-cut filter for controlling buildup of low-frequency content. Whether it is used for broadcast, stage, or studio applications, the U 87 Ai presents the sought-after look, sound, and reputation of a true classic.


In the Box

Neumann U 87 Ai Large-Diaphragm Multipattern Condenser Microphone (Studio Set, Nickel)
Neumann EA 87 Shockmount for U 87 Microphones (Nickel)
Wooden Box

Microphone
Primary Applications Studio Recording, Broadcast
Form Factor Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources Vocals, Speech/Voice Over, Instrument
Sound Field Mono
Operating Principle Pressure Gradient
Capsule Condenser
Polar Pattern Cardioid, Figure-8, Omnidirectional
Pattern Selection Switched (Adjustable on Mic)
Orientation Side Address
Circuitry Solid-State (FET)
Pad -10 dB
High-Pass Filter Yes
Tone Adjustment None
Gain Adjustment None
Indicators None
On-Board Controls High-Pass Filter, Pad, Polar Pattern
Windscreen None
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL Cardioid: 117 dB SPL (1 kHz, .5% THD)
Cardioid: 127 dB SPL (1 kHz, .5% THD, with Pad)
Impedance 200 Ohms
Load Impedance 1000 Ohms
Sensitivity Omnidirectional: 20 mV/Pa at 1 kHz into 1 Kilohms
Cardioid: 28 mV/Pa at 1 kHz into 1 Kilohms
Figure-8: 22 mV/Pa at 1 kHz into 1 Kilohms
Output Level -6 dBu (Max)
Signal-to-Noise Ratio Omnidirectional: 79 dB A-Weighted
Cardioid: 82 dB A-Weighted
Figure-8: 80 dB A-Weighted
Omnidirectional: 68 dB CCIR
Cardioid: 71 dB CCIR
Figure-8: 69 dB CCIR
Equivalent Noise Level Omnidirectional: 15 dB A-Weighted
Cardioid: 12 dB A-Weighted
Figure-8: 14 dB A-Weighted
Omnidirectional: 26 dB CCIR
Cardioid: 23 dB CCIR
Figure-8: 25 dB CCIR
