Audiotechnica

Condenser Shotgun Microphone (22.4 ")
go to the technical sheet
  • -2.5%
Save 2.5%
€ 1.309,98

€ 1.218,59 VAT excl.

€ 1.343,58
Available in 11 days
Not sure if this is the right product for you? Talk to a consultant

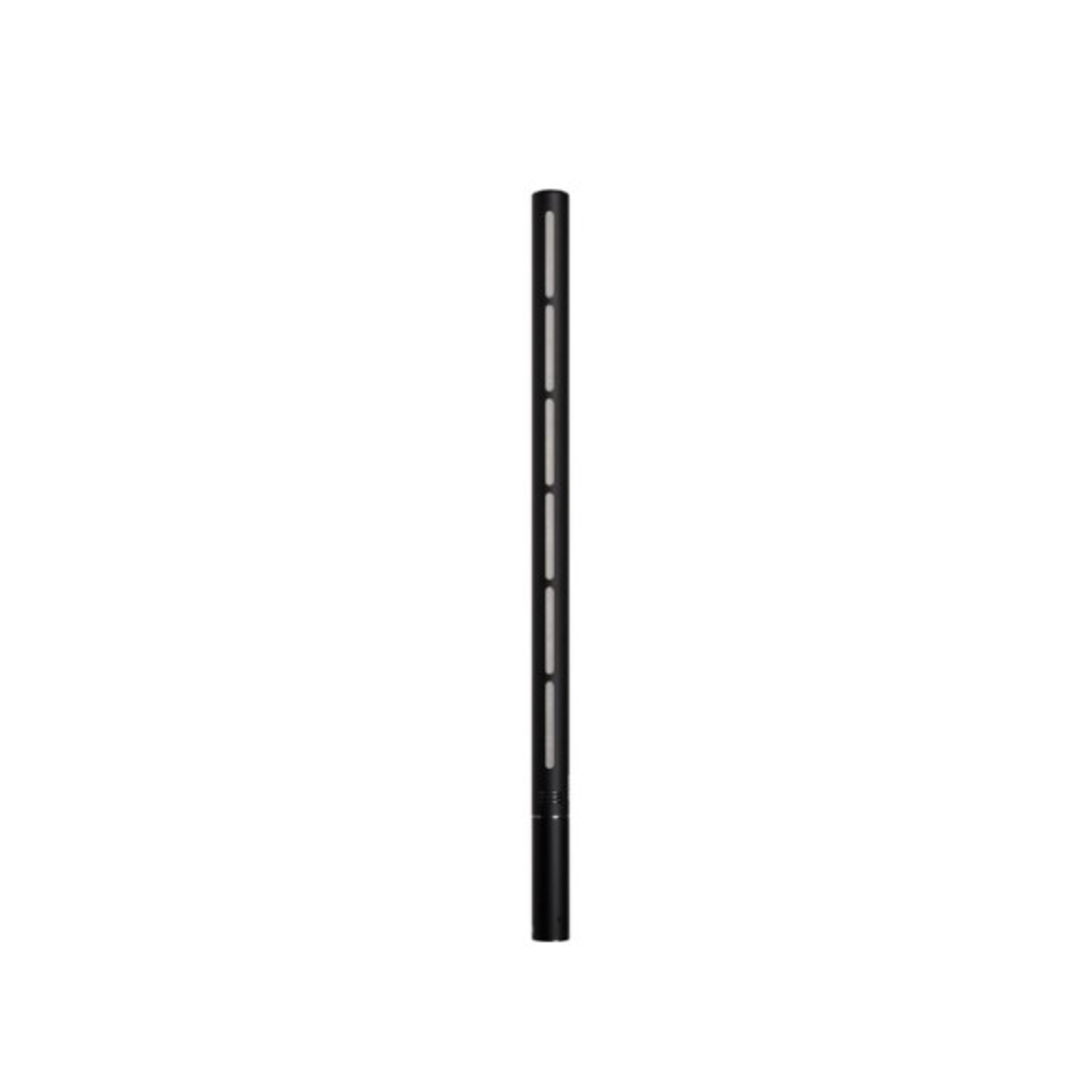

The BP28L from Audio-Technica is a 22.4" shotgun microphone that combines the directional characteristics of shotgun microphones with a highly sensitive, large-diaphragm condenser mic capsule that delivers accurate and natural sounding speech and dialog. The BP28L's very high directivity, low noise, and transparent audio reproduction make it well suited to broadcast, video, feature film, and theater applications.

The BP28L sports a 28mm diameter body to accommodate the large capsule and uses a lengthy interference tube to deliver extremely narrow audio capture focused on the subject at the end of the barrel. In addition, the mic incorporates a directional (gradient) element into the tube to further reduce pickup from the rear. Lightweight, yet durable, aluminum housing means the mic is still relatively easy to position and handle on a boom during active productions.

Features at a Glance
Large-diaphragm microphone capsule provides extremely high sensitivity (-23 dBV), wide dynamic range (135 dB), and high-SPL capability (148 dB, with pad engaged) for studio-quality results and highly accurate, natural-sounding speech and vocals with a very low noise floor
22.4" length provides an extremely directional pickup pattern
Patented acoustic port design maintains directionality across the entire frequency range
Switchable 80 Hz high-pass filter & 10 dB pad
Transformer-coupled output provides a smooth sonic character
Rugged housing made of lightweight structural-grade aluminum alloy

Microphone
Primary Applications: Broadcast, Audio for Video, Location Sound
Form Factor: Shotgun Mic / Stand/Boom Mount
Intended Sound Sources: Vocals, Speech/Voice Over
Sound Field: Mono
Operating Principle: Line Gradient
Capsule: Condenser
Polar Pattern: Lobar, Supercardioid
Orientation: End Address
Circuitry: Solid-State
Pad: -10 dB
High-Pass Filter: 80 Hz, 18 dB/Octave
Gain Adjustment: None
Indicators: None
On-Board Controls: High-Pass Filter, Pad
Windscreen: Foam (Included)
Performance
Frequency Range: 20 Hz to 20 kHz
Maximum SPL
138 dB SPL
148 dB SPL (with Pad)
Impedance: 250 Ohms
Sensitivity: -23 dB
Dynamic Range: 135 dB
Signal-to-Noise Ratio: 91 dB A-Weighted (1 kHz)
Equivalent Noise Level: 3 dB A-Weighted
THD: 1%
Connectivity
Output Connectors: 1 x XLR 3-Pin Male (on Mic)
Headphone Connector: None
Power
Operating Voltage: 11 to 52 V
Operating Current Consumption: 3.4 mA
Physical
Mounting: Mic Clip/Stand Adapter (Included)
Mounting Thread Size: 5/8"-27 Female (3/8"-16 Female with Included Adapter)
Included Case: Hard Case
Included Filters: None
Construction Material: Aluminum
Dimensions: 1.1 x L: 22.4" / diameter: 28 x L: 568 mm
Weight: 11 oz / 313 g
Packaging Info
Package Weight: 3.265 lb
Box Dimensions: 28.4 x 3.9 x 3.5"

Audio-Technica BP28L Line + Gradient Large-Diaphragm Condenser Shotgun Microphone (22.4" Length)
Audio-Technica AT8470 Quiet-Flex Microphone Stand Clamp
5/8" to 3/8" Threaded Adapter
AT8169 Windscreen
Carrying Case
Limited 2-Year Warranty
