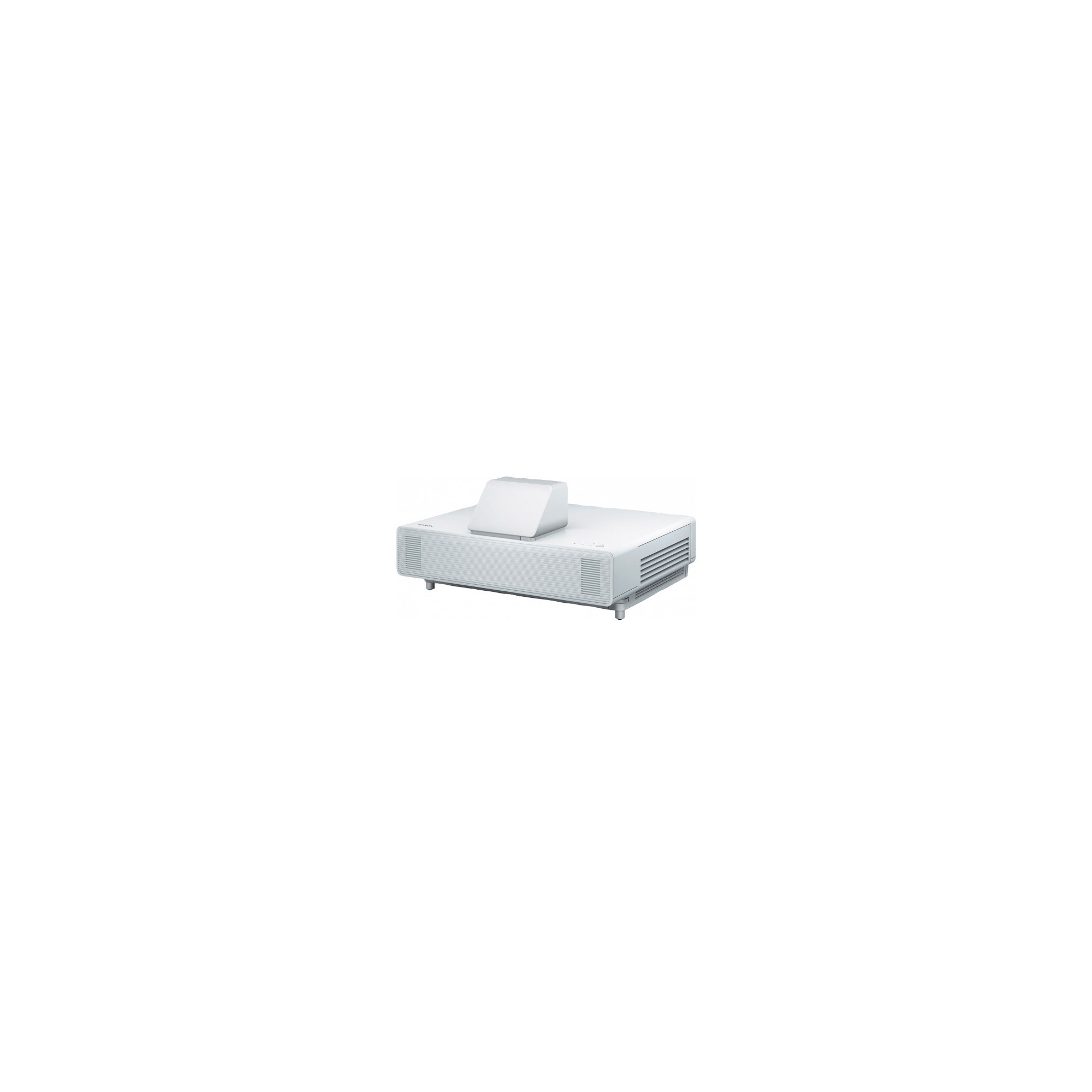

EB-800F

SPECIFICATIONS
======================

TECHNOLOGY
Projection System 3LCD Technology
LCD Panel 0.62 inch with C2 Fine

Color Light Output 5,000 Lumen- 3,500 Lumen (economy)
White Light Output 5,000 Lumen - 3,500 Lumen (economy)
Resolution Full HD 1080p, 1920 x 1080, 16:9
Aspect Ratio 16:9
Contrast Ratio Over 2,500,000 : 1
Light source Laser
Laser Light source 20,000 hours Durability High, 30,000 hours Durability Eco
Keystone Correction Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing 10 Bits
2D Vertical Refresh Rate 192 Hz - 240 Hz
Colour Reproduction Upto 1.07 billion colours

OPTICAL
Throw Ratio 0.27 - 0.37:1
Zoom Digital, Factor: 1 - 1.35
Lens Optical
Screen Size 65 inches - 130 inches
Projection Distance Wide 0.4 m ( 65 inch screen
Projection Distance Tele 0.8 m ( 130 inch screen
Projection Lens F Number 1.5
Projection Lens Focal Length 3.9 mm
Projection Lens Focus Manual
Offset 9 : 1

CONNECTIVITY
Interfaces USB 2.0 Type A (2x), USB 2.0 Type B, Powered USB, RS-232C, Ethernet interface (100 Base-
TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in
(3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Stereo mini jack audio out, Stereo
mini jack audio in (3x)


GENERAL
Power consumption 366 Watt, 262 Watt (economy), 0.5 Watt (standby)
Heat Dissipation 1,244 BTU/hour (max)
Supply Voltage AC 220 V - 240 V, 50 Hz - 60 Hz
Product dimensions 458 x 375 x 210 mm (Width x Depth x Height)
Product weight 9.4 kg
Noise Level Normal: 36 dB (A) - Economy: 27 dB (A)
Supported Temperature Storage -10° C - 60° C
Supported Humidity Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with
heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke
or bubbles are used for event staging, or where aroma oils are frequently burned, it can make
certain parts of our products susceptible to a material degradation which over time could
break and cause the projector to drop from the ceiling.
If you are concerned about the environment in which your projector is installed, or if you have
any other questions, please contact our support department and they can provide additional
assistance.
Included Software Content DIY App, iProjection, Epson Projector Content Manager, Epson Projector
Management
Options Wireless LAN unit
Loudspeaker 8 Watt, Stereo: Stereo
Room Type / Application Signage / Retail, Visitor Attraction
Positioning Ceiling Mounted, Desktop, Wall Mounted
Colour White
