NBB75FA

Name: NBB75FA
Brand: Neutrik
SKU: NBB75FA
Price: 16823 NGN
Availability: InStock

Neutrik

EAN: 7613187010873

75 Ohms Feed-Through Coupler Adapter

go to the technical sheet

₦ 16,823.00

₦ 15,649.00 VAT excl.

Available 12 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

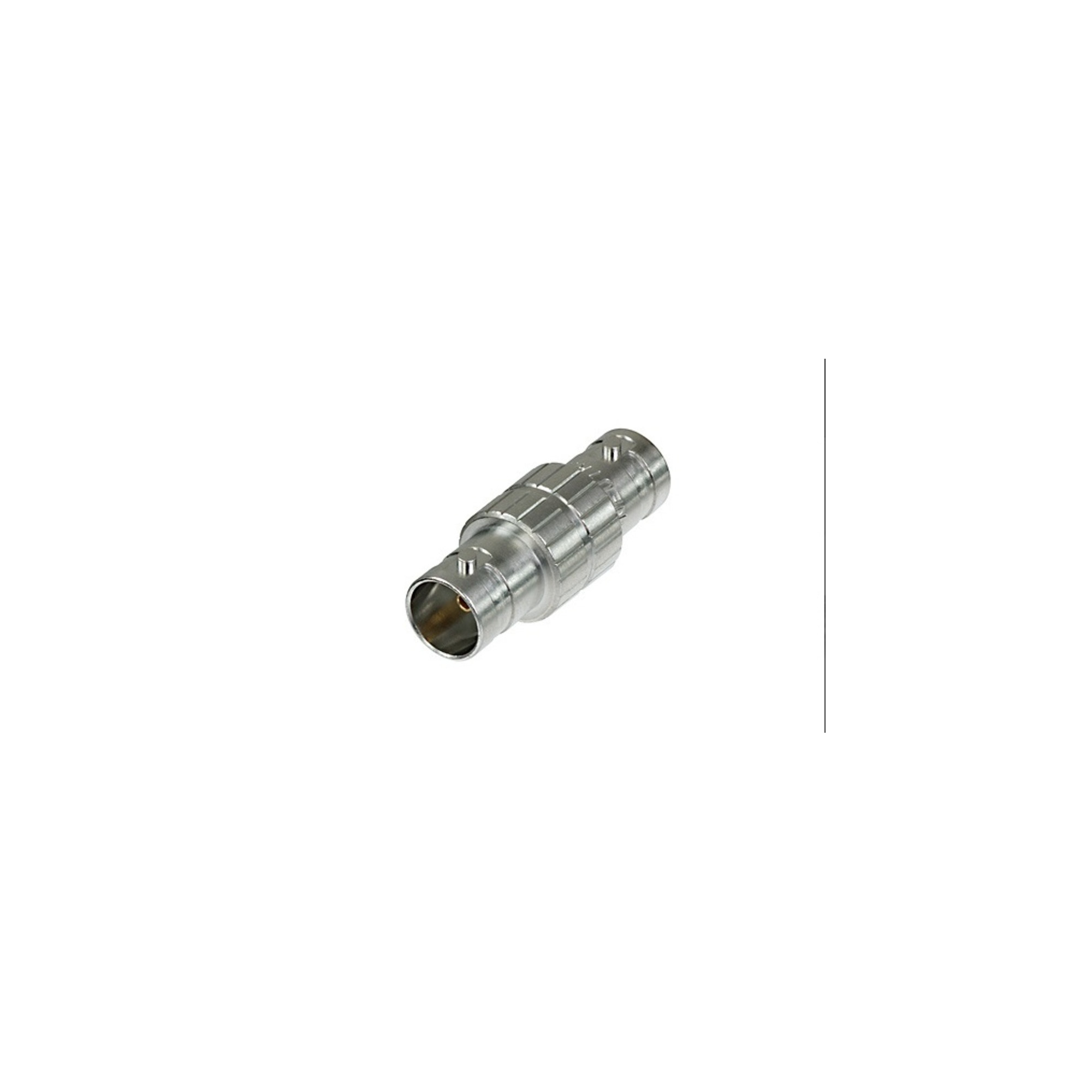

Constructed by Neutrik to meet HD requirements, the NBB75FA is a BNC feed-through coupler offering a true 75 Ohms design. It features a gold-plated cage-type clip, thereby ensuring both optimal shielding and minimal contact resistance. It also sports a closed-contact design in order to provide durability. This adapter is suitable for HD, SDI, Video, AES/EBU, YUV, RGB, RGBH, and RGBHV connections.

Connection Type BNC 75 Ohms female
Signal Type HD, SDI, video, AES / EBU, composite, YUV, RGB, RGBH, and RGBHV
Contact Resistance =3 MOhms (inner)
Comment =2 MOhms (outer)
Dielectric Strength 1.5 kVDC
Insulation Resistance >5 GOhms
Rated Voltage 500 V
VSWR =1.03 / >37 dB up to 1 GHz
=1.05 / >32 dB up to 2 GHz
=1.08 / >28 dB up to 3 GHz
Insertion Force <25 N
Lifetime >1,000 mating cycles
Locking Device Bayonet
Contacts Brass (CuZn39Pb3), ground contact
Insert PTFE
Shell Brass (CuZn39Pb3)
Standard Compliance IEC 6016908, MIL 348A
Temperature Range -22 to 185°F (-30 to 85°C)
Dimensions (diameter x L) 0.51 x 1.34" (13 x 34 mm)
