BNC TERMINATION PANEL

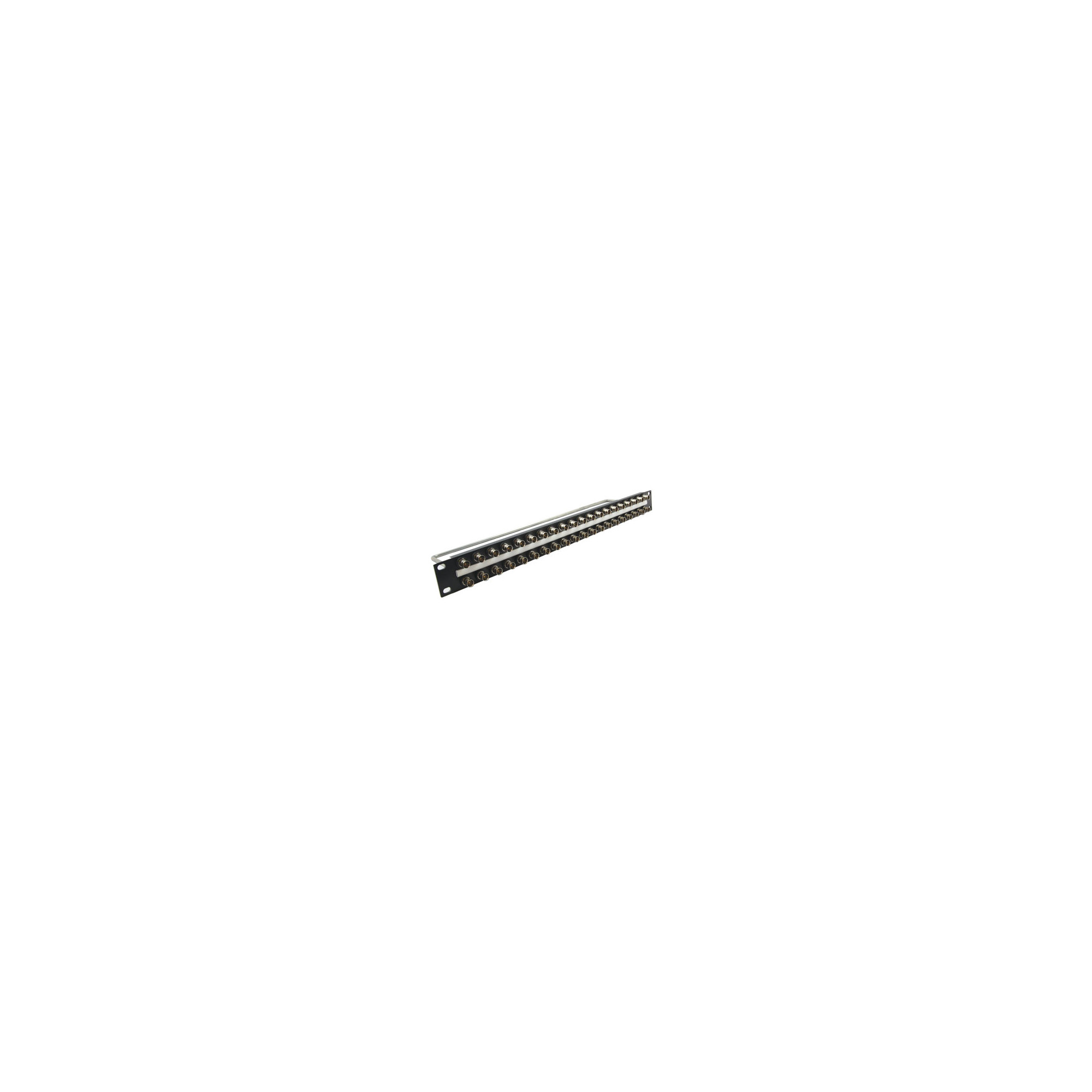

With two rows of connectors in 1U panels, each row with 16, 20 or 24 connectors, depending on model, these 'Ultra High Definition' BNC termination panels are intended for 12G 4K ultra high definition (2160P60), 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE ST 2082-1 making them suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz.

Manufactured from a lightweight, but extremely rigid, aluminium extrusion, panels are fully-populated with up to 24 pairs of Coax Connectors 'KORUS' double-sided, 'Ultra High Definition', 12G, 75 ohm sockets, equally spaced across the panel. Due to the high connector-density only a single, centrally mounted, lacing-bar is fitted to the rear of the panel. On the front sits a centrally-located designation-strip holder with snap-on cover, allowing paper inserts with 7.5mm of printable height to be inserted before or after installation. Due to the close vertical and horizontal pitch between connectors, it may be necessary to use a BNC fitting tool to mate cable connectors, see BNC fitting tools.
