MK48-V1B-BK

Name: MK48-V1B-BK
Brand: Skaarhoj
SKU: MK48-V1B-BK
Price: 6665834.09 NGN
Availability: OutOfStock

Skaarhoj

EAN: 5714074002611

SKAARHOJ Master Key 48 w/Blue Pill Inside - MK48-V1B-BK

go to the technical sheet

₦ 6,665,834.09

₦ 6,200,775.90 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 666,583.41

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

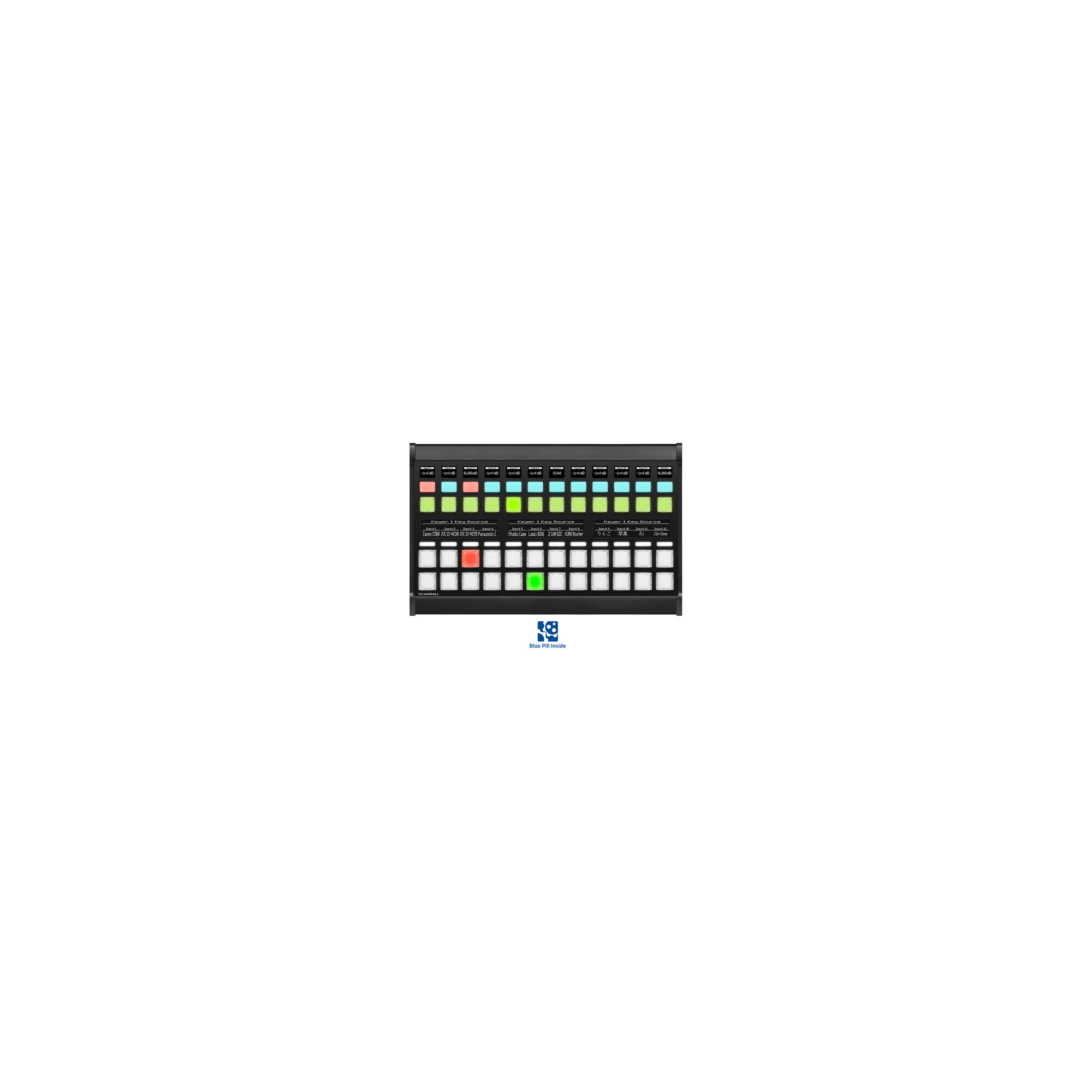

SKAARHOJ Master Key 48 w/Blue Pill Inside
The Master Key 48 Black w/Blue Pill Inside is a highly powerful panel that comes with the native ability to connect to a Master Key One panel, making it expandable and customizable. This panel, along with the Master Key One, features a combination of industry standard NKK buttons and SKAARHOJs innovative custom molded elastomer four-way buttons, along with OLED displays. This makes it a perfect choice for high-end studios and OB trucks, providing a flexible and modular switcher surface.

Master Key One w/Blue Pill Inside is our top of the line stand-alone switcher panel.

Benefits
_______________________________
° Sleek black finish for sophisticated professional setups
° 12 additional input columns for expanded control
° Crisp OLED displays ensure clear visibility of functions
° High-quality NKK Sculptured Cap buttons for superior feedback
° Ideal for broadcast and live production environments seeking cohesive aesthetics

Features
_______________________________
° Extensive list of supported devices
° Advanced ergonomics
° Versatile connectivity via IP
° Durable build quality
° Designed with modularity in mind
° Layout matching Master Key One
° 12 program and 12 preview backlit buttons
° 12 NKK functional buttons
° 12 silicon functional 4-way buttons
° Multiple OLED displays for labels and feedback
° Universal control of multiple 3rd party devices
° User customization with Reactor Web UI
° 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
° Designed and made in Denmark
° Time tested - adopted by professionals worldwide

Hardware Specifications
Component Highlights : Sculptured cap NKK broadcast buttons
Buttons : Sculptured Hard Cap Button (x36), Elastomer Four-Way Button (x12)
Programmable OLED Tiles: 64x48 pixels (x12), 256x26 pixels, gray (x3), 64x58 pixels, gray (x12), 64x32 pixels, gray (x12), 64x26 pixels, gray (x12)
Other : LED-Bar, 3 steps, Large (x12), OLED Display Tile (x39)

Connectivity
Networking : 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
Service Port : Micro USB for setting manual IP
Peripherals : USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.

Software
Platform : Blue Pill (Reactor, Device Cores, skaarOS Linux)
Licenses : Full Reactor and Device Core licenses included

Dimensions
Length 280mm
Height 65mm
Width 180mm

Power
Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
Power Consumption: 16 Watt

Physical and Shipping
Product Weight : 1564 g
Shipping Box Weight: 2110 g
