Multi AV to HDMI 2.0 Switch

Name: Multi AV to HDMI 2.0 Switch
Brand: Lindy
SKU: Multi AV to HDMI 2.0 Switch
Price: 5419235.18 NGN
Availability: OutOfStock

Lindy

EAN: 4002888381567

Multi AV to HDMI 18G Switch, 6 Ports (Scales 4 Signals to a Single Monitor)

go to the technical sheet

₦ 5,419,235.18

₦ 5,041,149.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 541,923.52

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

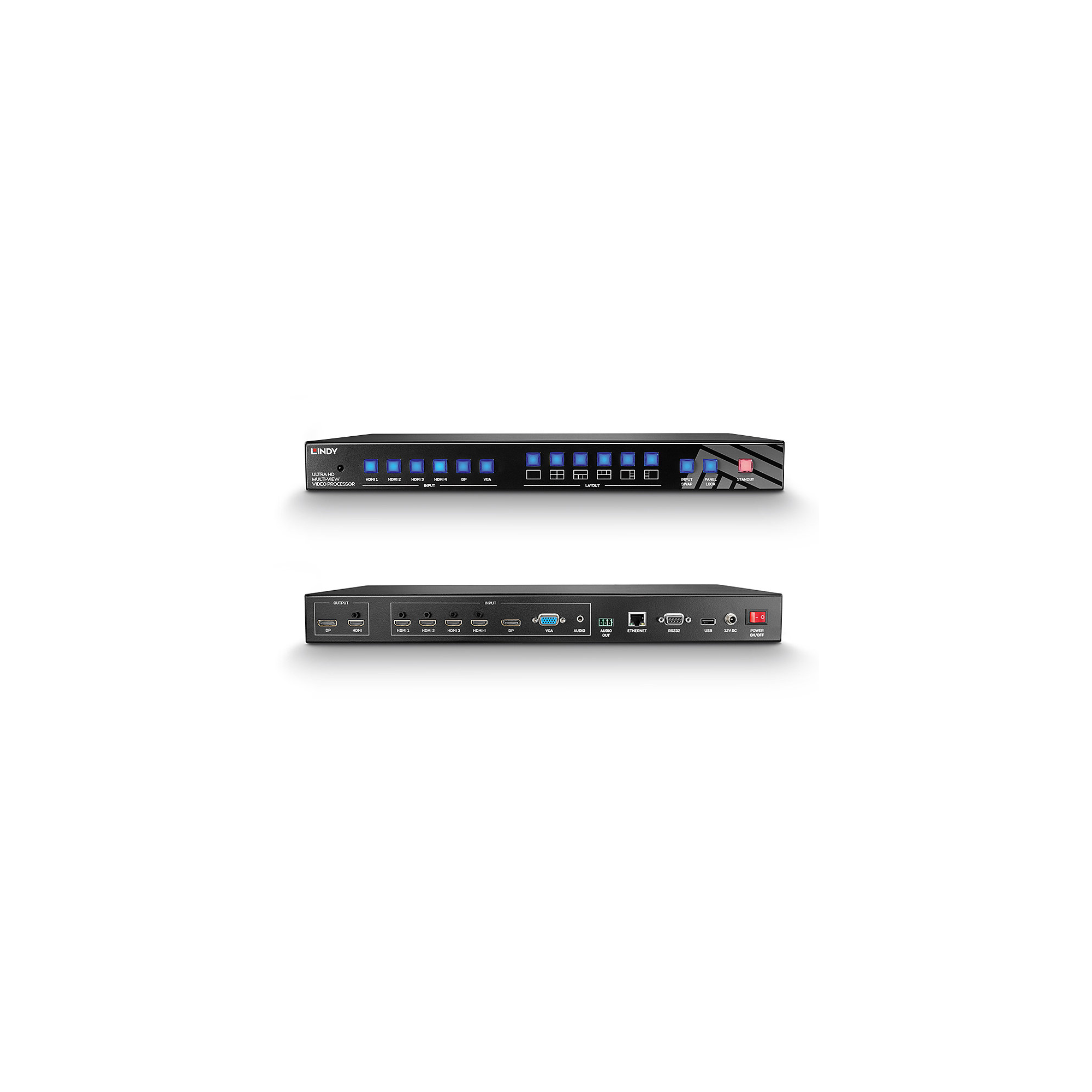

Lindy Multi AV to HDMI 18G Switch, 6 Ports (Scales 4 Signals to a Single Monitor)

- UHD Video Processor for scaling 4 signals to a single monitor
- Supports resolutions up to 4K 3840x2160@60Hz
- Allows you to display sources in different selectable layouts
- Converts and scales incoming AV signals on one output, while the second output displays a single input.

This Ultra HD Multi-View video processor allows you to display multiple sources on a single monitor and one source on a second monitor to monitor a specific input.
The video processor features signal scaling and conversion functions for maximum flexibility.

Ideal for situations where multiple video signals need to be constantly monitored, such as CCTV stations, statistical or performance monitoring applications in complete security, or in retail or corporate environments.

Equipped with HDMI and DisplayPort outputs and HDMI, VGA, and DisplayPort inputs, this processor can be paired with HDMI, DisplayPort, and VGA extenders for installation near sources or monitors.

Preset Display Modes and Layouts
PoP/PiP and Multi-View modes can be selected for full control over the positioning of the four video signals on the monitor. Six preset video layouts, selectable via the front panel or web interface, allow for quick and easy setup.

Output Monitoring
The second output can be used to monitor a specific input, selectable from the connected sources.

Signal Scaling and Conversion
The video processor supports scaling, allowing you to use multiple input signals and send them to a single output.
Furthermore, mixed signals can be selected using the conversion function, for example, a VGA signal can be converted to HDMI or DisplayPort.

General
AV Interfaces: HDMI, DisplayPort
Interface Standards: HDMI 2.0, DisplayPort 1.2
Supported Bandwidth: 18 Gbit/s
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Audio Support: Audio Pass-Through, Stereo Audio
Separate Audio Ports: Terminals
Serial Interface: RS232
Special Features: PiP, Multi-View, Scaling
Material: Metal
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Supply: 12VDC 2A
Color: Black
Dimensions WxHxD: 440x230x45mm (17.32x9.05x1.77in)
Net Weight: 2.72kg (5.99lb)

Connectors
Inputs: 4 x HDMI (Female), DisplayPort (Female), VGA (Female), 3.5mm (Female)
Outputs: HDMI (Female), DisplayPort (Female), 3-pin terminals
Control: RS232, RJ45 (IP)
Power Supply: 5.5/2.1mm

1x Ultra HD Multi-View Video Processor
1x IR Remote Control
1x 19" Rack Mounting Brackets
1x Multi-Country Power Supply (EU, UK, US, AUS)
1x Plastic Feet with Screws
1x Manual
