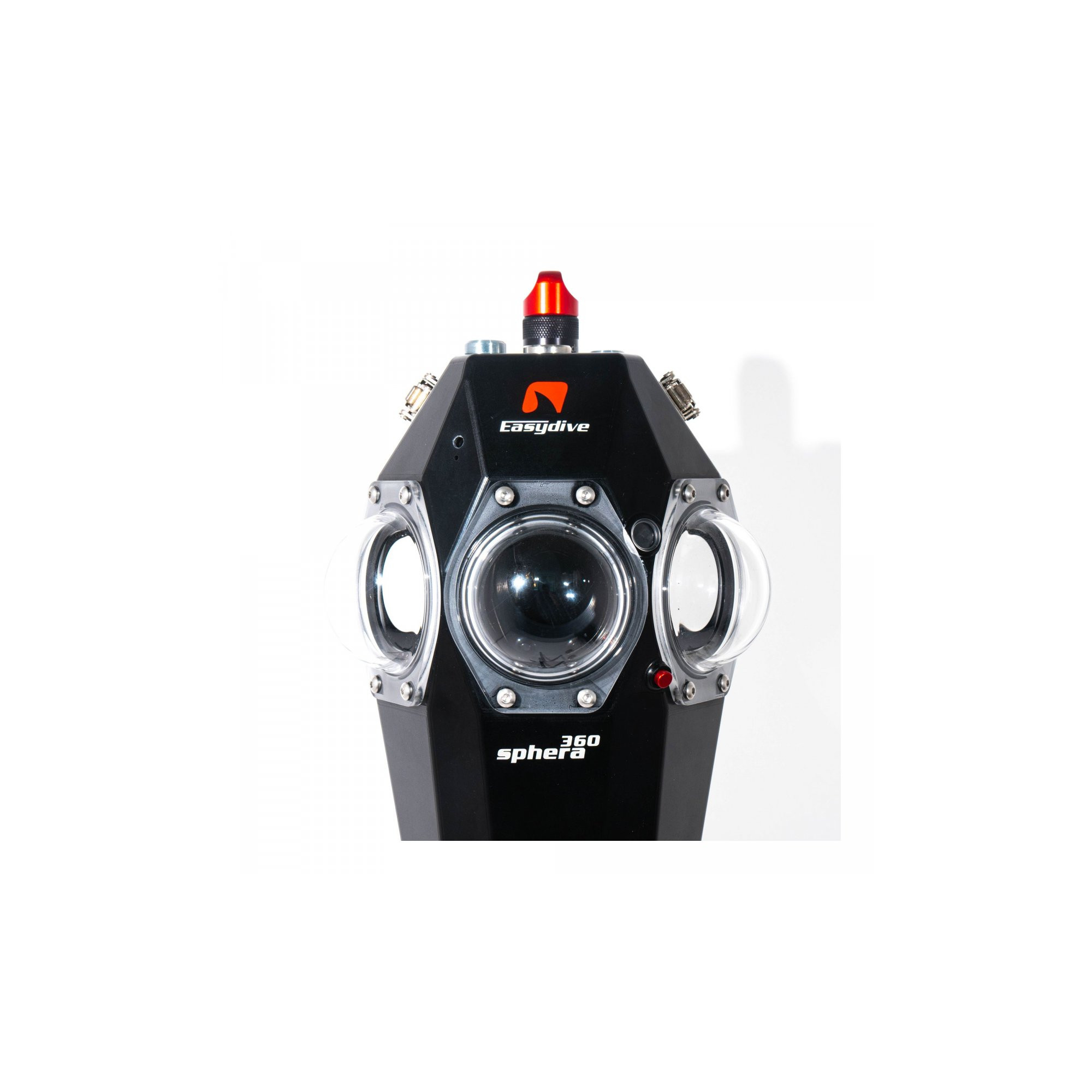

Sphera 360 Base Version

With Sphera 360 Easydive launches into the world of 360 VR.

The only case in the world guaranteed up to 150 meters deep.
This extraordinary case dedicated to the Insta360Pro 2, allows you to create 360-degree underwater images with very high quality.

Of course, all the technology that Easydive has patented over the years was used in its creation.

Sphera 360 "Basic":
This version includes the Sphera 360 case, including an additional internal battery (extra autonomy about 1 hour and 30 minutes), battery charger, 2 dome protection caps for mounting.

With this version, it will be possible to easily apply a telescopic pole and control the start of the recording or take a 360 photo using the on / off button.
In the water the case is almost neutral so you can easily hold it underwater to create incredible images.

The case is made of 2 blocks of aluminum, with double sealing o-rings for maximum guarantee, and allow use up to a depth of 150m.

To have the maximum yield for all the cameras, 6 plexiglass microdomes have been applied that derive from the technology for the DSLR and Mirrorless cases.

The closing system takes place via 4 stainless steel hinges.

Externally there are also 1 mechanical ignition button with double o-rings and 1 small plexiglass window that allows you to view the internal display of the Insta360Pro 2.

On the upper part of the case there are 12 threaded holes M6, 2 zincs that serve to protect the case from corrosion and galvanic currents, in addition there are also 2 M14x1 plugs, these are predisposed to be able to install various optional ex: vacuum system, video output on the surface, hydrophone etc.

In the lower part of the case there are 10 M6 threaded holes, in addition there are 2 M14x1 caps, for the Silver and Gold version there is a fischer panel connector in one of these predispositions that allows the connection via antenna cable to the Leo3smart case which will allow the management of the Insta360Pro app, the visualization of the cameras and allows access to the modification of parameters.

Inside the case there is an antenna to amplify the wi-fi signal for the control and vision of the Insta360Pro 2 via the smartphone, 1 additional battery that serves to power the Insta360Pro 2, 1 camera fixing system that takes place via 1 slide and 1 locking knob.

Included in the price is a battery charger and the additional internal battery of 12.8V and 3.3 Ah, which serves to provide additional power of about 1 hour and 30 minutes to the Insta (in addition to its internal battery).

Commands:

The new Sphera 360 case as described above, has only one mechanical control to manage the switching on and off, through the same command it is possible to start video recording or take photos, this according to how the Insta360Pro 2 is pre-set . (BASIC version)

For the Silver and Gold version, the command management takes place entirely via wi-fi by connecting the Sphera 360 case to a Smartphone case (Leo3 Smart) via a connection cable that has a standard length of 2.5 m (but which on request it can be changed).

The control of the Insta Pro2 takes place using its original APP, it will be possible to switch from photo to video underwater, check the framing and lighting, change all the various parameters that the app allows, all while looking at the screen of one smartphone.
