QD-30PD

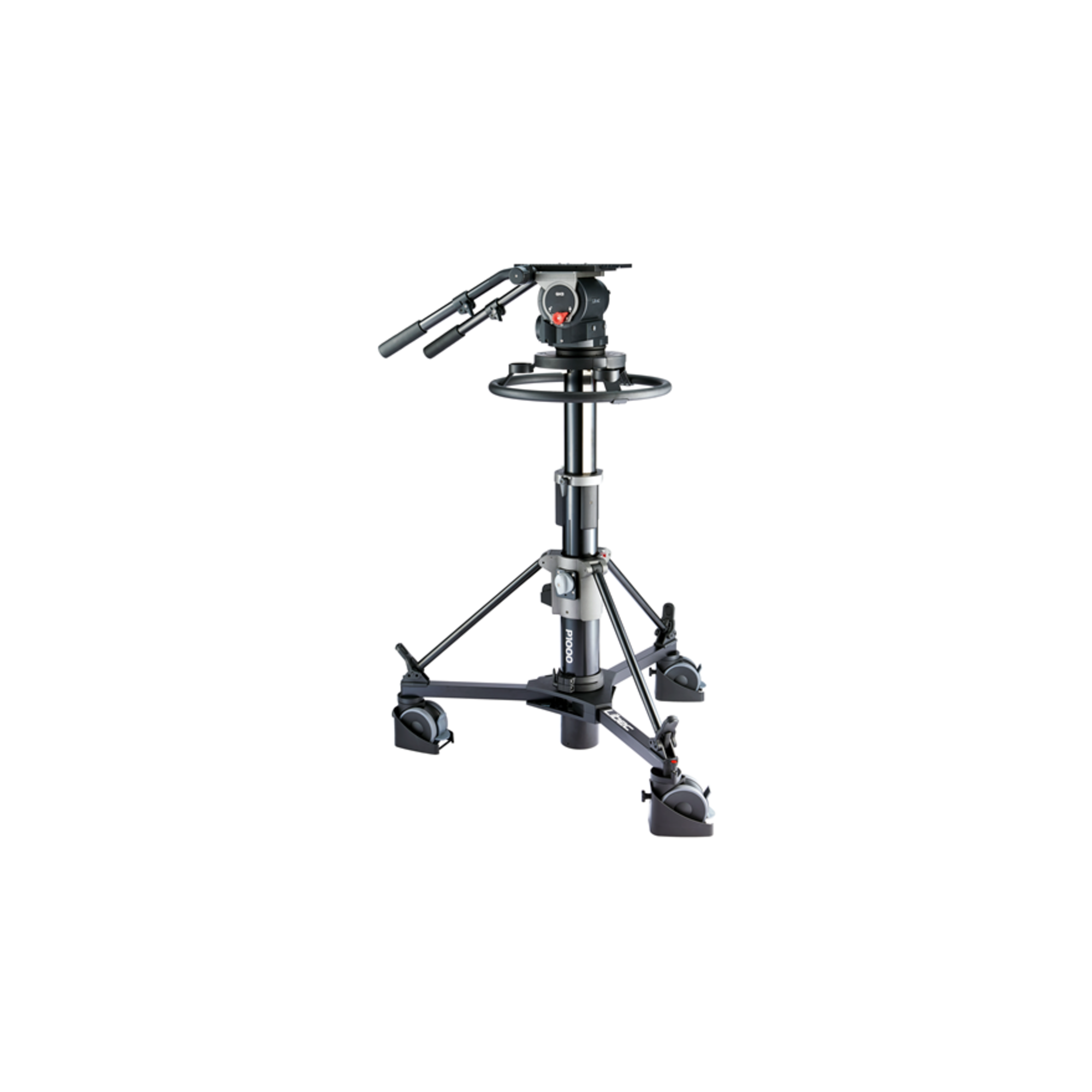

Pedestal System QD-30PD
Pedestal P1000 with QH3 head
Upper Column with Perfect Balance Feature
Mid Column with Gas Spring Assist: The gas spring inside the P1000 pedestal supports the mid column's elevation, allowing safe and easy height adjustments and setups with heavy equipment.
Removable Structure: for Easy Transportation The P1000 can be easily disassembled into the P1000 Column, the steering handle, and the dolly. This makes the P1000 easy to transport within studios and outside broadcast sites.
High Performance Casters: with Track Lock Mechanism The high performance 125mm large casters are equipped with removable cable guards. The casters has a track lock mechanism which allows users to set and move the dolly in three different modes: Free Mode, Tracking Mode, and Steer Mode. The caster's locking sound is minimal.
Easy-Read Air Pressure Meter: Air pressure can be easily checked with the air pressure meter.
Flat Base with High Compatibility: Not only compatible with Libec heads but other brand heads as well. With optional accessories, ball based heads can also be attached on this pedestal.

Payload 47kg / 103.4lb
Weight 39.0kg / 85.8lb
Height 91.5 to 173cm / 36 to 68.0"
Head Attachment Flat Base with 4 bolts
Column 2STAGE


System components
Head: QH3 Pedestal: P1000
Operation manual
QH3 P1000
Specification sheet
QH3 P1000
Service parts
QH3 P1000 Column
PH-15B DL-15B
