FSB 4 0307

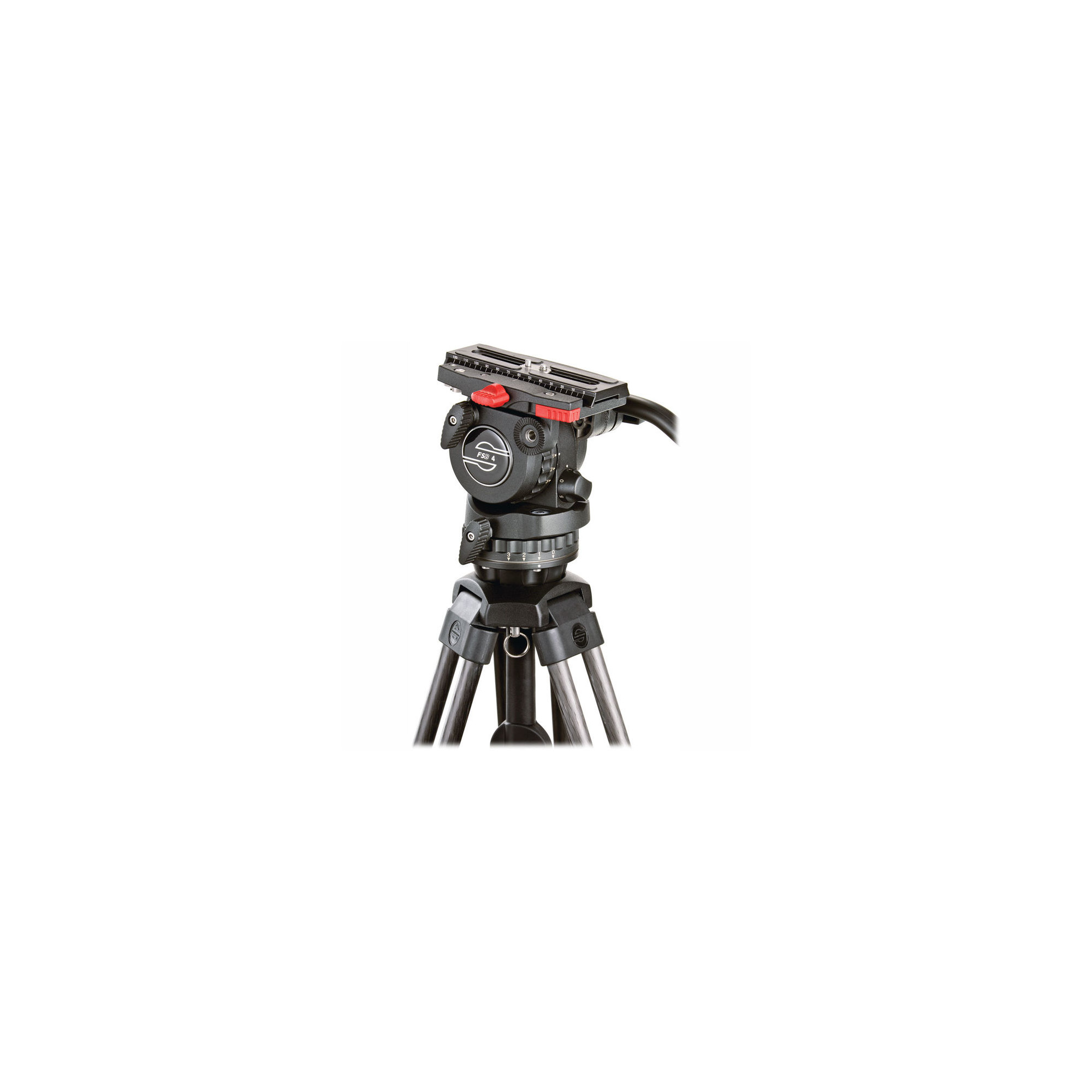

With its 8.8 lb capacity and compact size, the Sachtler FSB 4 Fluid Head is ideal for supporting small handheld camcorders and video-enabled DSLRs. As the only head in its class to feature Sachtler''s Snap & Go sideload mechanism, the FSB 4 boasts an exceptionally large sliding range of 120mm (4.7"). Along with a 5-step counterbalance, this ensures extremely quick and precise balancing. At the same time, no-compromise vibration damping allows for extremely subtle and finely graded movement.

Long sliding range of camera plate

Robust, metal housing

Tested Speedbalance technology

Totally compatible with SOOM and the Sachtler FSB CELL



Load Capacity 8.8 lbs (4kg)
Diameter/Thread 75mm Bowl/Flat Base
Counter Balance System 5 Steps
Counter Balance Range 4.7" (120mm)
Quick Release/Wedge Plate Yes
Balance Plate Sideload Plate S
Tilt Drag 3 Steps
Tilt Range +90° to -70°
Tilt Lock Independent
Spring Loaded Counter Balance 3 Steps
Pan Range 360°
Pan Lock Independent
Leveling Bubble/Illuminated Yes/No
Temperature Range -40° to +140°F (-40° to +60°C)
Height 6.4" (16.3cm)
Weight 4.2 lbs (1.9kg)
Packaging Info
Package Weight 8.0 lb
Box Dimensions (LxWxH) 18.1 x 10.0 x 8.4"
