Autocue

5060896406503
Pioneer 19" Studio Box Lens Teleprompter System - P7010-0901
go to the technical sheet
  • New
₦ 5,092,857.00

₦ 4,737,541.05 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

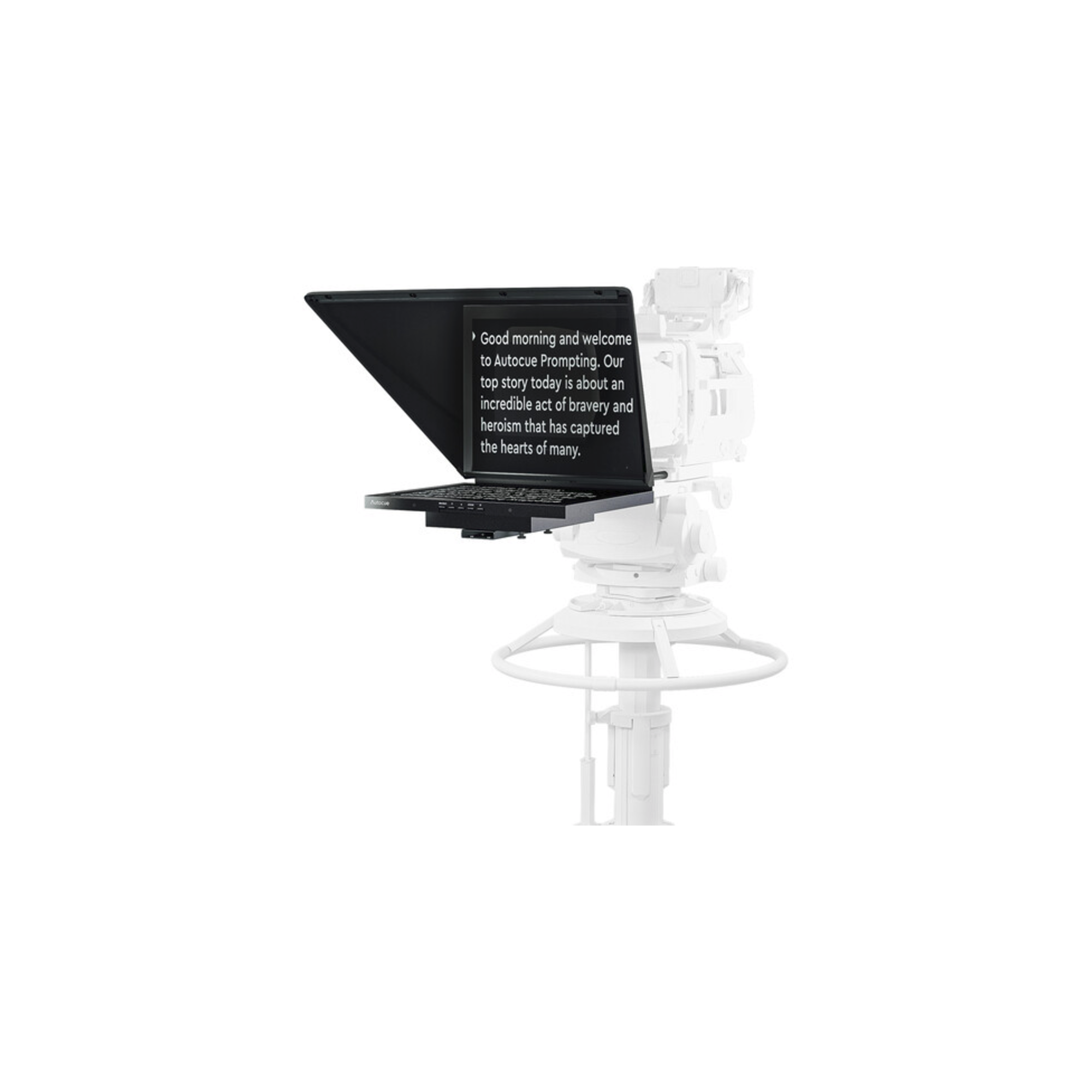

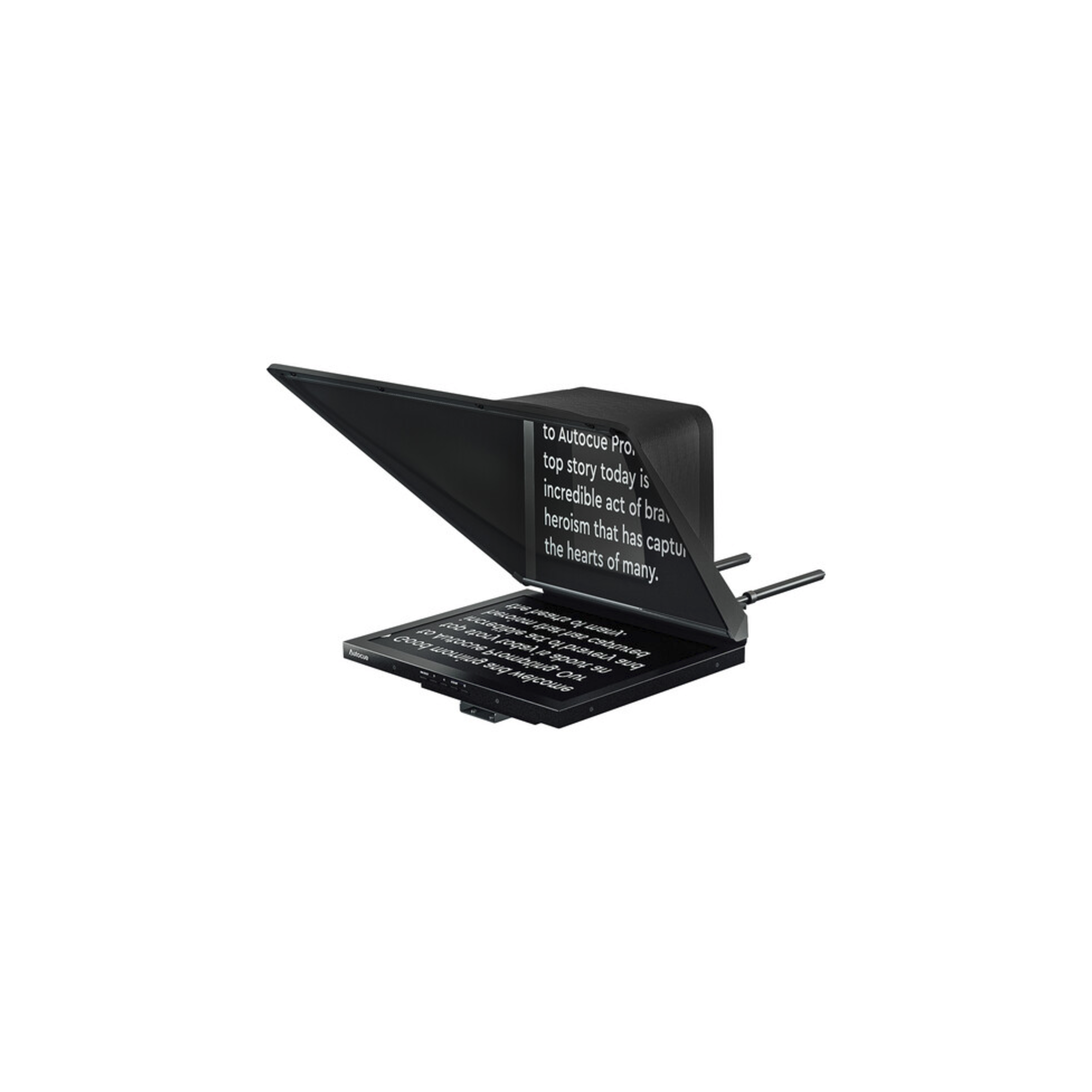

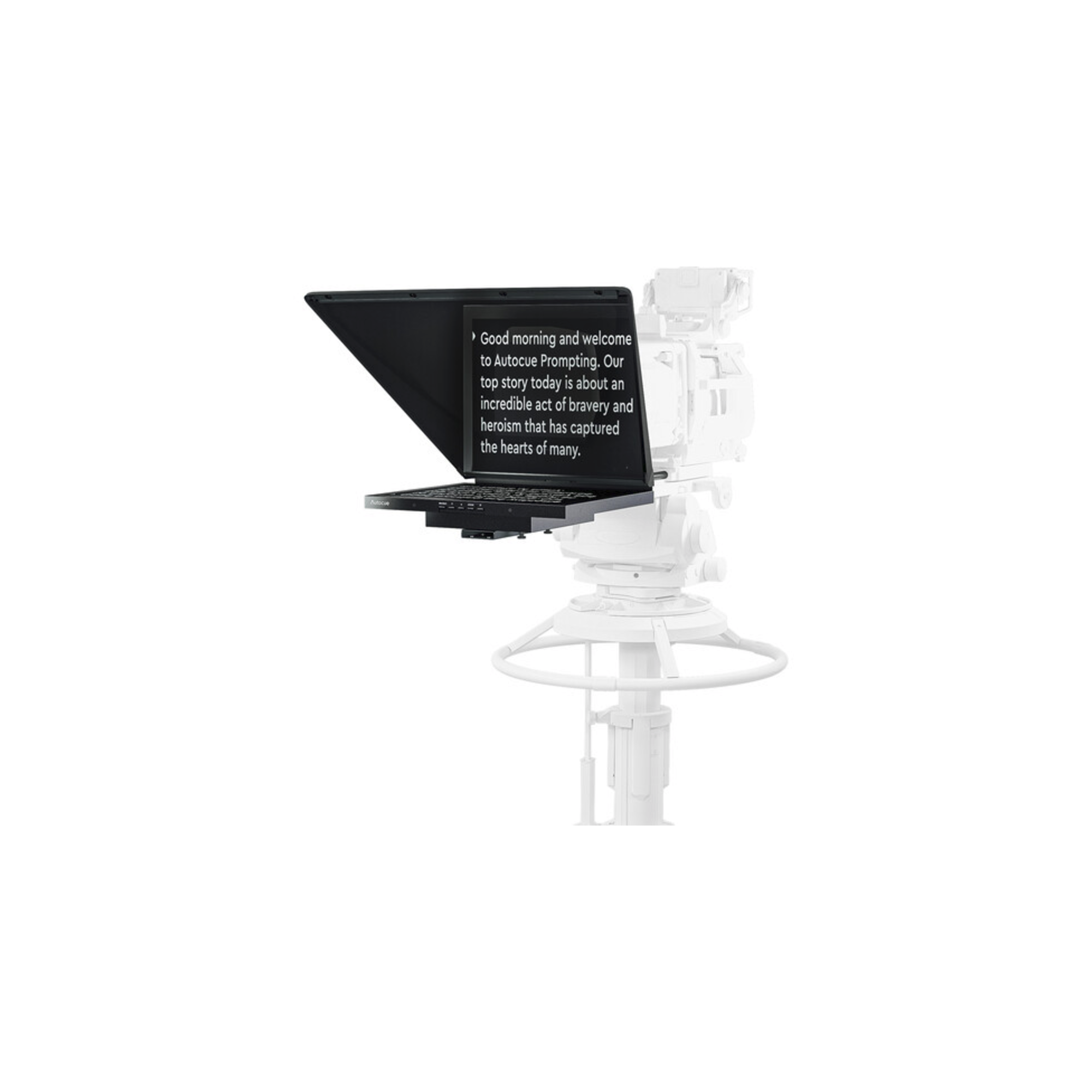

Autocue Pioneer 19" Studio Box Lens Teleprompter System, Max. Brightness 1500 nits / cd/m2 - P7010-0901

Designed for heavy-duty camera setups, the Autocue Pioneer 19" Studio Box Lens Teleprompter System features a large, high-bright monitor and accommodates large box-style studio lenses thanks to its included accessories.
The 19" monitor features a 1500 cd/m² brightness and 1280 x 1040 resolution on a 4:3 aspect ratio display.
Its SDI, composite, HDMI, and VGA input connections make for flexible integration with your preexisting broadcast devices, and an included HDMI cable can connect your laptop to the system right out of the box.
Additionally, SDI and composite loop-through outputs offer expanded connectivity.

The studio lens hood assembly has a bigger opening and black cloth interior for compatibility with large box lenses while preventing light leak into the 70/30 Beamsplitter glass reflection. Telescopic rods with a 9.3" total adjustment allow you to mount the system in front of a pan/tilt camera head and move the prompter independently to avoid heavy lifting.
The system has a total vertical adjustment of 3.5" for further fine-tuning.
The monitor supports vertical and horizontal image flip.




General
Beamsplitter Ratio: 70/30
Beamsplitter Material: Glass
Anti-Reflective Coating: Yes

Monitor
Size (Diagonal): 19" / 48.3 cm
Maximum Brightness: 1500 nits / cd/m2
Native Resolution: 1280 x 1024
Aspect Ratio: 4:3
Contrast Ratio: 1000:1
Inputs/Outputs:
- 1x SDI Input
- 1x SDI Output
- 1x Composite Input
- 1x Composite Output
- 1x HDMI Unspecified Version Input
- 1x VGA Input
Self Reversing: Yes
Input Power: 110 to 240 VAC, 50 / 60 Hz
Power I/O: 1x Proprietary Output
Output Voltage: 12 VDC at 3 A
Power Consumption: 35 W
Dimensions: 16.5 x 14" / 420 x 356 mm
Weight: 9.7 lb / 4.4 kg

1x Pioneer 19" Studio Box Lens Teleprompter System
1x Pioneer 19" High-Bright Multi-Input Monitor
1x Studio Lens Hood Assembly
1x Mounting Bracket
1x Monitor Spine
1x Telescopic Rods
1x Beamsplitter Glass
1x HDMI to HDMI Cable for Teleprompters (32.8'')
1x IEC Power Cable
1x Power Supply
