LC-170 OS

Name: LC-170 OS
Brand: Mirror-Image
SKU: LC-170 OS
Price: 5316.87 EUR
Availability: OutOfStock

Mirror-Image

Teleprompter with display LCD17" (SDI/HDMI) 1000 nits indoor e outdoor

go to the technical sheet

€ 5.316,87

€ 4.945,93 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

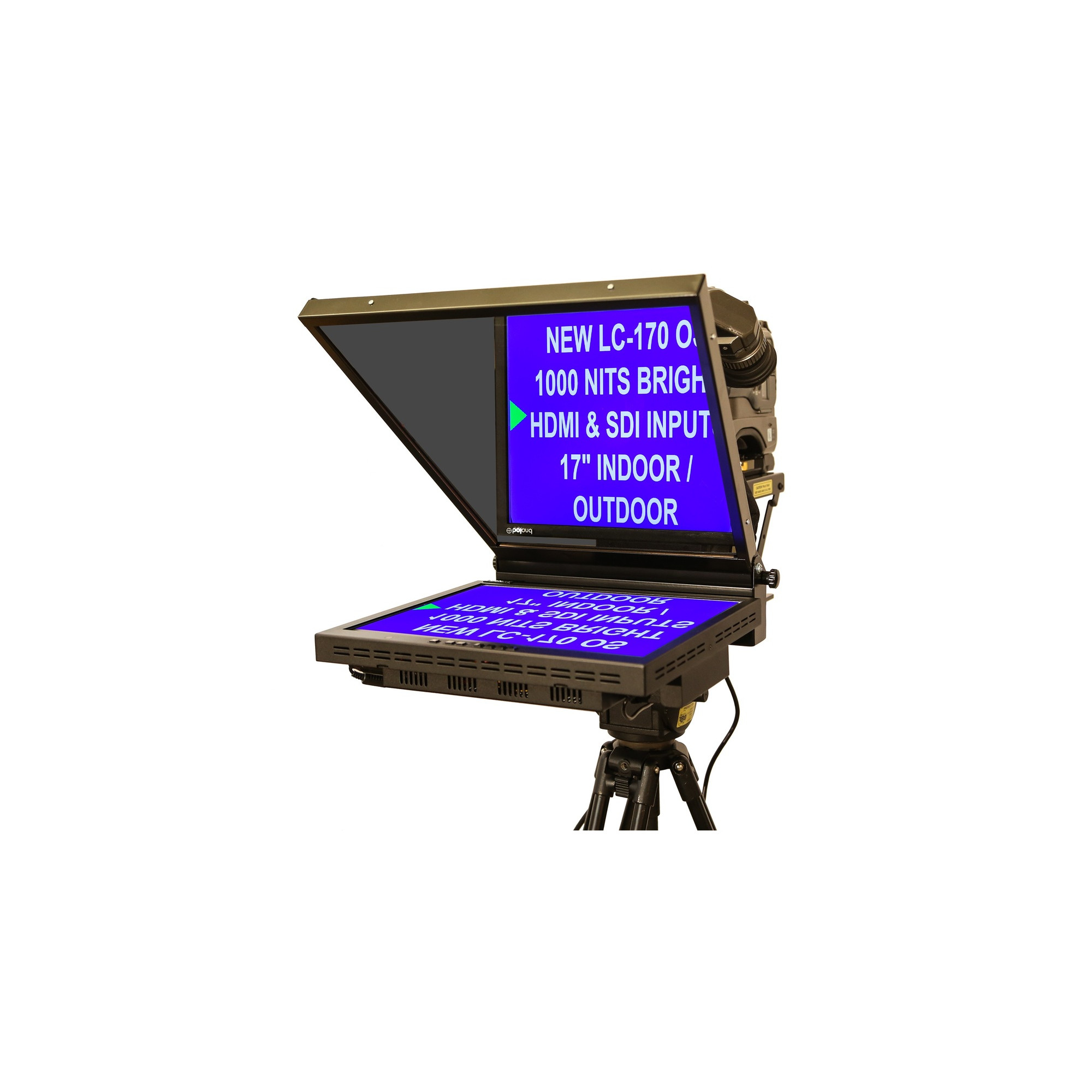

The all new LC-170 (OS) is a 17" DayBright LCD teleprompter that offers variable brightness to 1000 nits which is enough to handle the effects of OutSide lighting conditions without washout on the screen.
In addition to the high-bright rating, the new LCD has inputs for HDMI / SDI / VGA /Compiste BNC.

Teleprompter supplied with display LCD17" res. 1920 x 1080 up to 1280x1024, large beamsplitter mirror with antireflectant coating on camera side, adjustable height camera
platform, all aluminium, EZ Prompt Software included. The monitor has standard input connections for VGA/SVGA high-quality video signals direct from your computer via a 15-pin cable or composite video signal including NTSC/PAL. But also features HDMI & SDI inputs for the latest in studio configurations. These monitors can reverse the image left to right from within. Universal power 110/220 volts AC or 12 volts DC. Large 20" trapezoidal hood. No counterweight required. The camera mount is designed for most of today's ENG/EFP cameras.

Specifications LC-170 OS
================
° Viewable Size 17"
° Brightness 1000 NTS
° Signal Input SVGA / Composite Video NTSC-PAL / SDI / HDMI
° Video Input Impedance 1Volt P-P 75 ohm
° Input Voltage 100-240 VAC
° Resolution 1920 x 1080
° Power Consumption 12-65 Watts
° Input Connector BNC loop through and 15-pin D-type / HDMI
° Weight 8,5 Kg

Specifications LC-120 OS LC-160 OS LC-170 OS
Viewable Size 12 in. 15 in. 17 in.
Brightness 1000 NTS 1000 NTS 1000 NTS
Signal Input HDMI /SDI / VGA Composite video HDMI / SDI / VGA Composite video HDMI / SDI / VGA Composite video
Video Input Impedance 1 VP-P (Composite) 75 Ohm 1 VP-P (Composite) 75 Ohm 1 VP-P (Composite) 75 Ohm
Input Voltage 100 to 240V auto 60/50 HZ 0.8 Amp max or 12 V DC/3.5A 100 to 240V auto 60/50 HZ 0.8 Amp max or 12 V DC/3.5A 100-240V
Resolution 1920×1200 1920×1200 1920×1200
Power Consumption 23 W 25W 38 W
Input Connector BNC loop though 15-Pin D-type HDMI BNC loop though 15-Pin D-type HDMI BNC loop though and 15-Pin, HDMI
Special Controls H/V Size and Position Scan Reverse H/V Size and Position Scan Reverse Variable Brightness / Scan Reverse
Weight 13 pounds 17 pounds 18 pounds
