RED Komodo Cage Kit

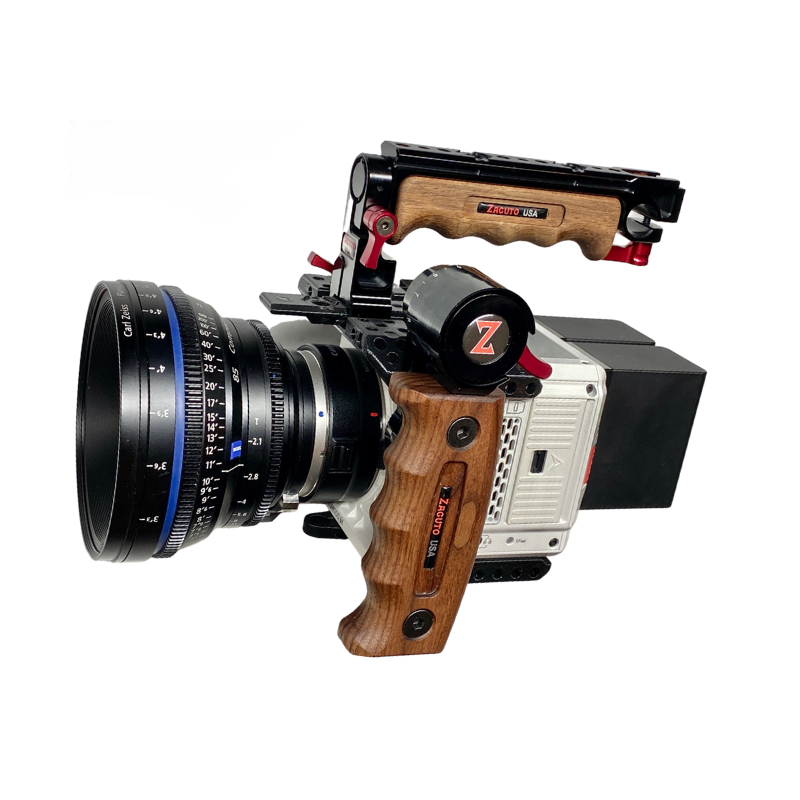

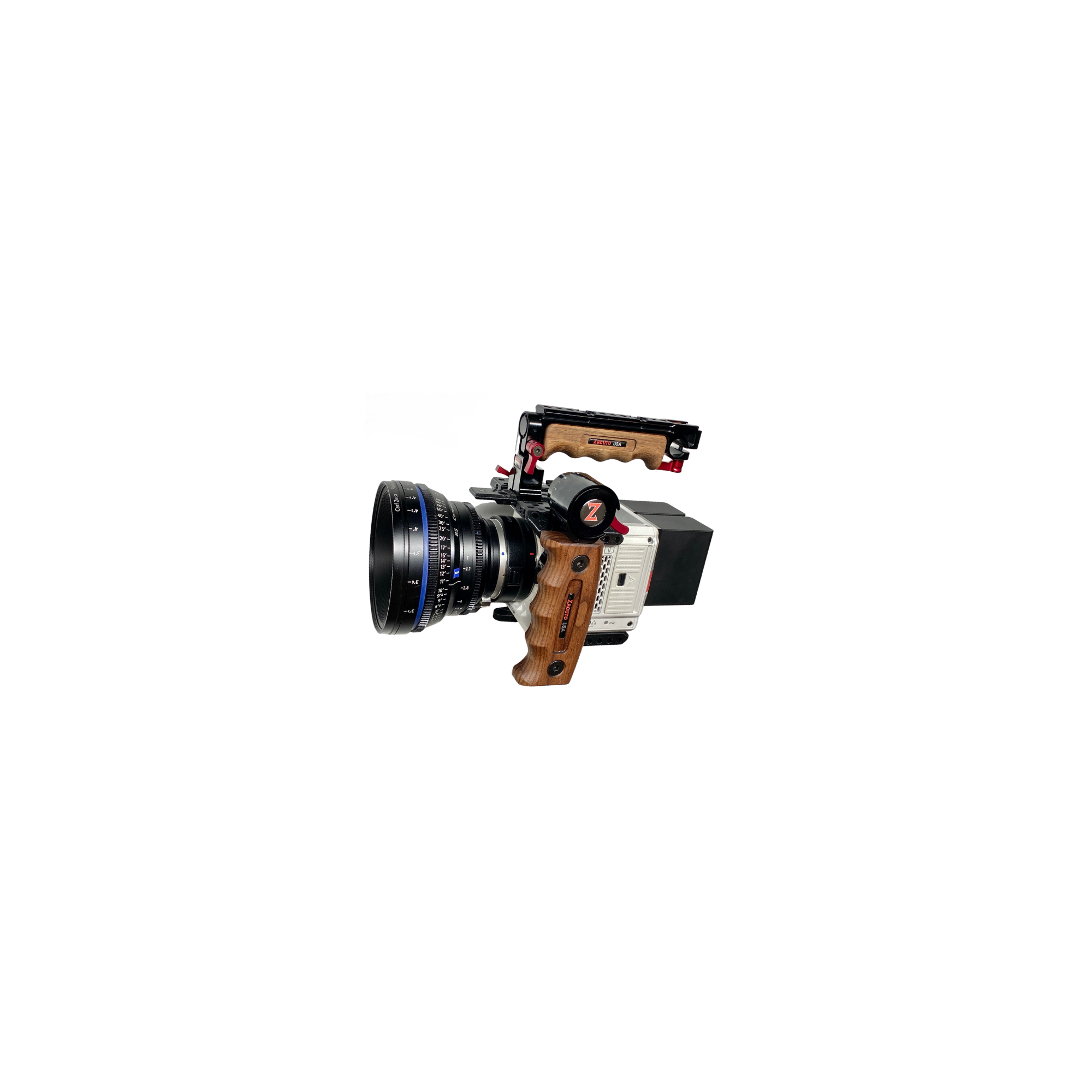

The RED Komodo cage is a very modular design. You can use each part individually or in any combination. This sku is for the entire cage plus the Tactical Handle and the Trigger Handgrip. The cage includes a top plate, two sides and a bottom.

The top plate has integrated Z-Rail (NATO rail) for quick mounting rail based top handles, arms, monitor mounts, etc. It has a flush top for mounting other accessories across it plus 1/4" 20 and Arri style 3/8" 16 threaded holes on top and sides. There is also a provision for mounting two 15mm rod locks for rods to support focus motors and other top mounted rod accessories.The two independent side rails are Z-Rails (NATO) featuring two Arri M6 rosettes top and bottom and an Arri 3/8 16 tapped hole. 3 types of mounting styles.The bottom plate has an integrated Arca Swiss style locking wedge, an integrated and adjustable 1/4" 20 screw support for lens adaptors and 1/4" 20 threaded holes on the sides.The cage protects the corners of the camera body. It is very ergonomical and low profile. Super light weight from use of aircraft aluminum.

The Tactical handle can be a top handle, left hand grip, or right hand grip with the twist of a lever- use it where you need it for your shooting style. The slim design fits comfortably in your hand. Along the top is a Z-Rail (NATO rail), giving you multiple ¼ 20 screw holes for mounting accessories like an Atomos Recorder or small monitor with our Universal Monitor Mount. It also has a coldshoe mount and 15mm rod port for mounting additional accessories like one of our Axis Mini or Axis Micro, EVF Mounts.

The Rosette Trigger Handgrip is a very compact low profile trigger grip that rotates 360 degrees with a simple press of a lever- rock solid. It attaches to an Arri M6 Rosette, located on teh side plate of the cage.

Build your cage and rig how you want with our cage. If you want to build a shoulder rig, slide the cage into our ACT Baseplate.

Recommended Accessories:
ACT Mounting Plate- can slide cage into this plate quickly on a tripod, gimbal, slider, etc.
