FX6 Unified Accessory Advanced

Top Plate for Sony FX6
Unified Baseplate with 15mm Rod Clamps
15mm Rod Pair, 12" Long
8" Long Safety Dovetail Plate

The advanced configuration of Wooden Camera's Sony FX6 Unified Accessory Kit provides accessory mounting points, a baseplate system with a sliding Arca-Swiss baseplate and integrated 15mm LWS rod clamps, a pair of 12" long 15mm rods, and an 8" long dovetail plate. This system allows you to configure and expand your system as your needs evolve. The top plate attaches to your FX6 camera and provides 1/4"-20 threaded holes, as well as 3/8"-16 threaded holes with ARRI-style anti-twist divots.

The baseplate features an ARRI-compatible dovetail slot and a short dovetail plate. It allows you to mount your camera on a variety of tripods and supports and quickly pull the camera off the tripod, leaving behind the rod clamps that support lens accessories, such as follow focus units and matte boxes. The camera plate utilizes an Arca-Swiss compatible design allowing you to quickly transfer the camera from the tripod to another support that accepts an Arca-Swiss baseplate. An integrated vertical 15mm rod clamp can be used to support an optional lens adapter foot. The dovetail plate can be mounted on a tripod and the included baseplate mounts on that. The additional length provides greater balance opportunities than the short plate that comes with the baseplate itself.

Key Features

Supports 15mm LWS rods at the correct lens height
Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
Two quick release options—remove Core Unit or remove Dovetail Camera Plate
Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
Anti-twist, non-slip rubber surface
Upgradable for VCT-14 compatible mounting options
Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
Backward compatible with original Wooden Camera Quick Dovetail

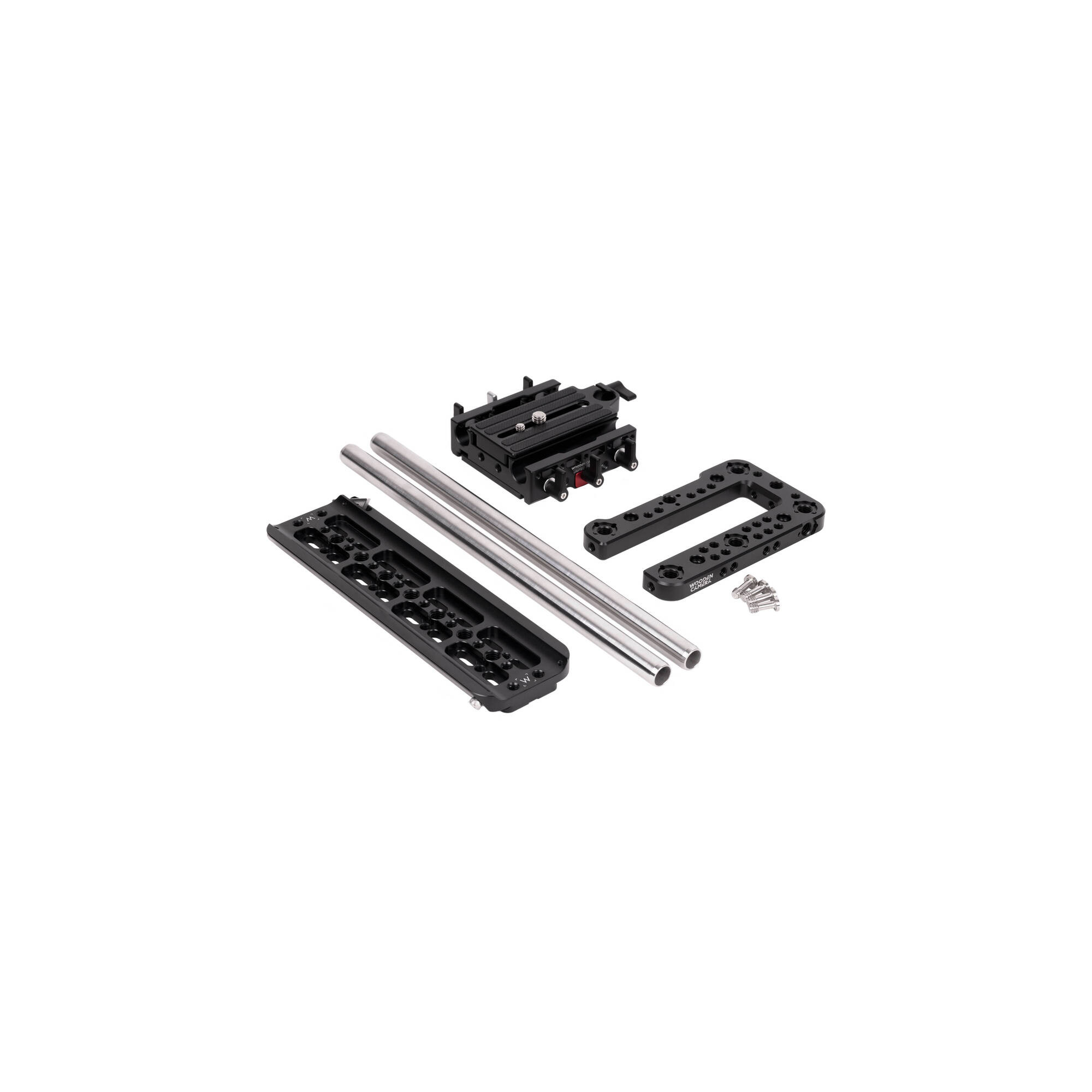

In the Box

Wooden Camera Unified Baseplate for URSA Mini, F55, F5
Wooden Camera Unified Baseplate Core Unit (No Dovetails)
Wooden Camera Unified Baseplate Camera Dovetail Plate for URSA Mini, F5, F55
Wooden Camera Unified Baseplate Lower Quick Dovetail

Wooden Camera Top Plate for Sony FX6
4 x Mounting Screw

Wooden Camera 15mm Support Rod (12")

Wooden Camera Safety Dovetail Plate (8")
