FX3SM

Shape Shoulder Mount for Sony FX3

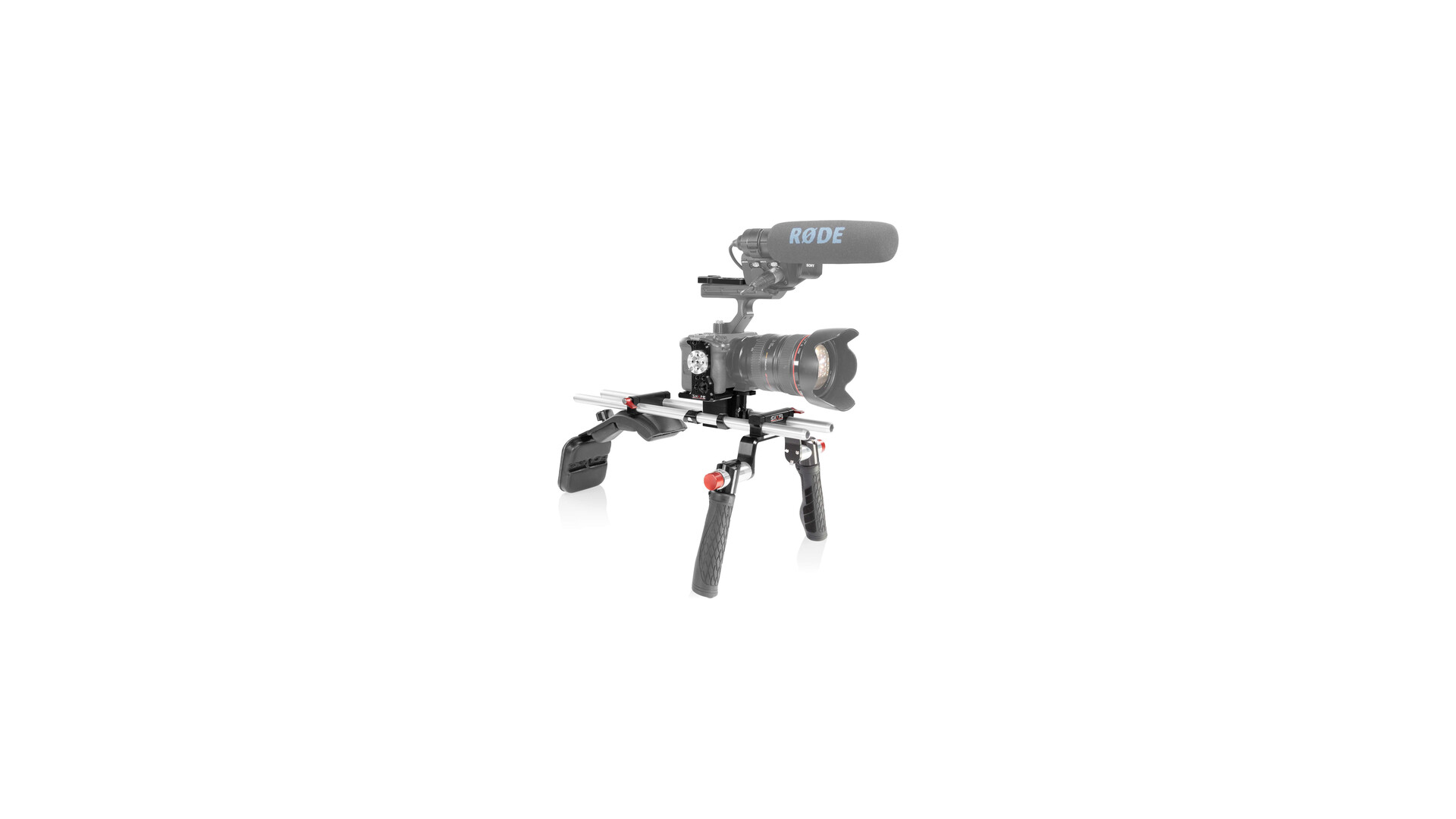

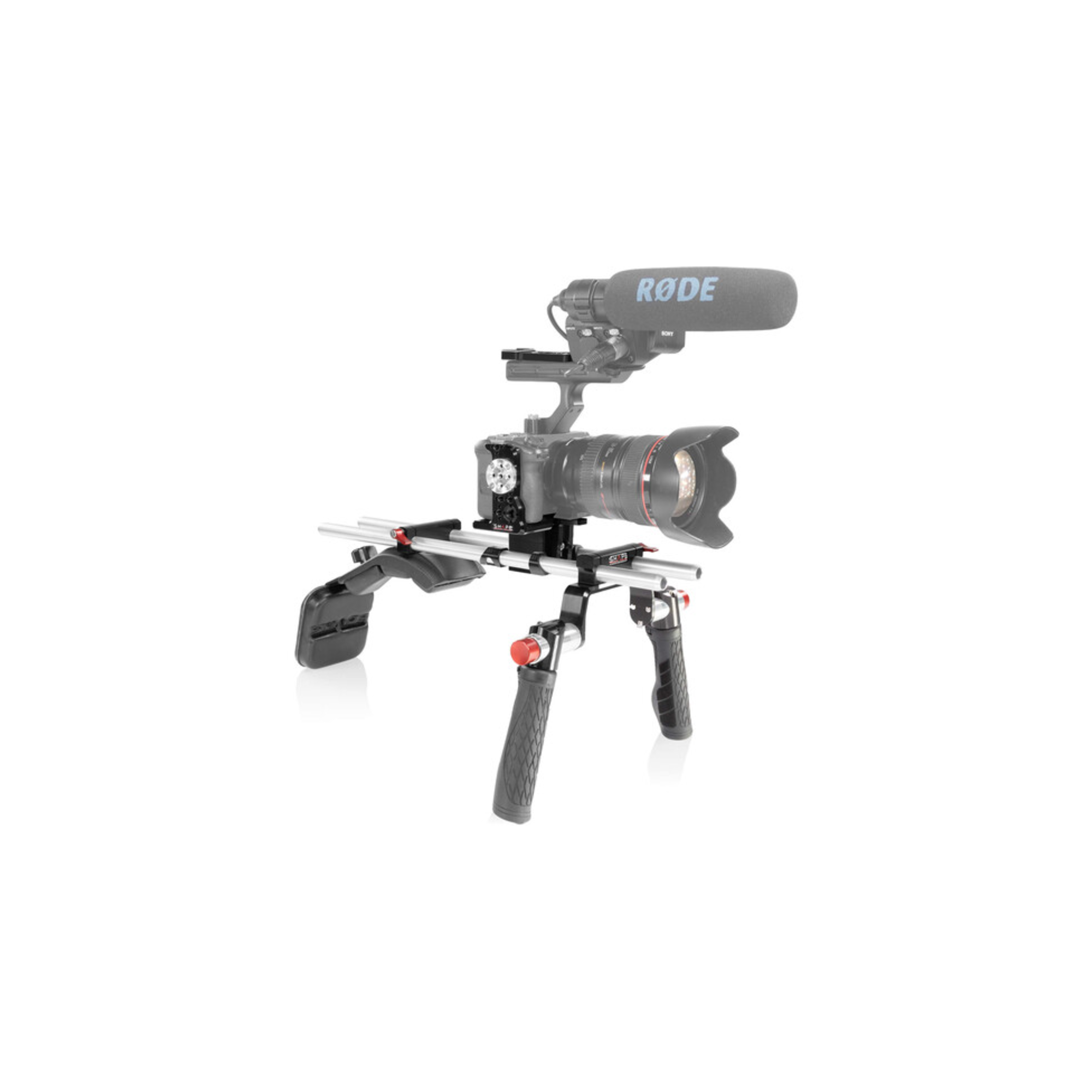

The SHAPE Shoulder Mount outfits your Sony FX3 camera with a half cage, 360° rotating handgrips, a 15mm rod system, and back and shoulder pads for the ultimate stabilization using your body's natural anchor point.
The lightweight aluminum cage's numerous 1/4"-20 and 3/8"-16 threads can mount various accessories such as a secondary monitor, shotgun microphone, or wireless receiver onto the rig.
An additional cold shoe and included 15mm rods provide more accessory compatibility while attaching the cage to the included grips and pads, which can be adjusted for optimal balance.

Half Cage with Wooden Handle for Sony FX3
The SHAPE Half Cage with Wooden Handle protects your Sony FX3 camera while extending its mounting capabilities with a cold shoe, seven 3/8"-16 threads, and multiple 1/4"-20 threads, enabling versatile customization of your run-and-gun setup for field applications with additional monitors or microphones.
An ARRI rosette on the left side of the cage allows you to attach the included adjustable wooden handle to the rig for a more ergonomic handgrip.
To ensure unencumbered operation, the cage's design maintains access to the camera's controls and ports.
Attaching the factory handle of your camera is easy, thanks to the top plate's threaded ARRI hole patterns.
An included HDMI protector can be secured to the camera to prevent damage to your cable or connector port.
Fitting the cage to a quick release plate or DELTA adapter increases compatibility to tripods or shoulder mounts for further stabilization in the field.

SHAPE Quick Handle + Rod Block
The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°.
You can attach the handle to the camera platform using a simple screw knob.
A simple push button located at the articulation allows easy attachment and removal.
Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods.
You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block.
With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

Mini Composite Shoulder Pad
The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig.
Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever.
It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad.
The Screw Knob's screw is a 1/4"-20 screw.
If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.

Back Pad
The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs.
Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user.
The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment.
Additionally, the pad's position can be adjusted to the user's preference - up to 2" vertically and 360° horizontally.

15mm Rods (18", Pair)
These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories.
This pair of rods are approximately 18" long and machined from hollow aluminum tubes.
The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
