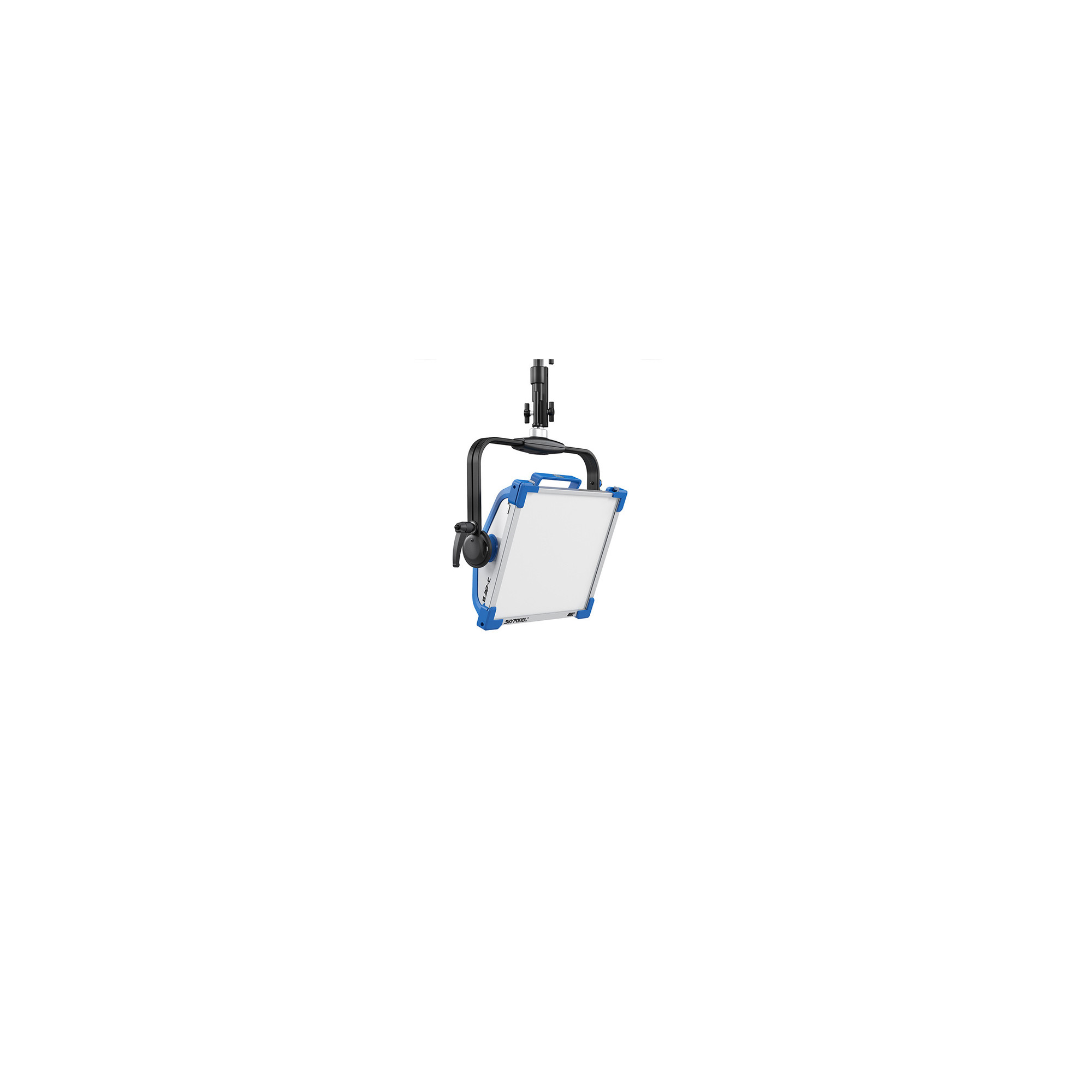

SKYPANEL S30-C

SkyPanel is available in three sizes: the S120, S60 and S30. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. Retaining the same features and color tuneability as its smaller counterparts, the S120 consumes less than 400 watts, yet it is slightly brighter than the S60-C and has an outstanding efficacy of 90 lumens per watt. The S60 is a mid- range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S60 and the S30 are available in fully color tuneable and remote phosphor versions.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 1 kW tungsten soft light or a 3 kW tungsten space light, the SkyPanel S30 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

SkyPanel Features

The SkyPanel Family. Different sizes for different applications.
The new ARRI SkyPanel is an exceptionally versatile LED soft light - compact, fully tuneable and delivering light of unsurpassed power and quality. Because different application areas call for different lighting needs, SkyPanel has been designed as a series of fixtures. The S60 is the mid-range model and the S30 is the smaller, more portable version. With SkyPanel, the sky is limitless...

Fully Tuneable. Get the color you want in seconds.
SkyPanel ‘C' (Color) versions have the ability to adjust the correlated color temperature anywhere between 2,800 K and 10,000 K, with excellent color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible.


Applications for this controllability range from quickly adjusting the CCT to set the mood of a scene, to selecting the perfect green color to wash a greenscreen. Each LED light engine is computer calibrated in order to ensure unit-to-unit and batch-to-batch consistency, as well as accurate color temperatures. The SkyPanel series of lights also works in concert with the L-Series, ARRI's LED Fresnel line, perfectly.

Tremendous Output. One of the brightest soft lights on the market.
High output is usually not associated with a fully tuneable LED fixture, but with the SkyPanel ARRI has been able to accomplish both. SkyPanel has tremendous light output across the entire CCT range. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. In some cases the fixture can even compete with natural sunlight; at the same time, it is able to perform beautifully at lower light levels.

True Soft Light Beam Quality.
Soft and uniform is the name of the game.
Soft lights are known for their smooth quality of light and even, uniform beam field - SkyPanel is no different. The combination of the curated selection of diffusion panels, LED mixing chamber and large light aperture allows for the light to wrap around objects, eliminating sharp shadows and making for a perfect beauty light. The beam field is homogeneous in both color and intensity.

Outstanding Color Rendition.

LED white light without sacrifices.

ARRI has always been at the forefront of LED white light color quality and SkyPanel lives up to this standard. Natural rendition of skin tones, accurate color reproduction and precise color temperature settings are all areas where SkyPanel excels. Whether you measure the color rendition using CRI (Color Rendering Index), CQS (Color Quality Scale) or TLCI (Television Lighting Consistency Index), SkyPanel performs beautifully.

A Single Soft, Clean Shadow. The proof is in the shadows.
SkyPanel perfectly mixes some 2,000 calibrated red, green, blue and white LEDs into one homogeneous beam of soft light. In addition to providing excellent light, the SkyPanel also provides excellent shadows. The shadows are soft in nature and do not exhibit multiple edges or strange colors, making SkyPanel one of the best LED soft lights for shadow rendition on the market.
