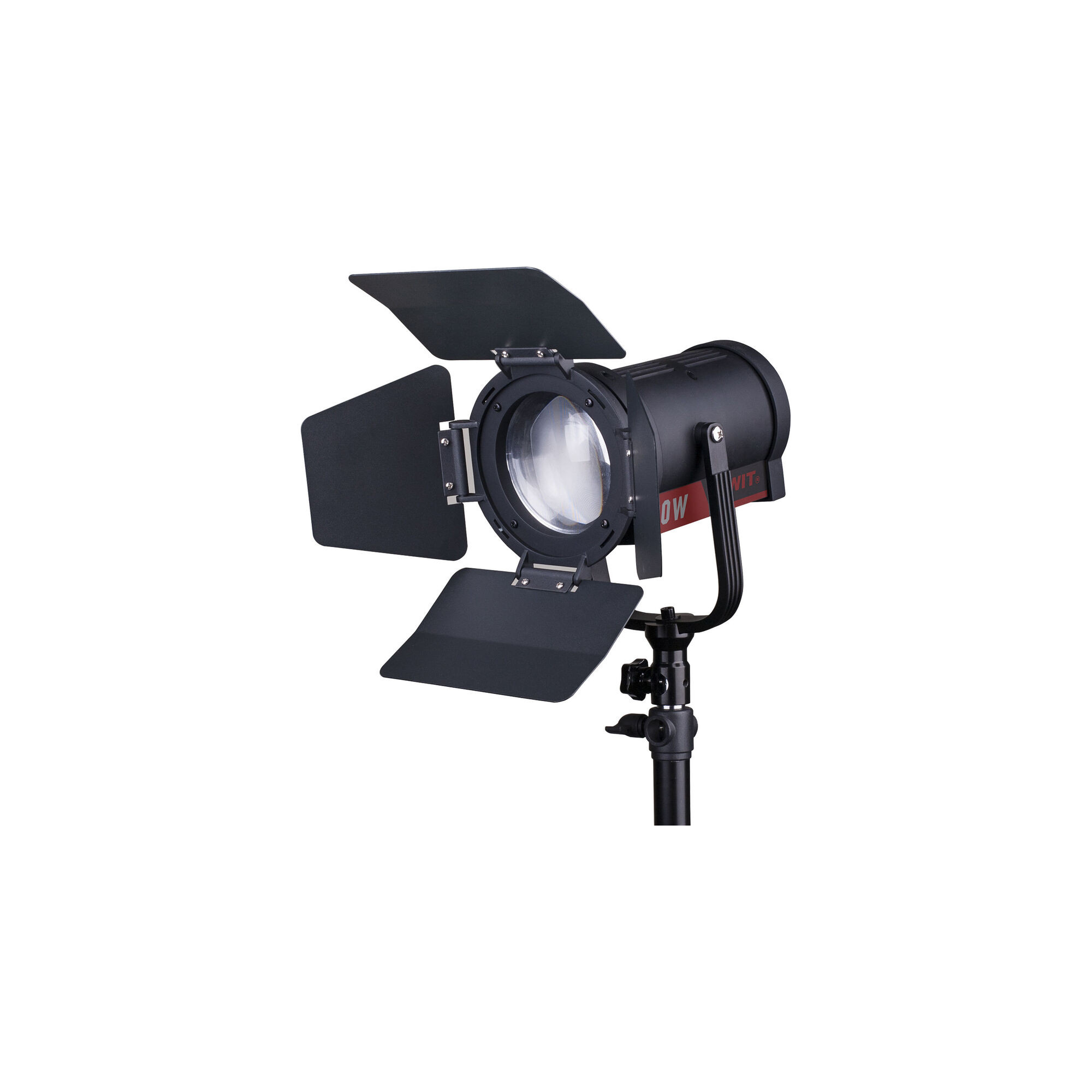

FL-C60D

FL-C60D portable LED spot light adopts Chip-On-Board LEDs of 50,000 hours lifetime, 60W power, bi-color, DMX adjusting focus angle, as the key light of interview light kit or field video productions.

Features:

- 60W super bright COB LED light
- 15°-60° Spot/Flood adjustable
- 2700K-8000K continuously adjustable
- 0-100% flick-free dimming
- Super high CRI Ra 95, TLCI 97
- DMX512 controlled color, dimmer, angle
- LCD display color, dimmer and DMX
- Silent mode by fans switching off
- LED overheat detection and protection
- 4-leaf metal barn doors
- U-shape and lighting stand mount

Bi-color temperature:
FL-C60D COB-LED alternated with 2700K and 8000K LEDs, and the output color temperature can be continuously adjustable between 2700K and 8000K.

Accurate Color Reveal:
CRI Ra 92, TLCI 96
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while FL-C60D offers the super high CRI at 92 and TLCI at 96, and will not lost the object original colors.

LCD Display and Control:
Press knobs to enter Quick Adjusting Mode
FL-C60D has 3 knobs to control dimmer, color temperature and spot angle. The Dimmer and Color Temperature knobs can be pressed down to enter quick adjusting mode, and long pressed down to enter DMX address setting and Fan on/off control.

Knob Dimmer Color Temp
Default 1% fine adjust 100K fine adjust
Press 10% quick adjust 2700K/3200K/4500K/5600K/
Long Press DMX address DMX address set Fan ON/OFF switch *

* The dimmer will be limited to Max 50% if the fan is turned off.

DMX512 Channels:
Dimmer, Color temperature and Spot angle
FL-C60D adopts standard 5-pin DMX input, supports DMX512 protocol, and adjusts dimmer, color temperature and spot angle by DMX controller.
FL-C60D occupies 3 DMX addresses:
n = Dimmer 0-100%
n+1 = Color temperature 2700-8000K
n+2 = Spot angle 15°-60°

Long press the Dimmer knob for 2 seconds, to enter DMX address setting.
