Arri

Light Weight Tungsten Fresnel - 650W /Schuko/Blue/Silver
go to the technical sheet
₦ 10,871,635.00

₦ 10,113,149.00 VAT excl.

Available in 8 days
Datasheet: Download
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

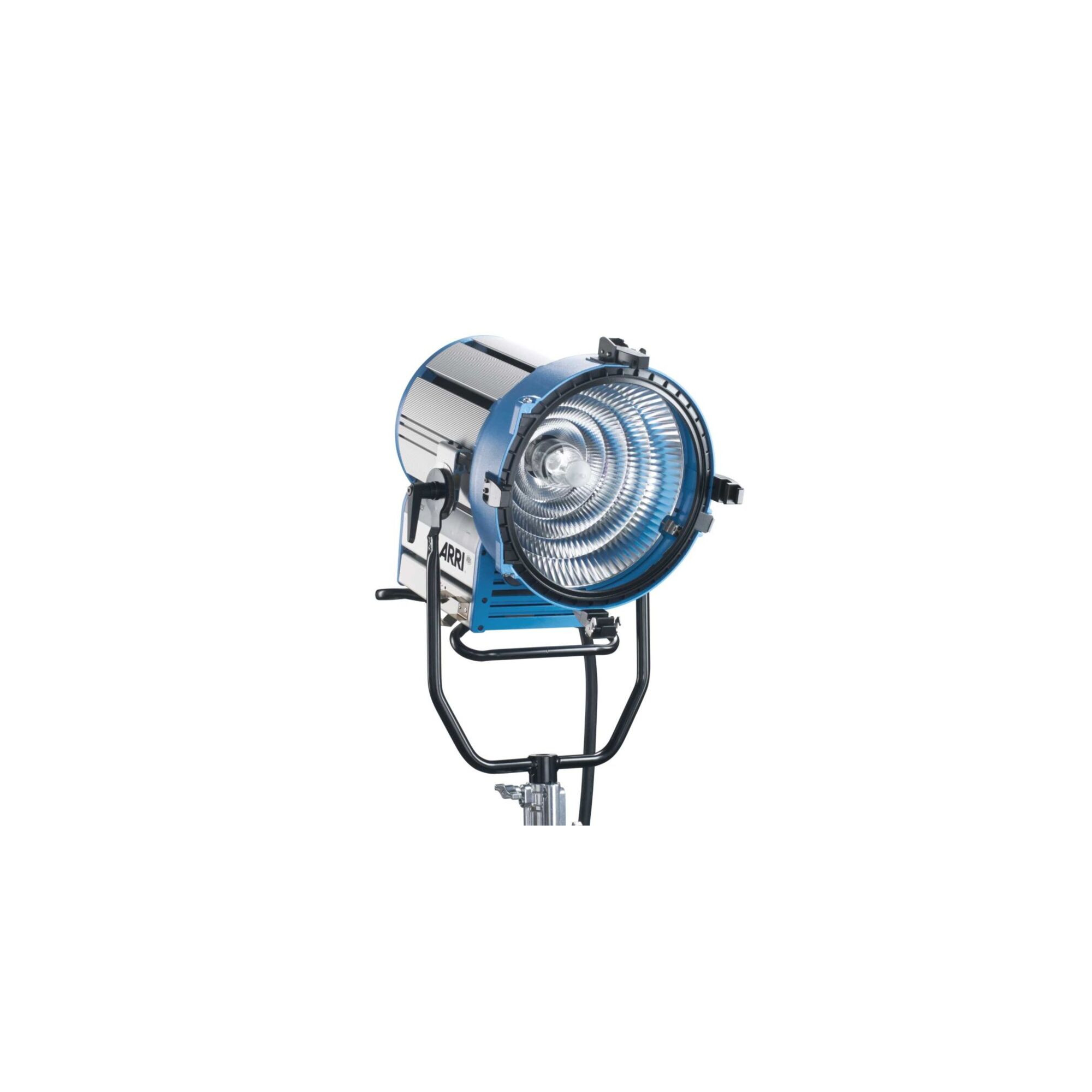

A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures. The unit is open face and thus very bright: around 30 % brighter than an AS40 in spot. Due to its unique, patented MAX Technology reflector, it is also focussable over a range of 18 to 52° Half Peak Angle. The M40 gives a remarkably even beam spread that casts crisp shadows over the whole focus range. The reflector characteristics is optimised for 4,000 W lamps, but can also be used with 2,500 W lamps.

The lamphead is equipped with a CCL module (Compensation of Cable Losses). When operated with the ARRI EB 2.5/4 kW High Speed AutoScan with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output indepent from cable length.

Code L1.37400.B


Lens-less MAX Technology: Easy to use
Around 30 % brighter than AS 40
Compensation for Cable Losses (CCL)
Tubular steel yoke
Two disk brakes with steel handles
Cross-Cooling allows safe operation at extreme tilt angles
Suitable for high frame rate images
IP Rating IP23

A1035CS
Avenger

A1035CS

₦ 1,087,845.00 VAT included
Available 2 unit in 4 Days
LT-240S
ON-AIR

LT-240S

₦ 189,306.00 VAT included
Available 6 unit in 4 Days
A2030DKIT
Avenger

A2030DKIT

₦ 741,695.00 VAT included
Available in 94 days
A2033FKIT
Avenger

A2033FKIT

₦ 714,229.00 VAT included
Available 1 unit in 4 Days
A0030CS
Avenger

A0030CS

₦ 610,653.00 VAT included
Available 2 unit in 4 Days
A0010
Avenger

A0010

₦ 483,158.00 VAT included
Available 1 unit in 4 Days
A2030DCB
Avenger

A2030DCB

₦ 626,240.00 VAT included
Available in 14 days
A1020CS
Avenger

A1020CS

₦ 841,563.00 VAT included
Available 1 unit in 4 Days
LT-385AB
ON-AIR

LT-385AB

₦ 221,503.00 VAT included
Available 1 unit in 4 Days
A1020B
Avenger

A1020B

₦ 890,690.00 VAT included
Available 1 unit in 4 Days
A2030DCBKIT
Avenger

A2030DCBKIT

₦ 779,643.00 VAT included
Available 2 unit in 4 Days
A2016D
Avenger

A2016D

₦ 572,114.00 VAT included
Available 2 unit in 4 Days
A2033L
Avenger

A2033L

₦ 557,548.00 VAT included
Available 1 unit in 4 Days
A4050CS
Avenger

A4050CS

₦ 1,552,675.00 VAT included
Available in 14 days
A2033LCB
Avenger

A2033LCB

₦ 582,434.00 VAT included
Available in 14 days
A5033
Avenger

A5033

₦ 791,683.00 VAT included
Available in 14 days
LT-385SB
ON-AIR

LT-385SB

₦ 384,849.00 VAT included
Available 3 unit in 4 Days
A2033LKIT
Avenger

A2033LKIT

₦ 864,944.00 VAT included
Available 1 unit in 4 Days
L2.41200.0
Arri

L2.41200.0

₦ 379,313.00 VAT included
Available in 11 days
L2.75620.C
Arri

L2.75620.C

₦ 984,538.00 VAT included
Available in 11 days
L2.81210.0
Arri

L2.81210.0

₦ 605,116.00 VAT included
Available in 11 days
L2.81230.A
Arri

L2.81230.A

₦ 214,569.00 VAT included
Available in 11 days
L2.81230.B
Arri

L2.81230.B

₦ 223,814.00 VAT included
Available in 11 days
L2.81230.0
Arri

L2.81230.0

₦ 453,326.00 VAT included
Available in 11 days

Download

Datasheet

Download (320.97KB)


Series: M-Series
Model: M-Series M40
Mains Plug: VEAM, Schaltbau (GTV-Standard)
Lamphead Type: Open Face with Facetted Reflector, 2,500 / 4,000 W
Reflector: MAX Technology reflector made of high purity aluminium
Lamp Type: Metal Halide 4,000 W/SE; Metal Halide 2,500 W/SE
Power Consumption: 4,000 W / 2,500 W
Voltage Range:200 V / 115 V
Lamp Base: G38
Dimming: yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature: 6,000 K
Beam Angle: 18° to 52° (with 4,000 W lamp)
Weight in kg net: approx. 20.0 kg
Weight in kg packed: approx. 24.0 kg
Weight in lbs. Net: approx. 43.97 lbs
Weight in lbs. Packed: approx. 52.86 lbs
Measurements (HxWxL) incl. Pin in mm: 839 x 505 x 524 mm
Measurements (HxWxL) excl. Pin in mm: 706 x 505 x 524 mm
Measurements (HxWxL) incl. Pin in inch: 33.0 x 19.9 x 20.6"
Measurements (HxWxL) excl. Pin in inch: 27.8 x 19.9 x 20.6"
Measurements (HxWxL) Packed size in mm: 660 x 595 x 665 mm
Measurements (HxWxL) Packed size in inch: 26.0 x 23.4 x 26.2"
Lens / UV-Protection Glass Diameter in mm: 350 mm
Lens Diameter in inch: 13.8"
Accessory Diameter in mm: 400 mm
Accessory Diameter in inch: 15.8" (Scrim)
Barndoor in mm: 413 mm
Barndoor in inch: 16.3"
Mounting: Spigot 28 mm / 1 1/8" (1.1")
Housing Color: Blue/Silver
Protection Class / IP Rating: I / IP23
Certifications: CE, CB, GS, cNRTLus
