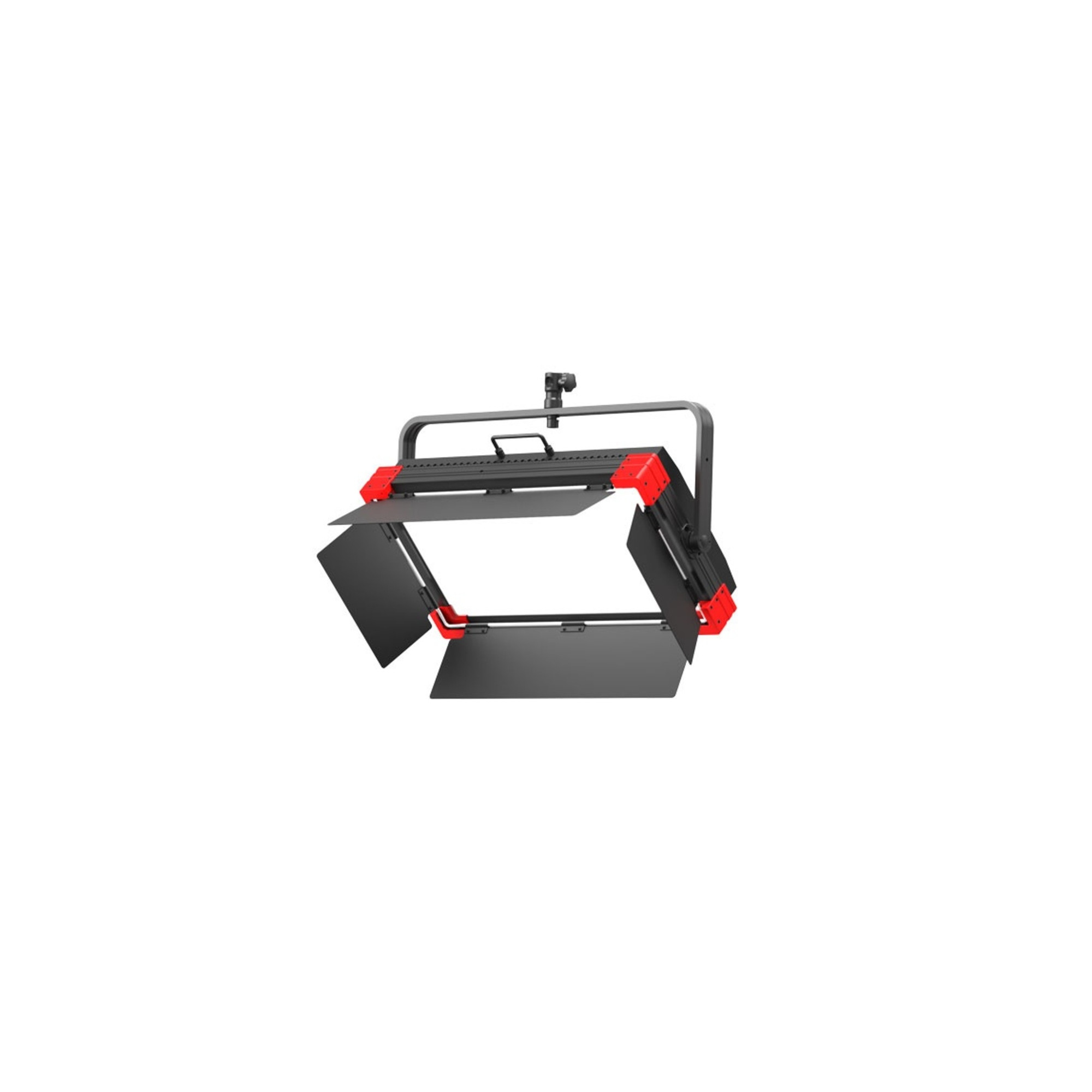

PL-S300D

Swit 300W Bi-color Studio SMD Panel LED Light, 2700K-6500K, 10,000Lux @ 1m, CRI 96, TLCI 99, SSI (D55) 75

- 1200pcs ultra bright long-life SMD LEDs
- 2x1' size, 300W, 10,000Lux @1m ultra bright
- No fans, no noise
- Linear, Log, Exponential, S- dimming curves
- 2700K-6500K continuously adjustable
- Color rendering CRI 96, TLCI 99, SSI(D55)75
- DMX512 controlled color and dimmer
- LCD display color and dimmer value
- PowerCON True1 AC in and loop out
- 3-pin XLR DC 48V in
- 4-leaf metal barn doors and Yoke bracket
- Optional Honeycomb/Softbox/Pole-operated Yoke

300W Soft Ultra Bright Studio Panel
PL-S300D is a 300W 2:1 Bi-color SMD-LED soft light, 10,000Lux @ 1m high intensity and half-peak 64° wide beam angle for large scale broadcast studios, film sets, and event stage lighting.

10,000Lux @ 1m High Bright and Soft
The 300W soft light produces high illuminace of 10,000Lux @1m, 63° half-peak, applied for head light, key light, and background light in large-scale studios, comference hall, etc.

2700K-6500K Continuously Adjust
PL-S300D consists of 300W 2700K LEDs and 300W 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, and output 300W power at any color temperature.

No Fan, No Noise
With SWIT's unique heat dissipation design, this high-power studio light utilizes passive cooling structure, can be full-power operated without the need for fans, ensuring zero noise in the studio environment.

Accurate Color Render (CRI 96, TLCI 99, SSI(D55) 75)
These high color rendering indexes ensure that objects illuminated by the light retain their true colors, both to the human eye and in camera lenses.

Dimming Curves Selection
PL-S300H offers 4 dimming curves: linear, exponential, logarithmic, and S-curve for selection, enabling precise and smooth dimming control.

DMX, AC / DC Interfaces
PL-S300D provides 5-pin XLR DMX512 in & out, and supports USB-A 5V out to power wireless DMX receiver.
The light provides PowerCON True1 AC in and loop out for serial connection in the studio project, and also support 3-pin XLR DC48V power input for field application.

LCD Display and Menu Operation
Accessing the menu allows users to separately set the DMX addresses for dimmer and color temperature, select and configure lighting effects, choose dimming curves, and support system reset, USB firmware upgrades, and more.
