ARRI M90 EB MAX Set

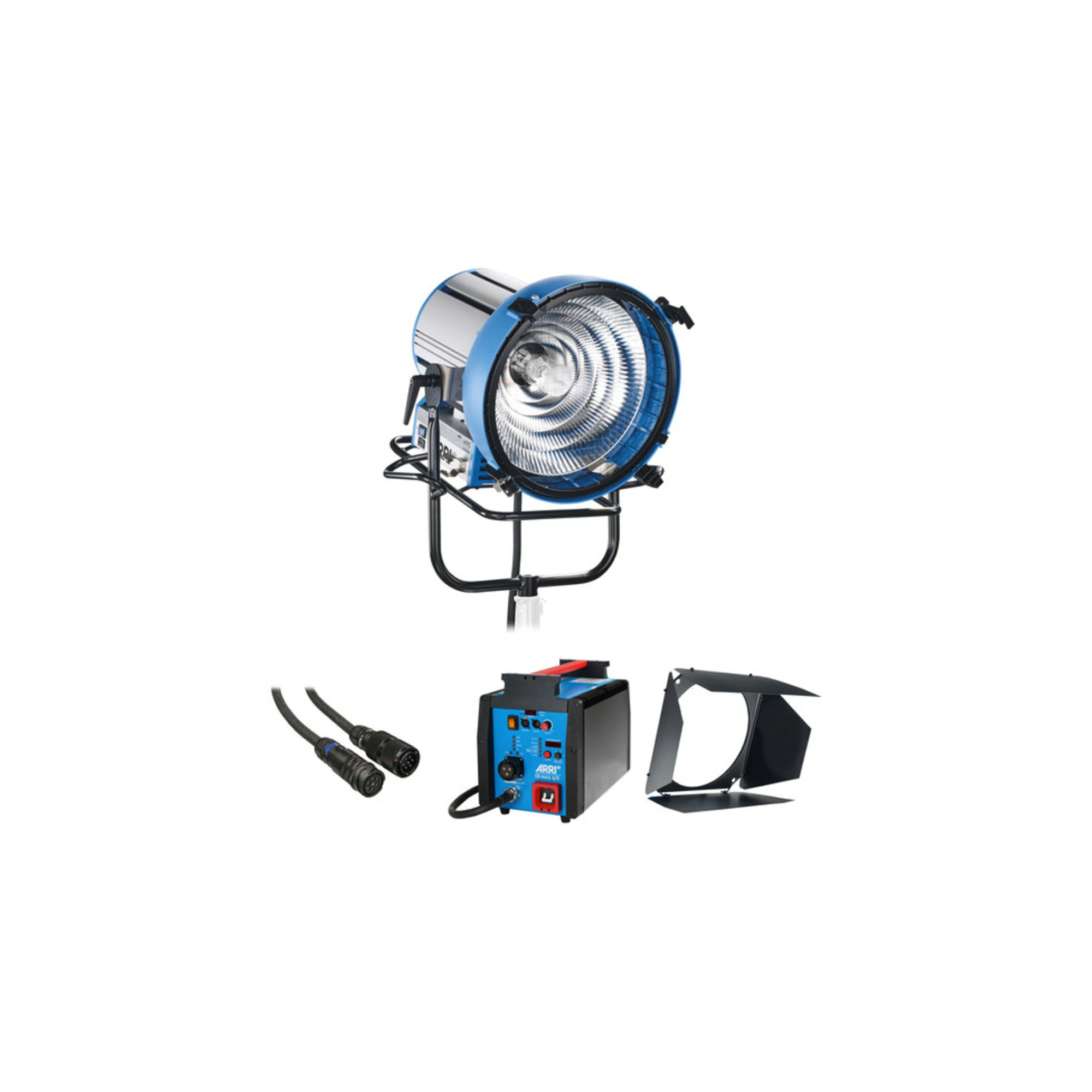

Arri M-Series M90 EB MAX Set - International (VEAM) L0.0019658 complete with

1 x M90 HMI Head, 15 to 49° Focusing
4-Way Barndoors
1 x Head Cable: 50'
EB MAX 6/9 Ballast

With power that positions it between the M40 and the ARRIMAX 18/12, the M90 HMI Lamp Head from ARRI employs faceted MAX Reflector Technology that focuses from 15 to 49 degrees, combining the best qualities of a Fresnel and PAR fixture to produce an output similar to a 12,000W light from a 9,000W lamp.The IP23 weather-resistant M90 ships with a yoke with a 1-1/8" Junior mounting pin. Tilt lock levers on both sides of the light firmly secure the weighty 88 lb fixture.

The M90 requires a ballast for use and 2 are available. Both units employ CCL (Compensation of Cable Losses) to maintain power with long cable runs independent of their length. They also feature a power-saving Active Line Filter (ALF) and built-in DMX for remote operation from a console. The standard EB 6/9 operates at 50, 60 and 75 Hz while the 1000 Hz high speed version allows up to 1,000 flicker-free frames per second.
5-Year extended warranty
Light output nearly matches a 12K PAR (with lens)
As small and lightweight as a 6K PAR
Can also be used with 6,000W (120V nominal) lamps and ballasts
Tilt locks on both sides support heavy accessories
Easy maintenance
Weather resistant IP23
Suitable for high frame rate images
ARRI Head to Ballast Cable for Daylight 6000, Arrisun 60, Arri-X 60 and Compact HMI 6000 - 50'

A 50' long head to ballast cable that connects the Arrisun 60, Daylight 6KW and Compact 6KW HMI lights to their ballasts.
ARRI EB MAX 6/9 Ballast

The ARRI EB MAX 6/9 Ballast is intended for use with select ARRI lamp heads. This ballast has ALF (Active Line Filter), which provides a higher power factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power systems. Cable Loss Compensation, which prevents power loss in head-to-ballast cables up to 300' long, is also featured. The ballast has a low-noise switch and a power factor of 0.98.

This ballast has substantial DMX control. In addition to On/Off and dimming, both operation mode and frequency can be controlled remotely. For ease of use, indicators on the ballast's front panel display the lamp wattage, DMX channel, operation mode, and selected lamp frequency. High speed shooters will appreciate features such as Active Line Filter (ALF), and AutoScan, ensuring optimum light and image quality for high-speed recordings up to 1000 fps.
Cable Loss Compensation prevents power loss in head-to-ballast cables up to 300' long
Active Line Filter (ALF) increases power efficiency
DMX 512 for precision remote control
Low-noise switch
Additional Features
Automatic Lamp Recognition
Automatic Lamphead Recognition
Dimming
AutoScan
Compatibility
M-Series M90
Daylight 6000
Compact 6000
ARRISUN 6000
X60
ARRI 4-Leaf Barndoor Set for M90 Lamp Head

The ARRI 4-Leaf Barndoor Set for M90 Lamp Head is a light shaping tool that allows you to direct the light where you want it and keep it away from areas you don't. It's also useful for containing spill light from the fixture.
