ARRI M18 EB MAX Set

M-Series M18 EB MAX Set - International (VEAM) L0.37600AS

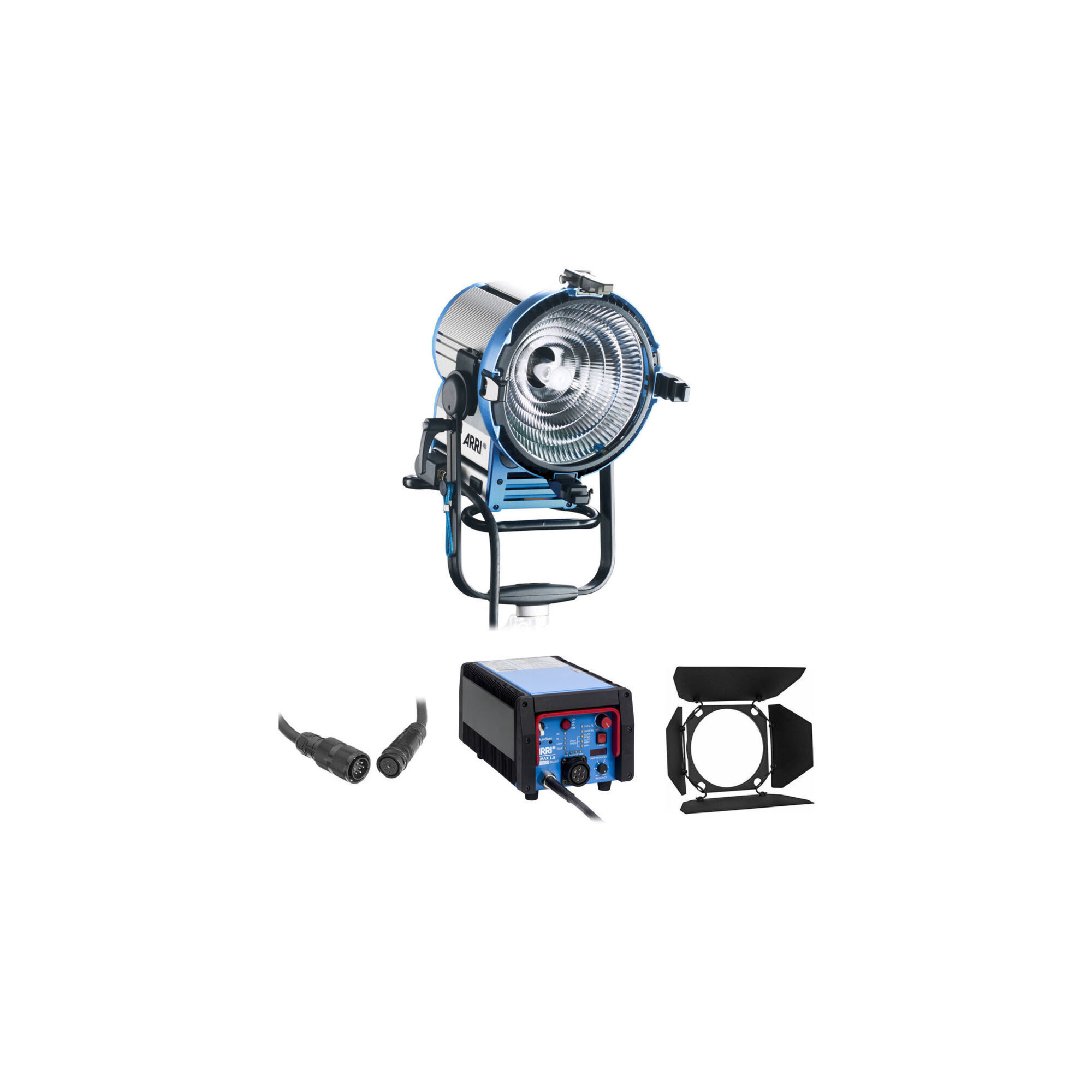

1 x M18 HMI Lamp Head
1 x EB MAX High Speed Ballast
1 x Head-to-Ballast Cable
1 x Four-Way Barndoor Set
High Output Reflector, 16.8" Diameter
1200 Hz High-Speed Filming Capability
DMX Control, 50 to 100% Dimming
Active Line Filter (ALF)
Compensation of Cable Losses (CCL)
300 Hz: 270-360 Hz, 1000 Hz: 900-1200 Hz

complete with :

ARRI M18 HMI Lamphead (110/220 VAC)
ARRI Head to Ballast Cable 575/1200/1800W - 50'
ARRI EB MAX 1.8 High Speed Electronic Ballast with AFL, CCL, DMX, and AutoScan (US)
ARRI 4-Leaf Barndoors for ARRI T5 and ST2/3 Studio Fresnels

ARRI's M18 HMI Lamphead (110/220 VAC) is a newly designed, more efficient lamp head built to work with a new power class of lamp: the 1800W SE HMI (not included), which has an average life of 750 hours, a luminous efficacy of 92 lumens/watt, and a Color Rendering Index (CRI) greater than 90 at 6000K. The M18 is an open-face, lensless fixture that combines the characteristics of a PAR and a Fresnel, creating diverging rays of light to produce a very crisp shadow. It can operate on a 20A circuit. This lamp has a beam angle (HPA) of 20 to 60° with a wide usable field angle. The lamphead is silver.
110/220 VAC
1800W possible
ARRI Head to Ballast Cable 575/1200/1800W - 50'

This is an ARRI Head to Ballast Cable. The 50' (15.2 m) long cable is compatible with 575, 1200 and 1800W heads such as the ARRISUN 5, 12 Plus, 18, and 40/25 heads. It's also compatible with the ARRIMAX M18, the ARRI X X5 and X12, D5 and D12 Fresnels and the Compact 575 and 1200 heads.
ARRI EB MAX 1.8 High Speed Electronic Ballast with AFL, CCL, DMX, and AutoScan (US)

Optimized for ARRI's M8 and M18 as well as the True Blue D5 and D12 HMI lampheads, this EB MAX 1.8 High Speed Electronic Ballast will safely power up your fixture while also providing plenty of advanced features to improve performance. It works with lampheads ranging from 575W up to 1800W and offers AutoScan for optimizing light quality, even when working at frequencies up to 1200 Hz. Other built-in features include an Active Line Filter and Compensation of Cable Losses, ensuring light quality is consistent and that the power supplied is appropriate, even over longer distances. DMX control is provided as well, allowing from dimming from 50-100%, on/off controls, and the ability to adjust the operation mode and frequency. Additionally, it has a low frequency setting for minimizing noise and an array of LED status indicators for quickly viewing settings.
Optimized for M-series M7 and M18 or the True Blue D5 and D12, this high-speed ballast will provide power and advanced features to various lampheads, including 575, 800, 1200, and 1800W lamps.
AutoScan uses fully automatic scans of the lamp frequency to select and set the frequency for the ballast. These settings are constantly monitored and adjusted as required to provide a high-level of consistency at frequencies up to 1200 Hz. Manual frequency control is available as well as an AutoMan setting that permits manual frequency settings with automatic frequency control.
Active Line Filter (ALF) improves the power factor of the ballast, improving overall efficiency of the system.
Compensation of Cable Losses (CCL) adjusts power based on the cable length, ensuring power levels are maintained even when longer cables are used. This is available up to 164' with 120 VAC environments and 328' with 230 VAC environments.
DMX512 is supported with 5-pin XLR input and output available for connecting to your system. Three channels are available and users can then set dimming from 50-100%, turn on/off the fixture, select between the various modes (Low Noise, Standard, AutoScan, AutoMan, and Manual), and set the high-speed frequency of 300 or 1000 Hz.
High-speed frequency ranges can be set to 300 Hz, which covers 270-360 Hz, and 1000 Hz, which covers 900-1200 Hz.
Ignition supports cold start and hot restrike.
The ballast has automatic detection of the lamp wattage and lamphead.
A display can be used to see the DMX channel and lamp frequency, while LED status indicator lights are present for remote operation, successful ignition, overtemperature, protective earth, and lamp type.
