2x1 RGBW 650W CCT: 2200-15000K, LED Light (with Head,Yoke,Diffusion,Power Cable)
go to the technical sheet
€ 7.389,77

€ 6.874,20 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

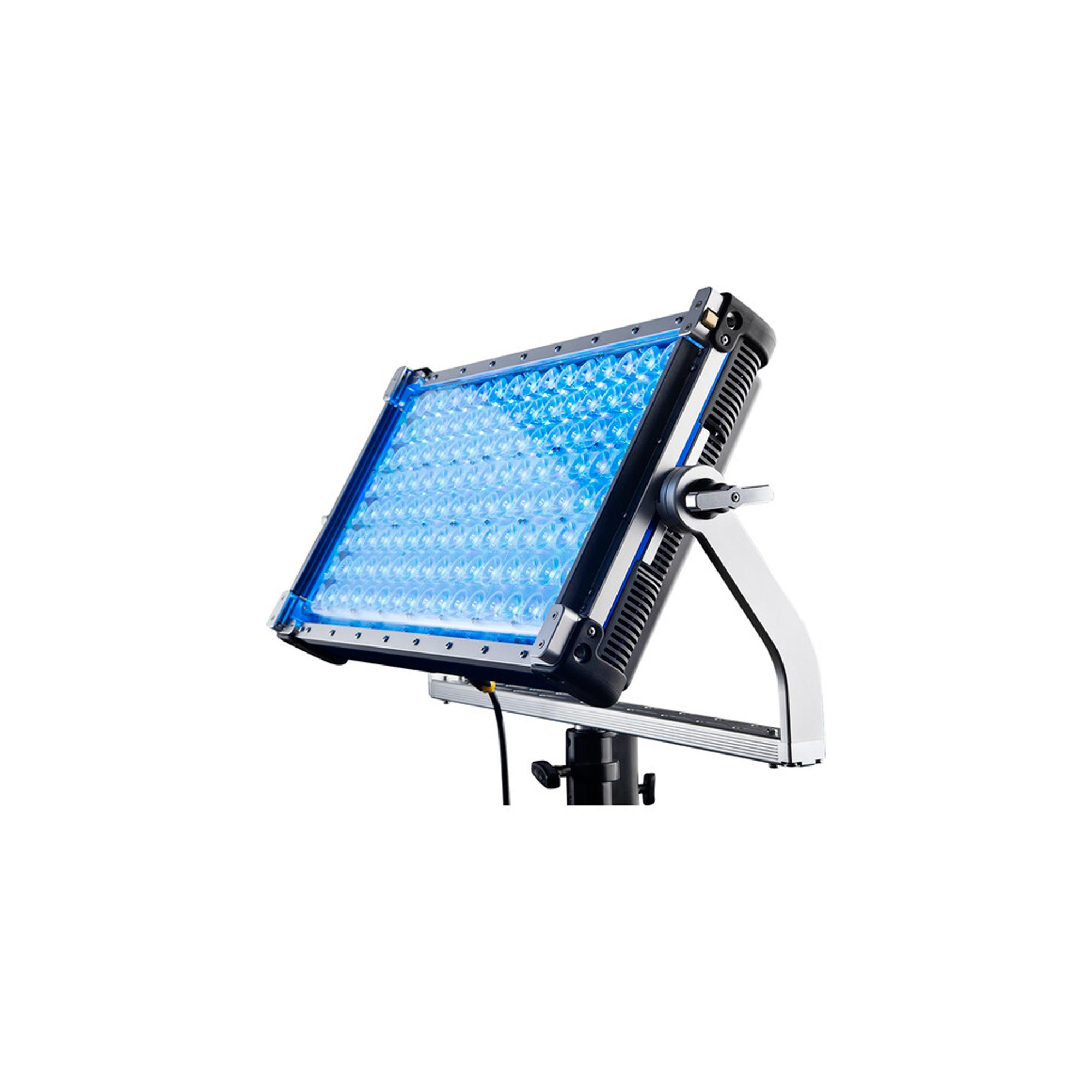

Creamsourcex 2x1 RGBW 650W CCT: 2200 - 15000K, LED Light (include: Head, Yoke, Diffusion, Power Cable)

- Dynamic CCT Range: 2200K to 15000K lighting brilliance
- CreamOS Magic: Built-in effects, color gels & intuitive UI
- Brave All Weathers: IP65 water-resistant, dust & snowproof
- Mighty 650W: Equates to 1200W HMI systems' intensity
- Whisper-Quiet Fan: Optimum thermal efficiency, no noise
- 20 Degree Beam Angle: For precise artistic & technical lighting

This state-of-the-art 2x1 RGBW system boasts a versatile CCT range from 2200K to 15000K.
Whether you're looking for a powerful punch light to enhance your shots or a creamy aura using our Creamsource Dome or DoPchoice Snapbag, the Vortex8 has got you covered.
Dive into a universe of special effects and color gels, all seamlessly integrated into our cutting-edge CreamOS architecture.

Built for the Bold
The Vortex8 is designed for durability in various conditions.
It boasts an IP65 water-resistance rating, capable of functioning optimally amidst rain, snow, or dust.
Weather concerns should not compromise creative endeavors.

Connect, Command, Conquer
Stay ahead of the curve with Vortex8's state-of-the-art connectivity features.
From LumenRadio TimoTwo and Ethernet to Bluetooth, Wifi, and the exclusive Creamsource Accessory port - the possibilities are truly endless.
Empower yourself with boundless control options, both wired and wireless.
Let your lighting speak volumes, perfectly in sync with third-party instruments and protocols.

Uncompromised Design and Performance
Beauty lies in the details. The Vortex8 is not just a lighting system; it's a masterpiece of precision engineering.
Crafted with a blend of elegant aluminum and robust technopolymer, it's both visually stunning and undeniably resilient.
The integrated PSU and antennas make it sleek yet powerful, truly embodying our passion for design that caters to both aesthetics and functionality.

Weather-Proof Brilliance
Trust the Vortex8 to shine bright, no matter the weather.
Its IP65 water-resistant rating, combined with its ultra-quiet fan system and elite thermal efficiency, makes it a beacon of durability.
And with premium waterproof connectors, it promises relentless performance in any environment.

Illuminate with Intensity
Turn up the intensity with the Vortex8's staggering 650W power.
Producing a dazzling 14000lux at just 3m/9.8ft., it competes effortlessly with 1200W HMI systems.
Its ultra-narrow 20-degree beam angle grants you the artistic freedom to sculpt, diffuse, and design the perfect ambiance.

CreamOS: The Future of Lighting
Step into the future with Vortex Series' revamped software base.
From controlling 8 dynamic zones to embracing an array of features and protocols, the new CreamOS opens doors to limitless creativity.
It's not just a user interface; it's your canvas.


Material: Aluminum/Technopolymer
Light Source: RGBW LED
Color Range: CCT: 2200 - 15000K, Plus/Minus Green, Hue/Saturation, XY, Gels, Direct RGBW, Effects
CRI: Typical 95
TLCI: Typical 95
Beam Angle, SPOT Lens: 20 Degree (Half Peak Angle)
Tilt Angle: 360 Degree
Photometrics:
° 3200K:
68,200 lx / 6,340 fc @ 1m / 3.3''
26,200 lx / 2,430 fc @ 2m / 6.6''
12,700 lx / 1,180 fc @ 3m / 9.8''
7,400 lx / 690 fc @ 4m / 13.1''
4,800 lx / 450 fc @ 5m / 19.4''
3,400 lx / 320 fc @ 6m / 19.7''
° 5600K:
73,500 lx / 6,830 fc @ 1m / 3.3''
28,600 lx / 2,660 fc @ 2m / 6.6''
13,900 lx / 1,290 fc @ 3m / 9.8''
8,000 lx / 740 fc @ 4m / 13.1''
5,200 lx / 480 fc @ 5m / 19.4''
3,700 lx / 340 fc @ 6m / 19.7''
Mounting: 8x 3/8" Threaded Insert Rigging Points
Yoke: Removable quick release yoke
Filter Rails: 2 Filter Rails for Secondary Lenses, Diffusers, Accessories
User interface: High Precision Digital Magnetic Encoder, Backlit Keypad, Color LCD Display
Dimming: 0-100% with High Resolution, SuperSmooth Low End Mode
High Speed Capability: Over 5000fps Flicker Free in High Speed Mode
Synchronization: Sync Input for Triggering and Syncing to Camera Shutter
Max Ambient Temperature: 40 Degree C
Cooling: Low noise variable speed fans
Estimated LED Lifespan: 50,000hrs (L70)
Input (AC): 100-240V AC, 50/60Hz, Max 8A. Neutrik PowerConTrue connector
Input (DC): 48V DC, Max 13A, Can run at 100% brightness on DC input
Protection Class: IP65
Certifications: Pending: CE, ETL and FCC
Control: On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated Lumen radio Timo Two with Bluetooth, Ethernet, USB Type A
Dimensions:
- Excluding Yoke: 27.2 x 15 x 4.8" (690 x 380 x 121mm)
- Including Yoke: 32.7 x 21.7 x 6.4" (831 x 551 x 164mm)
Weight:
- Head Excluding Yoke: 30 lbs (13.7kg)
- Including Yoke: 4.4 lbs (1.98kg)
