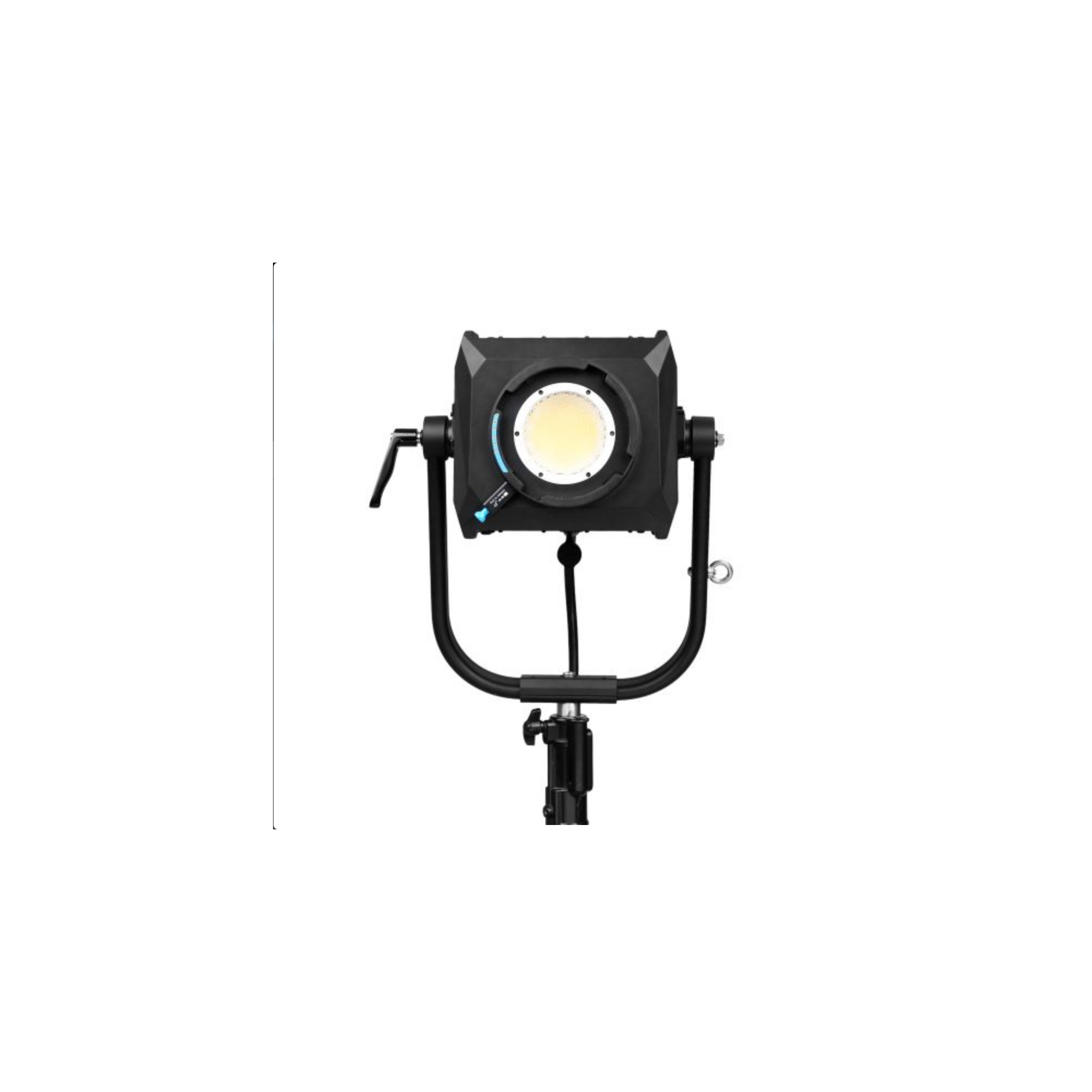

Evoke 2400B

Nanlite LED color spot light 2400W, Bicolor 2700K-6500K, 12 effects, CRI 96, TLCI 97

The Evoke 2400B is a 2400W LED color spot light with G/M dimming function and an IP55 rating.

° Functions:
Adjustable color temperature from 2700K to 6500K, fully dimmable from 0-100% in 0.1% increments, ±80 green/magenta correction
Effects: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.

Fan Mode: SMART, FULL SPEED, LOW SPEED, OFF.
- Maximum output is 100% when the fan is in SMART or FULL SPEED mode.
- Maximum output is 50% in LOW SPEED mode
- The maximum output is 10% when the fan is turned off (OFF mode).

Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
Accessory recognition function: Evoke 2400B has an accessory recognition function to recognize accessories with optical contacts; this function can be activated/deactivated in the menu.
Two language options: English and Chinese.
Firmware update support.
Bluetooth reset function.

° Structure
Separate light and power structure design, high output power with ultra-bright brightness.
3.5 inch screen, with four buttons and three knobs.
Sturdy and resistant metal construction, with IP55 rating.
Eyebolt bracket quick release design, allows Evoke 2400B to rotate 360 degrees.
Integral disassembly design makes maintenance and parts replacement easier.
Quick release plate and clamp for power supply, with clamping range of PHI 15-50mm.
The Evoke 2400B features an NL mount and optical contacts, making it compatible with NL mount accessories and modifiers with optical contacts.

° Control
Integrated control: Evoke 2400B can be controlled via the control panel on the structure.
Bluetooth: Evoke 2400B has a built-in Bluetooth module for direct control via the NANLINK app.
2.4G: Evoke 2400B features a built-in 2.4G receiver, allowing control via remote control or via the NANLINK app through the NANLINK box.
DMX/RDM: Support DMX/RDM control.
LumenRadio: Integrated Lumenradio module for remote control.
Wireless on/off function.
Reserved wired control function.
Support for Art-Net and sACN control protocols.
