Nanlux

8056284072181
Nanlux Evoke 900C RGB LED Spot Light (Travel Kit) - 2130851
go to the technical sheet
₦ 9,618,938.00

₦ 8,947,849.00 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
Nanlux Evoke 900C RGB LED Spot Light (Travel Kit) - 2130851

Combining advanced control with RGBLAC capability, the Evoke 900C RGB LED Spot Light from Nanlux is a powerful yet compact fixture with an impressive color temperature range and beam spread of 60°.
Its variable 1800 to 20,000K CCT allows you to use it on interiors, exteriors, and mixed lighting environments.
The Evoke 900C is dimmable from 0 to 100% in ultra-precise increments of just 0.1%. Besides incorporating lime, amber, and cyan LEDs, the light offers high CRI/TLCI ratings of 96 as your assurance of accuracy in color rendering.

The Evoke 900C is a 940W unit ready to work in the studio plugged into a standard AC outlet.
The included power supply ballast operates on a voltage range from 100 to 240 VAC, so it can be used on location anywhere in the world.
Additionally, it can also run on an optional DC battery source when mains current is unavailable.
This kit comes with a yoke, a 45° reflector, and a super clamp.
A trolley carry case is supplied as well for easy portability, making it a complete lighting solution.

° Extended Control
Nanlux offers a generous bounty of methods to control the Evoke 900C supporting both wired and wireless control.
Dimming and other adjustments can be made locally, via Bluetooth, over DMX/RDM, or by using other advanced options.

Onboard, Nanlink app via Bluetooth, and 2.4 GHz wireless control
DMX control allows you to adjust your light using an optional DMX console
You can also use wireless DMX via LumenRadio
Supports Art-Net/sACN protocols
Includes remote controller

° 15 Built-In Effects
One of the many benefits is a library of 15 special effects, including HUE loop, CCT loop, INT loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.

° Quiet Operation
The adjustable fan delivers improved heat dissipation with a noise level of 25 dBA under Smart mode.

Smart, Full-Speed, Low-Speed, and Off modes
Full power output under Smart and Full-Speed modes
Maximum power output is 70% under Low-Speed mode
Maximum power output is 20% under Off mode

° Weather Resistant
With a robust construction and a practical design, this 13 x 9.5 x 8.3" fixture is rated IP55 for weather resistance, so you can use it outdoors or in wet weather.

Light Fixture
Item Type: 1 x LED Spot Light
Included Light Modifier: 1 x Reflector
Included Storage Case: 1 x Case
Lumens: Not Specified by Manufacturer
Photometrics:
° 3200K:
3553 fc / 38,250 Lux at 3.3'' / 1 m*
394 fc / 4250 Lux at 9.8'' / 3 m
153 fc / 1656 Lux at 16.4'' / 5 m
° 5600K:
3629 fc / 39,069 Lux at 3.3'' / 1 m*
403 fc / 4341 Lux at 9.8'' / 3 m
156 fc / 1688 Lux at 16.4'' / 5 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature: 1800 to 20,000K +/- 200K
Color Modes: RGB
Color Accuracy Standard:
° CRI 96
° TLCI 96
° TM-30 Rf 94
° TM-30 Rg 100
° SSI 73 at 5600K
° SSI 81 at 3200K
Cooling System: Fan/Passive Combo
Dimming:
° Yes, Built-In Dimmer
° 0 to 100%
Beam Angle: 60°
Built-In Flash: No
Umbrella Mount: No

Connectivity
Wireless Remote Control Type:
° Art-Net
° Bluetooth
° Wireless DMX
° Radio/RF *Remote Included
Mobile App Compatible:
° Yes: Android & iOS
° App Name: NANLINK
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Power & I/O
Power Source: AC Power (Cable Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
DC Input Power: 48 VDC at 18.75 A
Included Adapter / Cable: Yes
Power Consumption: 940 W

Mounting
Yoke Type: Manually-Operated Yoke
Fixture Mounting: 1 x 1-1/8" Stud (Via Yoke Mount)

Environmental
Environmental Protection:
Advertised as Dust Resistant/Water Resistant (Light Fixture Only)
*Manufacturer Testing: IP55

General
Display: Yes
Dimensions:
° 13.5 x 9.5 x 8.3" / 34.3 x 24.1 x 21.1 cm (Fixture)
° 13.5 x 5.7 x 4.9" / 34.3 x 14.5 x 12.4 cm (Power Supply/Controller)
Weight:
° 17 lb / 7.7 kg (Fixture)
° 9.9 lb / 4.5 kg (Power Supply/Controller)

Packaging Info
Package Weight: 63 lb/28.60 kg
Box Dimensions: 32 x 19 x 13.75"/81 x 48 x 35 cm

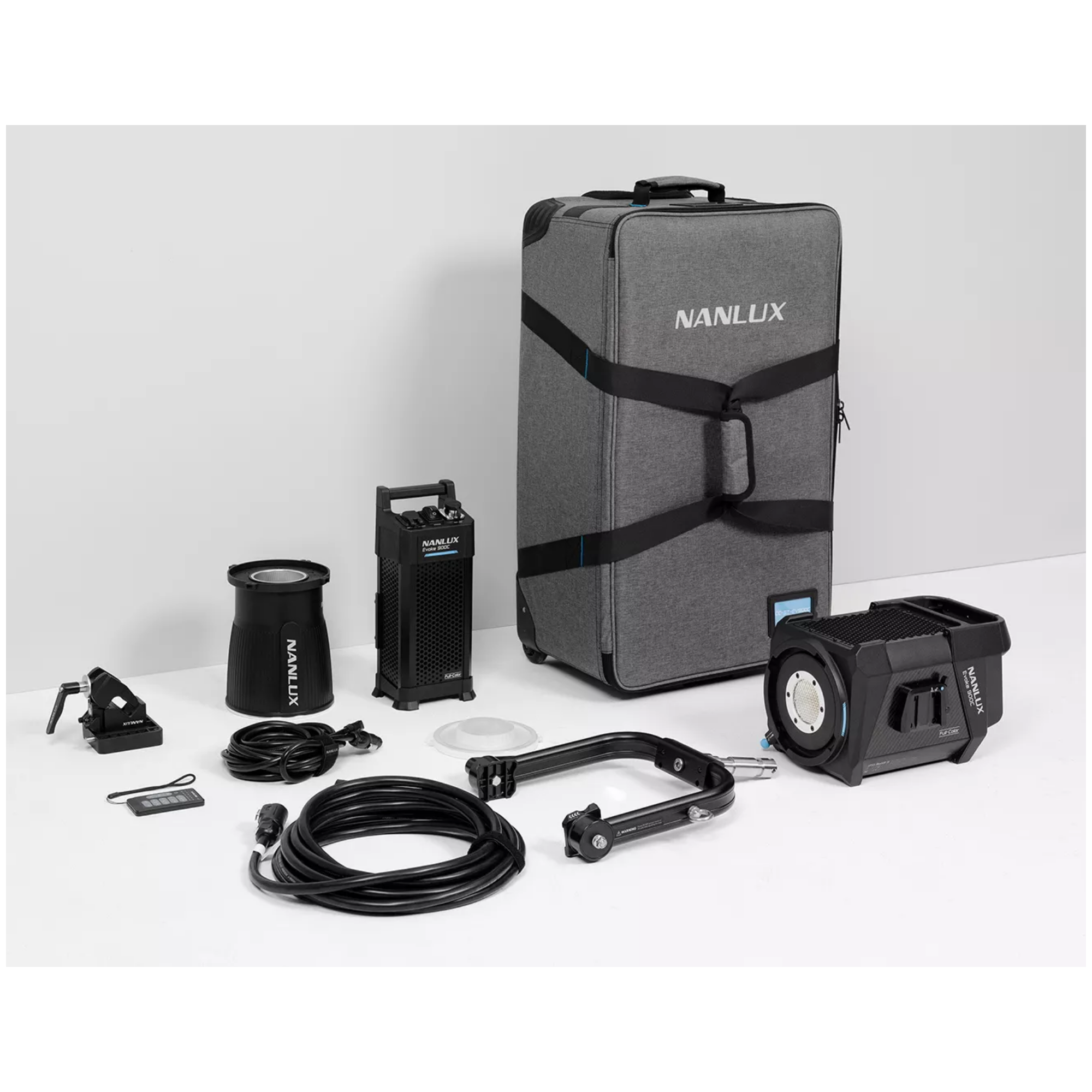

Nanlux Evoke 900C RGB LED Spot Light (Travel Kit)
Yoke
Power Supply
Nanlux Reflector for Evoke 1200 (45°)
DC Connection Cable (24.6)
AC Power Cable (19.6'')
Nanlux Evoke Quick Release Bracket with Super Clamp
USB Flash Drive
Remote Controller
Trolley Case
