ARRIMAX 1812 L1.37950.B

Name: ARRIMAX 1812 L1.37950.B
Brand: Arri
SKU: ARRIMAX 1812 L1.37950.B
Price: 21849.29 EUR
Availability: OutOfStock

Arri

Daylight Lens-less MAX Technology 18,000 W L1.37950.B

go to the technical sheet

€ 21.849,29

€ 20.324,92 VAT excl.

Available in 8 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

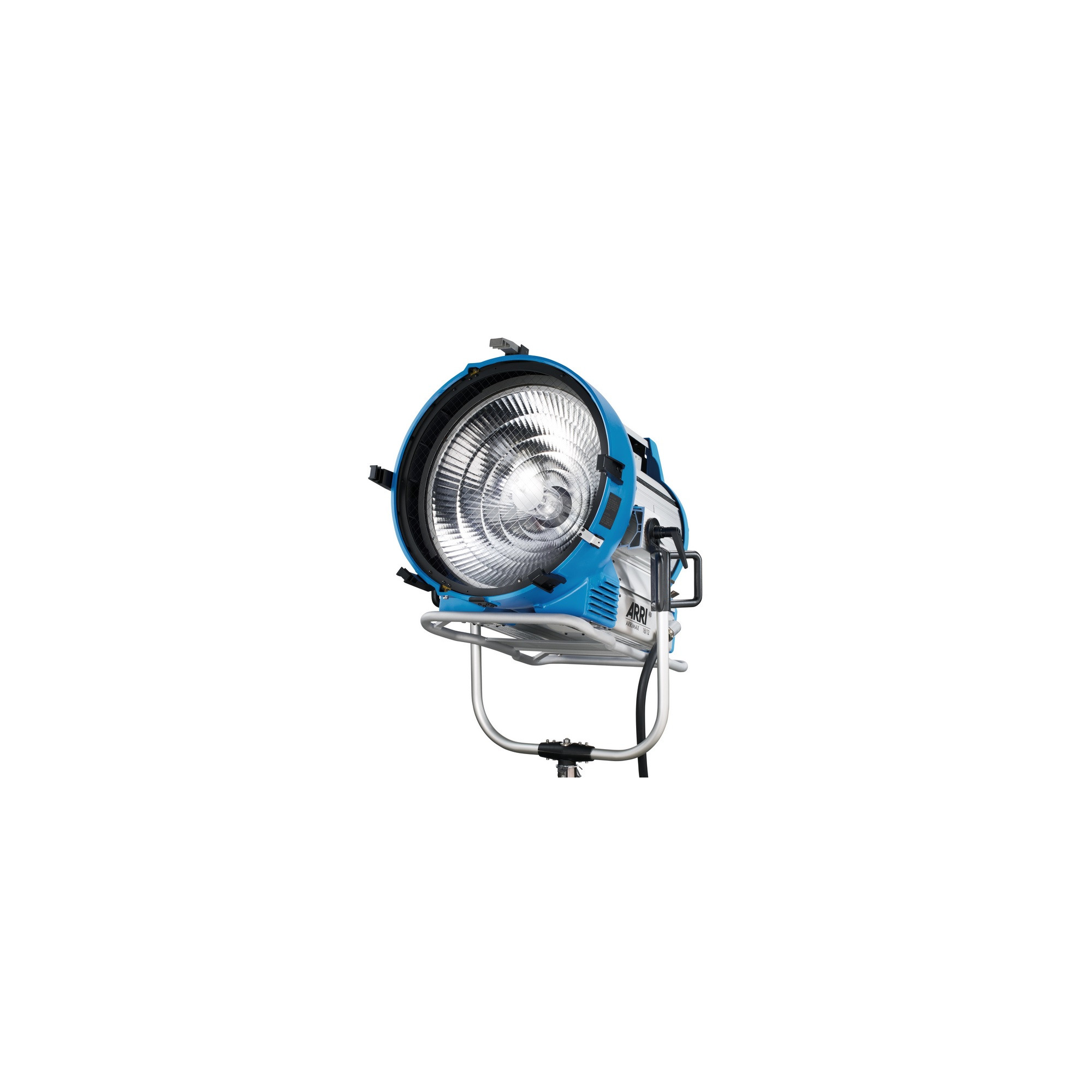

The original Academy Award-winning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.8") diameter, parabolic facetted reflector provides continuous focus adjustment from 15° to 50° beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.

Safe and easy for both lamp type bases 18/12 kW, 18,000 W single ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder that alleviates mechanical stress from the lamp pins, now serving only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18,000 W single ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment.

Features

Lens-less MAX Technology
15° to 50° continuous beam angle: standard reflector
8° to 15° beam angle: spot reflector
Easy re-lamping
ARRI Dual Pin Width support (GX51/GX38)
IP Rating IP23
Suitable for high frame rate images
Works with motorized yoke "BigBee"

Stands - Hardware - Tools Lamps & Fluorescent Tubes Studio and Cinema lights

Avenger

A1035CS

€ 628,12 VAT included

Available in 8 days

-2.51%

ON-AIR

LT-240S

-2.51%

€ 129,24 VAT included

Available in 11 days

Arri

L2.81230.0

€ 261,76 VAT included

Available in 11 days

Series: M-Series
Model: ARRIMAX 18/12
Mains Plug: VEAM
Lamphead Type: Open Face with Facetted Reflector, 12,000 / 18,000 W
Reflector: MAX Technology reflector made of high purity aluminium
Lamp Type: Metal Halide 18,000 W/SE; Metal Halide 12,000 W/SE
Power Consumption: 18,000 W / 12,000 W
Voltage Range: 225 V / 160 V
Lamp Base: GX51 / GX38
Dimming: yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature: approx. 5,600 K
Beam Angle: 15° to 50° (with 18,000 W lamp)
Weight in kg net: approx. 70 kg
Weight in kg packed: approx. 86 kg
Weight in lbs. Net: approx. 152.56 lbs
Weight in lbs. Packed: approx. 188.94 lbs
Measurements (HxWxL) incl. Pin in mm: 1270 x 784 x 942 mm
Measurements (HxWxL) excl. Pin in mm: 1155 x 784 x 942 mm
Measurements (HxWxL) incl. Pin in inch: 50.0 x 30.9 x 37.1"
Measurements (HxWxL) excl. Pin in inch: 45.5 x 30.9 x 37.1"
Measurements (HxWxL) Packed size in mm: 1050 x 1170 x 1135 mm
Measurements (HxWxL) Packed size in inch: 41.3 x 46.1 x 44.7"
Lens / UV-Protection Glass Diameter in mm: 646 mm
Lens Diameter in inch: 25.4"
Accessory Diameter in mm: 740 mm
Accessory Diameter in inch: 29.1" (Scrim)
Barndoor in mm: 740 mm
Barndoor in inch: 29.1"
Mounting: Spigot 28 mm / 1 1/8" (1.1")
Housing Color: Blue/Silver
Protection Class / IP Rating: I / IP23
Certifications: CE, CB, GS, cNRTLus
