Toliman 30C
Zolar
The Toliman 30C also has numerous control features, including a wired remote controller, Bluetooth and Wi-Fi control using the ZOLAR mobile app, multi-light sync via ZolarLink, standard 5-pin DMX, and Art-Net and sACN protocols via Ethernet. Power options include a 3-pin XLR AC input, a dual V-mount battery plate on the back, and a powerCON AC loop output. It features a low-noise fan that can be adjusted in multiple modes depending on the noise requirements of your production. A standard yoke is included that supports tilting and pole operation.
Light Characteristics
CCT range: 3200 to 5600K
ZOLAR Stylist precision directional light transmission panel: control beam angle and diffusion with no color shift
Color Accuracy
CRI: Ra = 98 (R9 & R12 up to 99)
TLCI = 98
Spectral Similarity Index SSI up to 90
Communication and Control
5-pin DMX with RDM
Art-Net 4
sACN + powerCON
Wired remote controller
Bluetooth + Wi-Fi via ZOLAR mobile app (iOS and Android)
ZolarLink mult-light sync protocol; up to 16 groups with 60 slave units maximum per group (wireless); up to 32 units maximum per group (wired)
Built in light effects (synchronized) for different scene applications
Power and Environmental Options
AC power input via 3-pin XLR
Dual V-mount battery plate
Low noise fan mode (Auto, High, Mid, Low)
Light Fixture
Photometrics
90° at 3200K
604 fc / 6508 Lux at 3.3'' / 1 m*
73 fc / 787 Lux at 9.8'' / 3 m
90° at 5600K
697 fc / 7504 Lux at 3.3'' / 1 m*
85 fc / 918 Lux at 9.8'' / 3 m
Color Temperature: 3200 to 5600K +/- 100K
Color Accuracy Standard
CRI 98
SSI 90
TLCI 98
Cooling System: Fan
Dimming: Yes 0 to 100%
Housing Material: Aluminum
Expected Lamp Life: 50,000 Hours
Beam Angle: 90°
Fixture Dimensions: 18.7 x 16.5 x 5.1" / 475.0 x 420.0 x 130.0 mm (Including Yoke)
Fixture Weight
8.09 lb / 3.67 kg
9.99 lb / 4.53 kg (Including Yoke)
Connectors
Battery Plate: 2 x V-Mount
Power Input Connection: XLR 3-Pin
DMX Connection: XLR 5-Pin, EtherCON
Power Output Connection: powerCON
Mounting
Yoke Mount: TVMP/ Hex Bolt
Fixture Mount: Combination 1-1/8" Stud and 5/8" Receiver
Yoke
Yoke Material: Aluminum
Yoke Type: Yoke/Bracket
Tilt: 360°
Remote Operation
Remote Control Type: App, Art-Net, Bluetooth, DMX, RDM, Wi-Fi, Wired Remote
Number of DMX Channel Modes: 16
Power
AC Input Power: 110 to 240 VAC, 50 / 60 Hz
DC Input Power: 48 VDC at 5.2 A
Power Source: AC Power, External Battery
Max Power Consumption: 250 W
Power Pass-Thru: Yes
Physical
Certifications: CE, FCC, UKCA
*as per Manufacturer
Operating Temperature: -4 to 113°F / -20 to 45°C

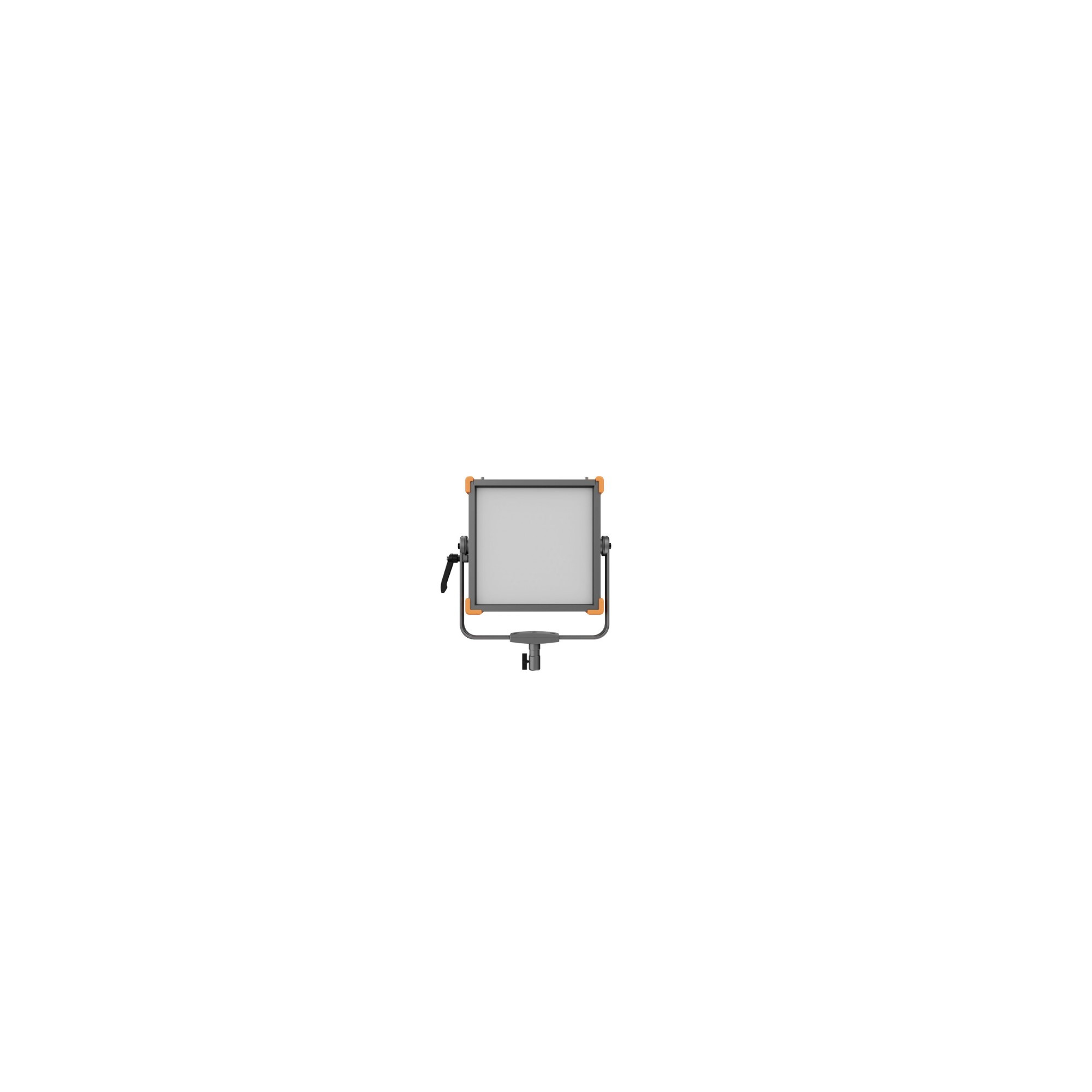

Z CAM ZOLAR Toliman 30C Bi-Color LED Light Panel
Aluminum Yoke with Tilt Lock
Power Supply
Power Cable
Limited 1-Year Warranty
