Audio-Technica BPHS1-XF4 Communications Headset
go to the technical sheet
  • -2.5%
Save 2.5%
€ 181,04

€ 168,41 VAT excl.

€ 185,68
Available in 11 days
Not sure if this is the right product for you? Talk to a consultant

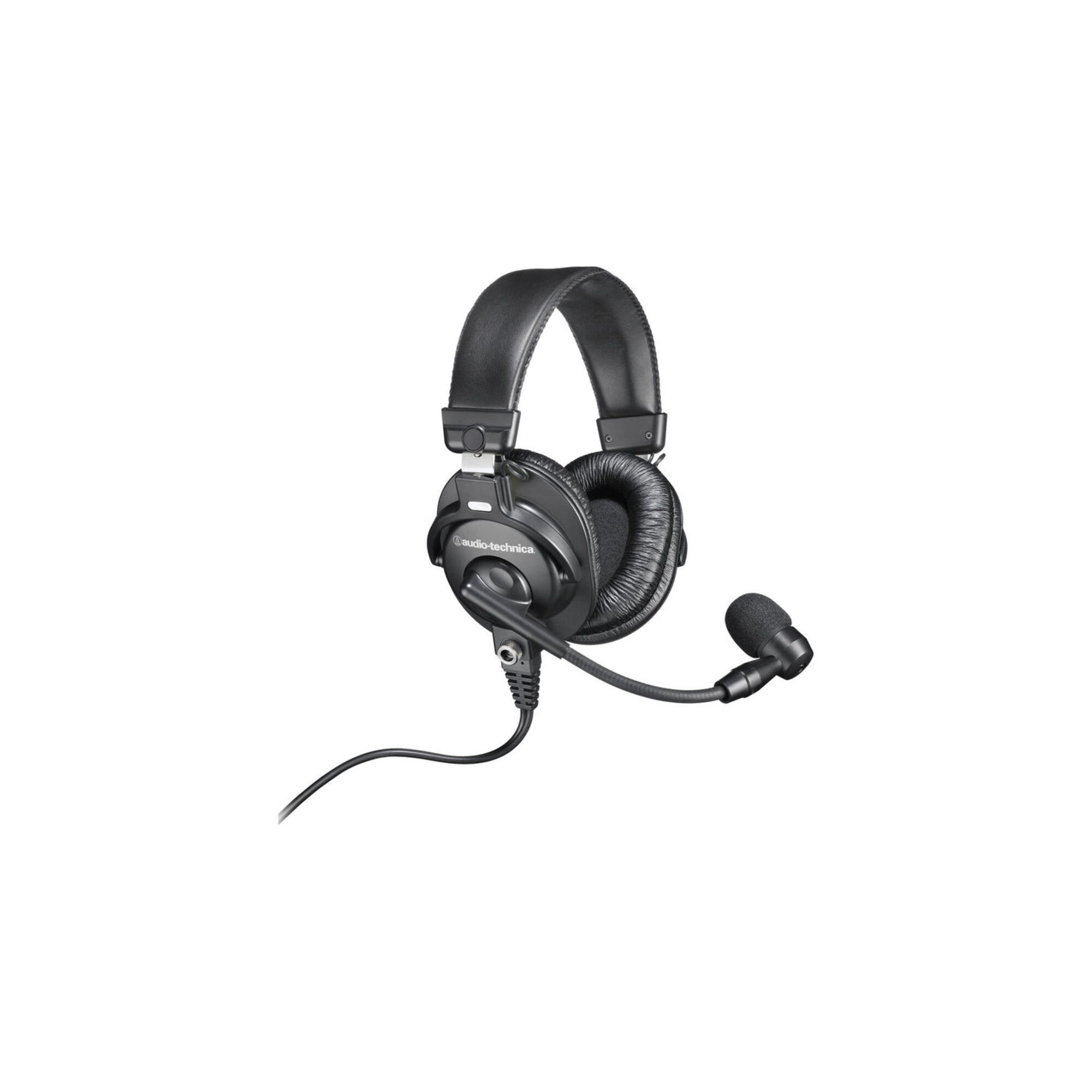

Created for use with intercom systems, the Audio-Technica BPHS1-XF4 is a rugged communications headset that offers natural, highly intelligible and focused vocal reproduction, closed-back circumaural (around-the-ear) ear cups to seal out background noise, and a high-output dynamic microphone mounted on a flexible gooseneck boom.

The headset's microphone has a cardioid polar pattern tailored for pickup of speech with maximum voice intelligibility over a wide range of frequencies. It is more sensitive to sound originating directly in front of the element, making it useful in reducing pickup of unwanted sounds. The flexible gooseneck boom swivels for easy positioning on either the right or left side.


Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction
Closed-back circumaural ear cups help seal out crowd noise and other background distractions
Neodymium magnets in microphone and headphones for high output level and detailed sound reproduction
Rugged design with user-replaceable cable and ear pads
Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds
Boom-mounted microphone can be positioned on the left or right side
Adjustable cushioned headband and lightweight design for long-wearing comfort

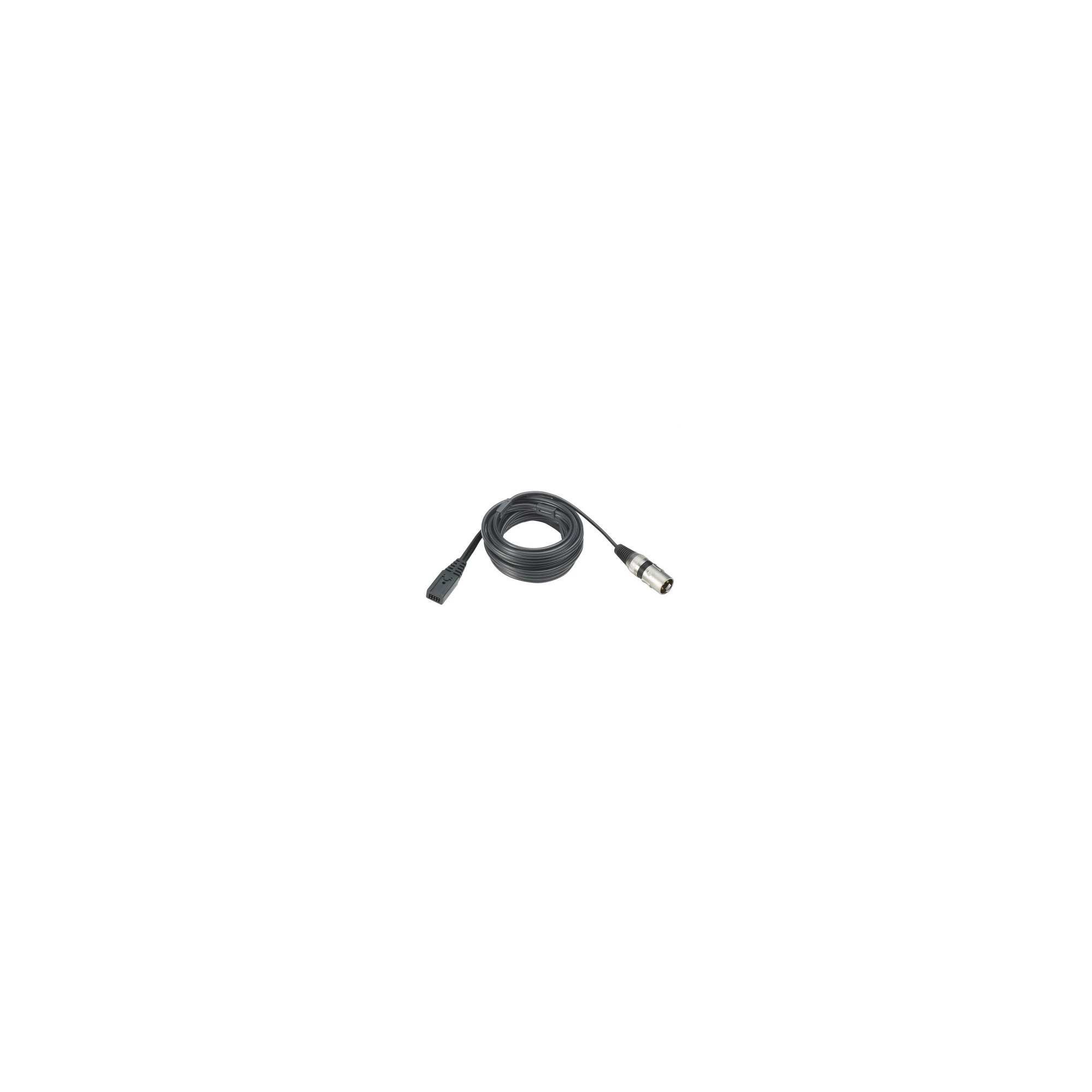

Detachable cable (BPCB4) terminates in 4-pin XLRF-type connector for use with intercom systems
Includes three windscreens

Audio-Technica BPHS1-XF4 Specs
Type Closed-back dynamic (headphone)
Cardioid dynamic (microphone)
Driver Diameter 40 mm (headphone)
Voice Coil Copper-clad aluminum wire
Frequency Response 20 - 20,000 Hz (headphone)
40 - 20,000 Hz (microphone)
Maximum Input Power 1,600 mW at 1 kHz
Sensitivity 100 dB (headphone)
-57 dB (1.4 mV) re 1 V at 1 Pa (microphone)
Impedance 65 ohms (headphone)
560 ohms (microphone)
Cable 6.6'' (2 m ) long with 8-pin connector at headset end; 4-pin XLRF-type connector output
Dimensions 3.23" (82.0 mm) wide (ear cup)
1.81" (46.0 mm) wide (headband)
7.09" (180.1 mm) long (boom), microphone extended
0.94" (24.0 mm) diameter (microphone)
Weight 264 g (9.3 oz)
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 10.0 x 7.5 x 3.8"
