Control HST

Name: Control HST
Brand: JBL
SKU: Control HST
Price: 534.55 EUR
Availability: OutOfStock

JBL

100W 2-Way 5.25" Passive Wide-Coverage Speaker (Single, Black)

go to the technical sheet

-2.5%

Save 2.5%

€ 534,55

€ 497,26 VAT excl.

€ 548,26

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

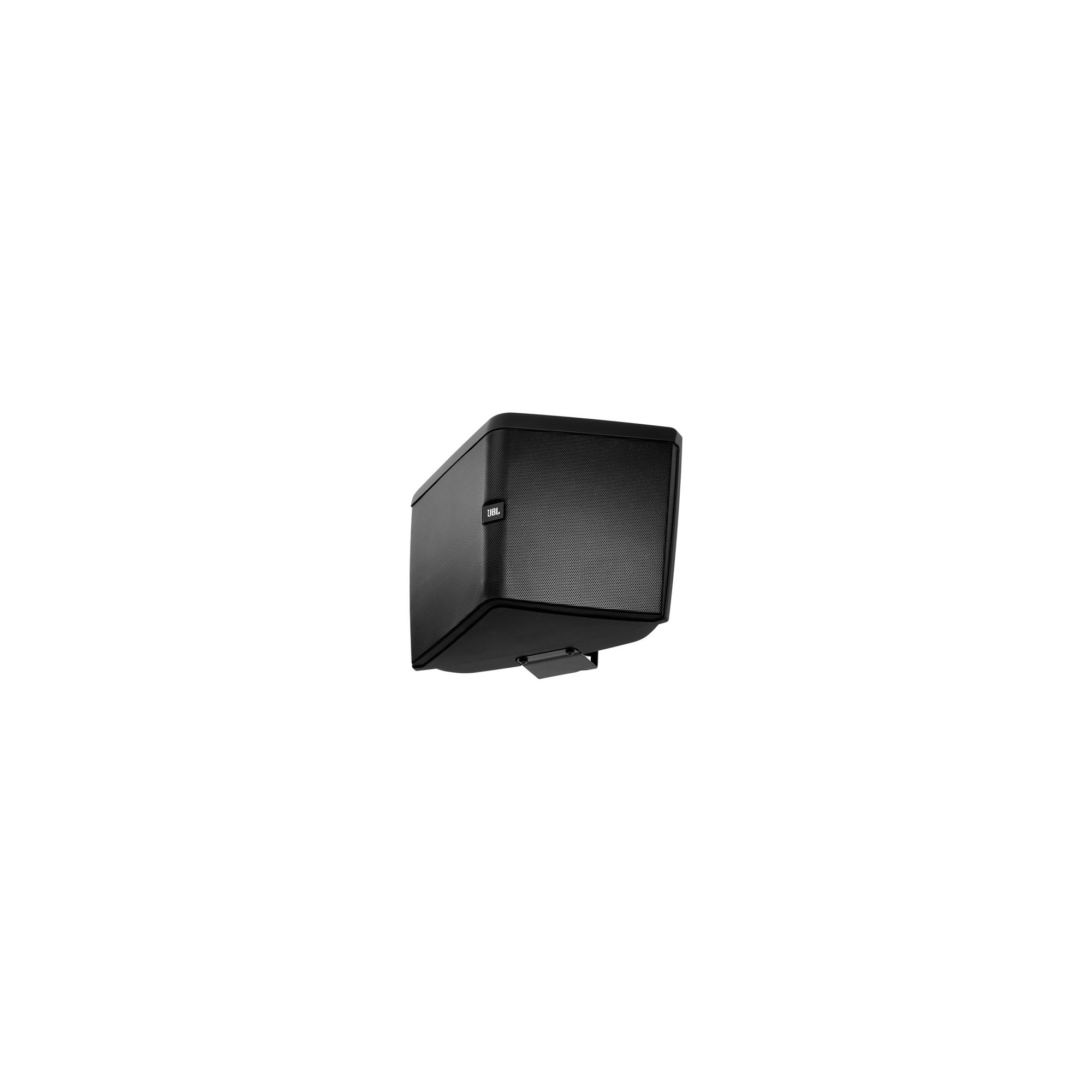

The black JBL Control HST is a single two-way 100W passive wallmount speaker offering extremely wide coverage and a broad frequency response for music reproduction and paging applications in a variety of indoor and outdoor environments such as stores, restaurants, educational facilities, hotels, and lobbies.

The ABS enclosure features a wall-facing 5.25" woofer and dual horizontally splayed 0.75" fluid-cooled tweeters, enabling the Control HST to deliver a 180 x 160° pattern control while producing a 50 Hz to 20 kHz frequency range (-10 dB) devoid of the primary reflection that normally plagues wall-mounted speakers, making it ideal for reducing the number of speakers in a setup without sacrificing coverage area or fidelity.

An integrated 60W multi-tap transformer allows the Control HST to be used in 70/100V, or 8-ohm system configurations at selectable wattage settings. Boasting IP54 and Mil-Std-810 ratings for resistance to water, humidity, and more, the Control HST is a capable speaker for a range of locations. It includes a color-matched U-bracket for simplified wallmount installation.

Speaker
Active or Passive Passive
Number of Included Speakers 1
Speaker Configuration 2-Way
Power Handling For 2 Hours:
100 W Program
400 W Peak
For 100 Hours:
75 W Program
300 W Peak
Constant Voltage / Transformer Taps 70 V:
60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
100 V:
60 / 30 / 15 W or 8 Ohms Bypass
Impedance 8 Ohms (Nominal)
Transformer Wattage 60 W
Enclosure Type Sealed
Shielded No
Drivers
HF Driver 2 x 0.75" / 1.91 cm Aluminum Tweeter
LF Driver 1 x 5.25" / 13.34 cm Woofer
LF Voice Coil 1" / 2.54 cm
Magnet HF:
Neodymium
Performance
Frequency Range 50 Hz to 20 kHz -10 dB
Frequency Response 68 Hz to 18 kHz ±3 dB
Maximum SPL 108 dB (Continuous)
114 dB (Peak)
Sensitivity 88 dB (Average)
Coverage Angle 180° H x 160° V
Directivity 5.4 (Directivity/Q Factor)
7.2 dB (Directivity Index)
Crossover High-Pass:
1.6 kHz, 18 dB/Octave (Passive)
Low-Pass:
1.6 kHz, 12 dB/Octave (Passive)
Connectivity
I/O Connectors 1 x Euroblock 4-Pin Speaker Input/Thru (Locking, Removable)
Maximum Wire Gauge 12 AWG / 2.5 mm
Environmental
Water / Weather Resistance Humidity Resistant, Water Resistant
IP Rating IP54
Physical
Color Black
Mounting 4 x M6 Bracket Point (Rear)
1 x M6 Suspension (Rear)
Construction Material ABS, Aluminum Grille, Fiberglass
Dimensions 14.25 x 10.1 x 7.2" / 36.2 x 25.65 x 18.29 cm
Weight 8 lb / 3.6 kg (Each Speaker, without Bracket)
9.5 lb / 4.3 kg (Each Speaker, with Bracket)
Packaging Info
Package Weight 12 lb
Box Dimensions (LxWxH) 17 x 13 x 10"
