VS-411XS

Name: VS-411XS
Brand: Kramer
SKU: VS-411XS
Price: 1068549 NGN
Availability: OutOfStock

Kramer

EAN: 7291063089931

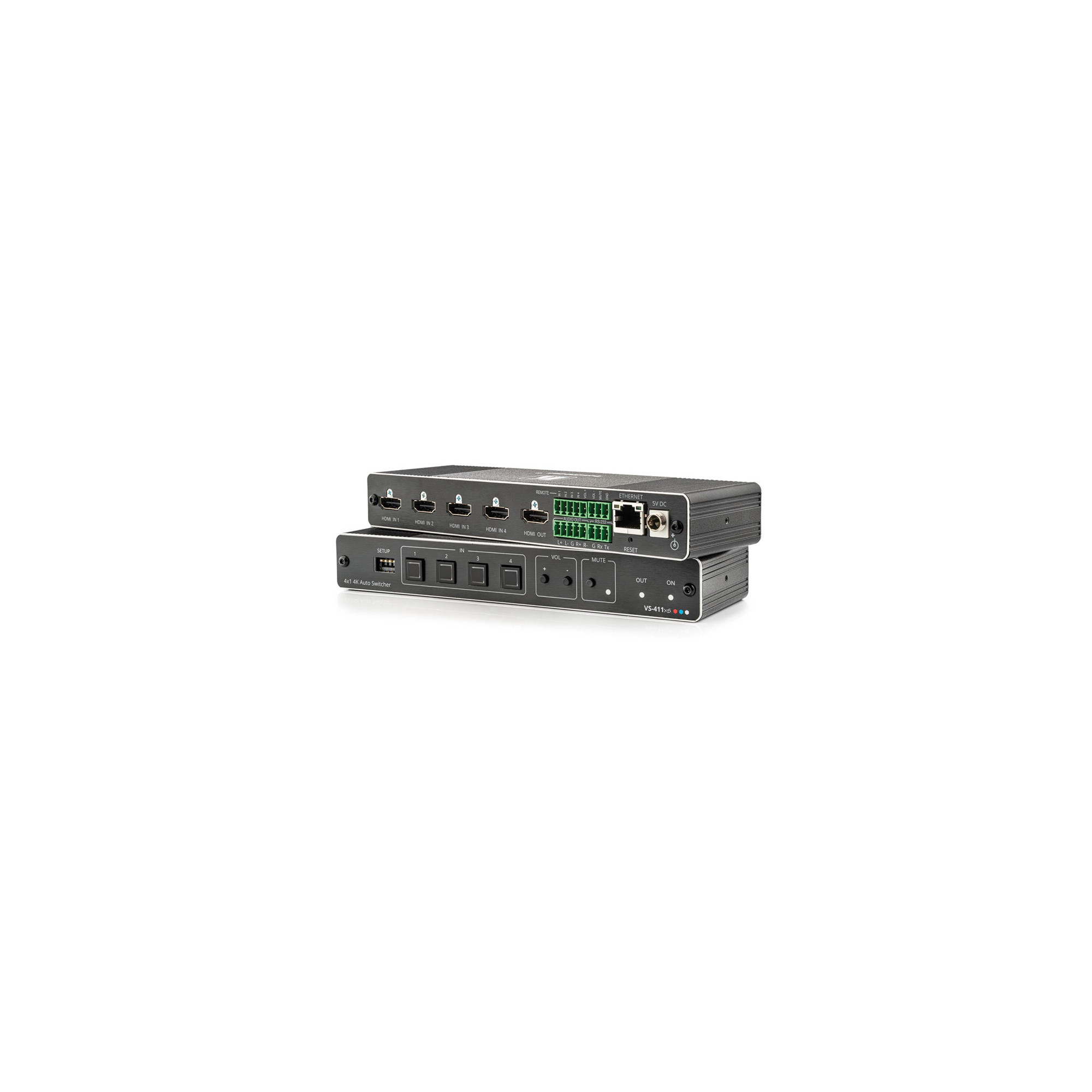

4x1 4K HDR HDMI Intelligent Auto Switcher

go to the technical sheet

₦ 1,068,549.00

₦ 993,999.00 VAT excl.

Available in 14 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

Kramer 4x1 4K HDR HDMI intelligent switcher for 4K HDR, HDMI video signals. VS-411XS offers an intelligent switching experience with built-in Maestro room control and the standard priority / last-connected switching function based on active video signal detection.

° 4x1 Plug & Play Switcher
° Powerful Built-in Maestro Room Control
° Intelligent IP-driven Control Gateway
° Up to 4K@60Hz (4:4:4) Resolution
° Audio De-embedding

Download

Datasheet

Download (1.09MB)

Connections
Inputs : 4 HDMI: On a female HDMI connector
Outputs : 1 HDMI: On a female HDMI connector -
Outputs : 1 Balanced Stereo Audio: On 5-pin terminal block connector

Ports
RS-232: On a 3-pin terminal block connector
Remote Contact Closure: On an 8-pin terminal block connector
Ethernet: On an RJ-45 connector

Video
Max Data Rate : 17.82GBPS (5.94Gbps per graphic channel)
Max Resolution : 4K@60 (4:4:4)
Compliance : HDR10 as specified in HDMI 2.0, HDCP 2.2

Power
Source : 5V DC, 4A
Consumption : 810mA

User Interface
Controls : Inputs selection, volume, and mute buttons, DIP-switches for configuring switching policy and audio de-embedding source, embedded web pages via IP

Enclosure
Size : DemiTOOLS®
Type : Aluminum
Cooling : Convection ventilation

Environmental Conditions
Operating Temperature : 0° to +40°C (32° to 104°F)
Storage Temperature : -40° to +70°C (-40° to 158°F)
Humidity : 10% to 90%, RHL non-condensing

Regulatory Compliance (Standards Compliance)
Health, Safety, Environmental : RoHs, WEEE, CE

General
Product Dimensions : 19.05cm x 5.96cm x 2.74cm (7.50" x 2.35" x 1.08" ) W, D, H
Product Weight : 0.3kg (0.7lbs) approx.
Shipping Dimensions : 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
Shipping Weight : 0.8kg (1.7lbs) approx.
