PT12X-USB-WH-G2

Name: PT12X-USB-WH-G2
Brand: PTZOptics
SKU: PT12X-USB-WH-G2
Price: 3243973 NGN
Availability: OutOfStock

PTZOptics

EAN: 0737993158875

12X Optical Zoom | USB 3.0, IP Network RJ45, HDMI, CVBS | 1920 x 1080p - White

go to the technical sheet

₦ 3,243,973.00

₦ 3,017,649.00 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

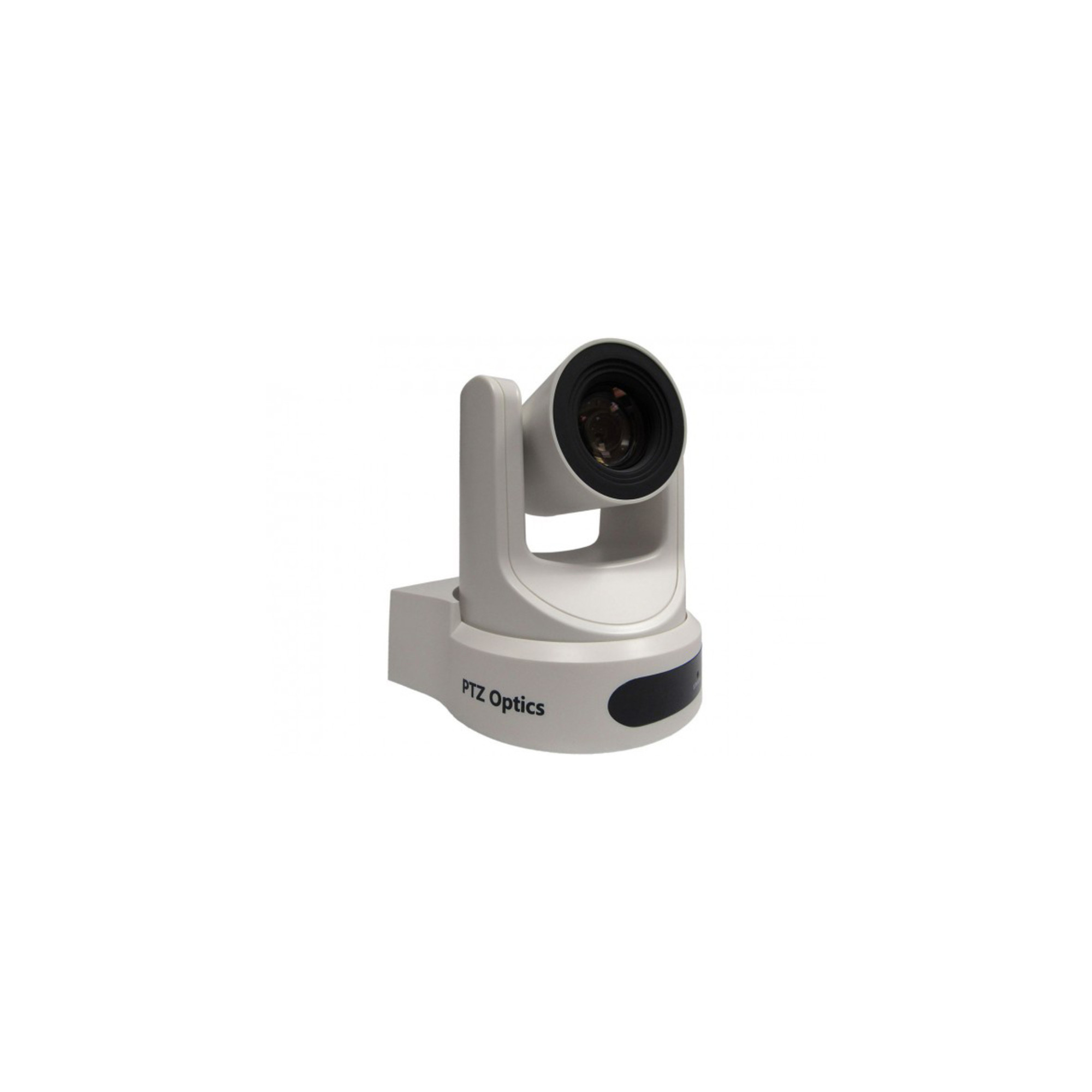

The PTZOptics 12X-USB is a 1080p camera with 12X optical zoom for capturing both wide angles and long
shots. With support for USB 3.0, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for
broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

72.5 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest "low noise CMOS sensor".
• UVC 1.5 (USB), RS232 & RS485 (Serial), and IP (LAN/WAN) control
• H.264, H.265, & MJPEG Streaming over RJ-45 LAN port
• HDMI, USB 3.0, & IP streaming (all 3 simultaneously)
• RTMP & RTSP IP streaming

What in the box:
12X Zoom USB 3.0 Camera
Power Adapter + Cord
USB 3.0 Cable
IR Remote Control
RS-232C Cable
User Manual

PTZ cameras

PTZOptics

PT-JOY-G4

₦ 1,383,954.00 VAT included

Available in 14 days

Camera & Lens
Video Sensor 1/2.7" CMOS, 2.12 Mega Pixels
Frame Rates 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
Frame Rates (CVBS) 576i/30, 480i/30 Communication
Focal Length 12x, F3.5mm-42.3mm, F1.8-F2.8 Baud Rate 2400/4800/9600 bits
Lens Zoom 12x
Field of View 72.5°
Min Lux 0.5 Lux at F1.8, AGC ON
Shutter Speed 1/30s - 1/10000s
SNR =55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 6.9° (tele) to 72.5° (wide)
Vertical Angle of View 3.9° (tele) to 44.8°(wide)
Working Environment Indoor

Pan & Tilt Movement
Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
Presets 10 via IR (255 via Serial or IP)

Rear Board
Video Output HDMI, USB 3.0, IP Streaming, CVBS
Network Interface RJ45
Audio Interface Line In, 3.5mm (USB & IP Stream Only)
Comunication RS-232, RS485, PELCO-D/P, UVC 1.5
Baud Rate 2400/4800/9600 bits
Power Supply JEITA type Power Adapter (DC IN 12V)
USB 3.0 Interface USB 3.0 (Requires Quad Core Processor)
USB 2.0 Interface Future Use

Electrical Index
Power Supply 12W (Max)
Input Voltage 12V DC (10.8 - 13.0V DC)

Physical
Dimensions (mm) 142W x 164H x 160D (198H max w/ Tilt)
Box Dimensions 229mmx254mmx229mm
Camera Weight 1.38 kg
