Amaran Peak

Name: Amaran Peak
Brand: Africa Broadcast Store Ltd
SKU: Amaran Peak
Price: 268348.7 NGN
Availability: InStock

EAN: 6977162450070

86.4Wh battery power system for lights, cameras and other devices

go to the technical sheet

₦ 268,348.70

₦ 249,626.70 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 26,834.87

Available 2 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

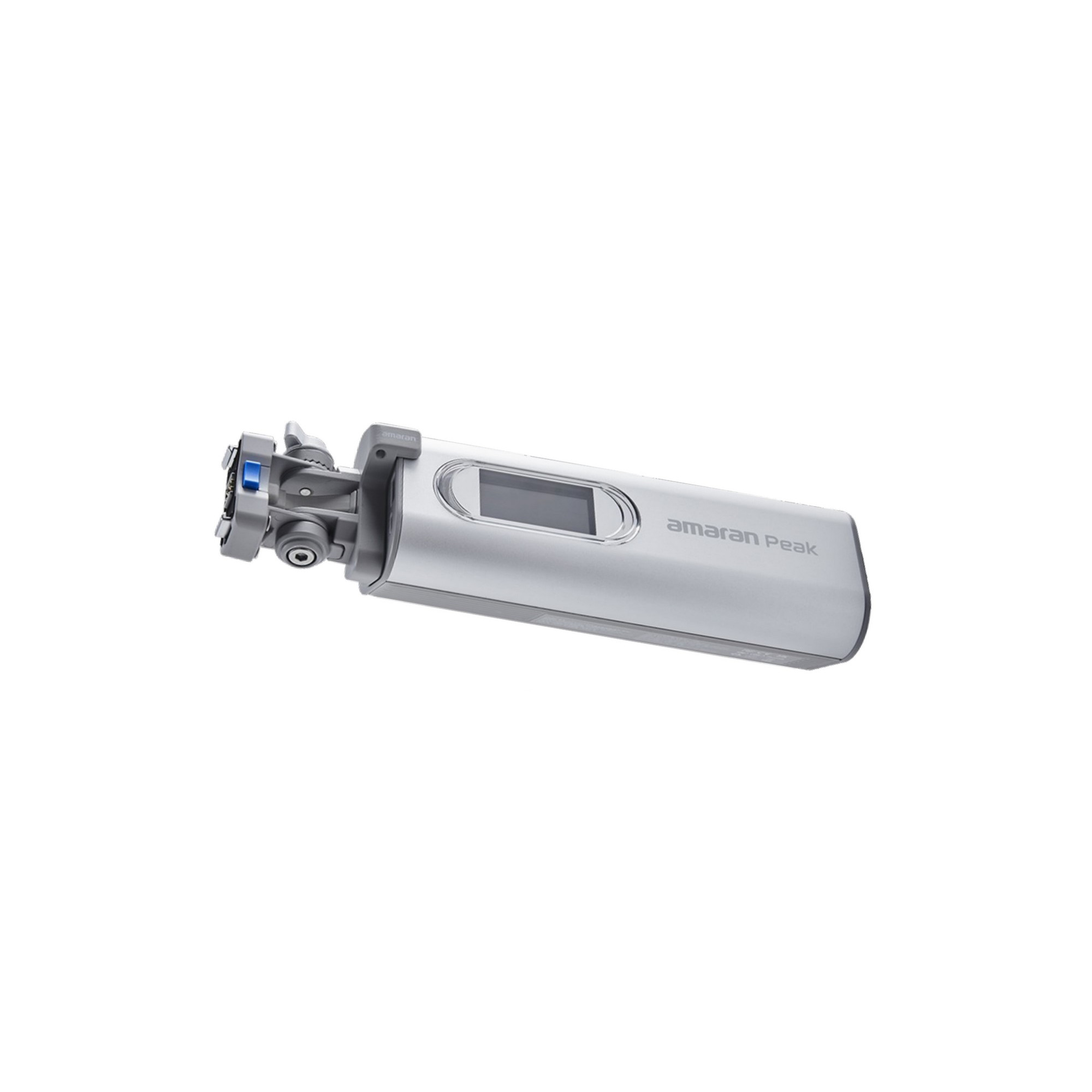

amaran 86.4Wh battery power system for lights, cameras and other devices

*The pictures is indicative

The amaran Peak is a 86.4Wh battery system for on-the-go creators — delivering up to 170W of output to power your entire setup.
With cable-free operation via the Ace E-Lock, 140W USB-C PD fast charging, and versatile mounting options, it's built to keep you powered - anywhere, anytime.

Cable-Free Power with Ace E-Lock
Power your lights without cables.
The amaran Peak delivers direct power to amaran Ace E-Lock compatible lights - like the amaran Pano 60c & 120c - with the included E-Lock Expansion Module.
Perfect for handheld or mounted setups, or clamped to your gear.

One System for All your gear
Ditch bulky NP-F and V-Mount setups.
With an 86.4Wh battery capacity that delivers up to 170W of output and 3 USB ports, the amaran Peak powers lights, cameras, and more - all from one compact battery.

More ways to powe and mount your lights
Go beyond the Ace E-Lock.
With the optional E-Lock Adapter and USB-C to DC Cable, the amaran Peak powers lights like the amaran COB 60d/x S and lets you mount them directly - handheld or on a stand.

Mount anywhere - Create everywhere
With built-in 3/8-16in and 1/4-20in mounting points and an optional Light Stand Clamp, the amaran Peak mounts directly onto light stands, tripods, or just about anywhere you shoot.

Real-Time Smart Display
Stay informed with a full-color smart display showing battery status, power flow, and alerts - so you can charge or create with confidence, wherever you are.

Stands - Hardware - Tools

Amaran Peak Light Stand Clamp

₦ 65,586.16 VAT included

Available 2 unit in 4 Days

Output
USB-C1: 5V - 3A, 9V - 3A, 12V - 3A, 15V - 3A, 20V - 5A, 28V - 5A (140W Max)
USB-A: 5V - 3A, 9V - 3A, 12V - 5A (30W Max)
USB-C1 + USB-A: 140W + 30W (170W)
USB-C1 + USB-C2 + USB-A: 65W + 65W + 18W
USB-C2: 5V - 3A, 9V - 3A, 12V - 3A, 15V - 3A, 20V - 5A, 28V - 5A (140W Max)
USB-C1 + USB-C2: 100W + 65W (165W)
USB-C2 + USB-A: 140W + 30W (170W)

Input
USB-C1: 5V - 3A, 9V - 3A, 12V - 3A, 15V - 3A, 20V - 5A, 28V - 5A
USB-C2: 5V - 3A, 9V - 3A, 12V - 3A, 15V - 3A, 20V - 5A, 28V - 5A

General
Battery Capacity (Max): 86.4Wh / 24,000mAh
Ports: 2x USB-C, 1x USB-A, 1x amaran Ace E-Lock
USB-C Max Power Input: 140W
Supported Protocols: PD, QC
Charge Time (140W): 60 Mins.
Storage Temperature: -20ºC - 80ºC / -4ºF - 176ºF
Control Method: Button
Noise Level: 0dBA
Conversion Efficiency: greater than/equal to 78%
Battery Capacity (Min): 82.08Wh / 22,800mAh
Max Total Output: 170W
Rated Capacity: 13,200mAh (5V - 3A)
Charge Time (65W): 75 Mins.
Operating Temperature: -10°C - 40°C / 14°F - 104°F
Screen Type: TFT
Cooling Method: Passive Cooling
Cycle Life: 800+ Cycles (80% Capacity)

Dimensions
amaran Peak Only: 17.6 x 6.4 x6.1cm / 6.93 x 2.52 x 2.40in
USB-C Cable Length: 50cm / 19.69in
Ace E-Lock Module: 6.92 x 6.10 x 5.02cm / 2.72 x 2.40 x 1.98in

Weights
amaran Peak Only: 791.0g / 1.74lbs
Ace E-Lock Module: 243.0g / 0.54lbs
