Laowa Venus Optics Full Frame Anamorphic Adapters 1.33-1.40 PLPL
go to the technical sheet
  • -2.5%
Save 2.5%
€ 1.520,37

€ 1.414,30 VAT excl.

€ 1.559,35
Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant
Laowa Venus Optics Full Frame Anamorphic Adapters 1.33-1.40 PLPL.

Applied to OOOM 25-100mm, the Laowa 1.33X rear anamorphic adapter allows you to expand the cinematic frame ratio to 2.35:1 on a 16:9 sensor.

Installation
The horizontal and vertical focal lengths of anamorphic projection are different so the image will be blurry if the axis of the adapter is not perfectly aligned with the sensor. Rotate the manual adjuster until both the horizontal and vertical axis are in perfect focus.

Collimation
Availability of shim rings for collimation.

Features:
Soft bokeh
Pleasant flare effect
1/2 T-stop dimming

Laowa 1.4x Full Frame Expander expands the sensor coverage from Super 35 format to Full Frame without causing loss of image quality.
OOOM coverage can be converted from RED Monstro 8K VV6K HDt to RED Monstro 8K VV- 8K HD with the application of 1.4X Full Frame Expander Adapter

Features:
Compensates for perceptible aberrations on OOOM while maintaining its performance and vintage texture of images
Less impact on focal length range than other adapters on the market
1-stop dimming and focal length change, transforming OOOM into a 35-140mm T4 lens
A switch button allows you to easily convert focal lengths and t-stop scale to display parameters congruent with the application of the Expander
Compatible with other Super35 optics on the market

Specifications (1.33X):
Fit Ratio: 1.33x
Cover circle diameter: 29mm
Diameter: 89mm
Length: 55mm
Weight: 270 g
Mount: PL-PL

Specifications (1.40X):
Focal length extension: 1.4X
Cover Circle Diameter: 45.6mm (on OOOM)
Impact on brightness: -1 stop
Diameter: 89mm
Length: 57.5mm
Weight: 330gr
Mount: PL-PL

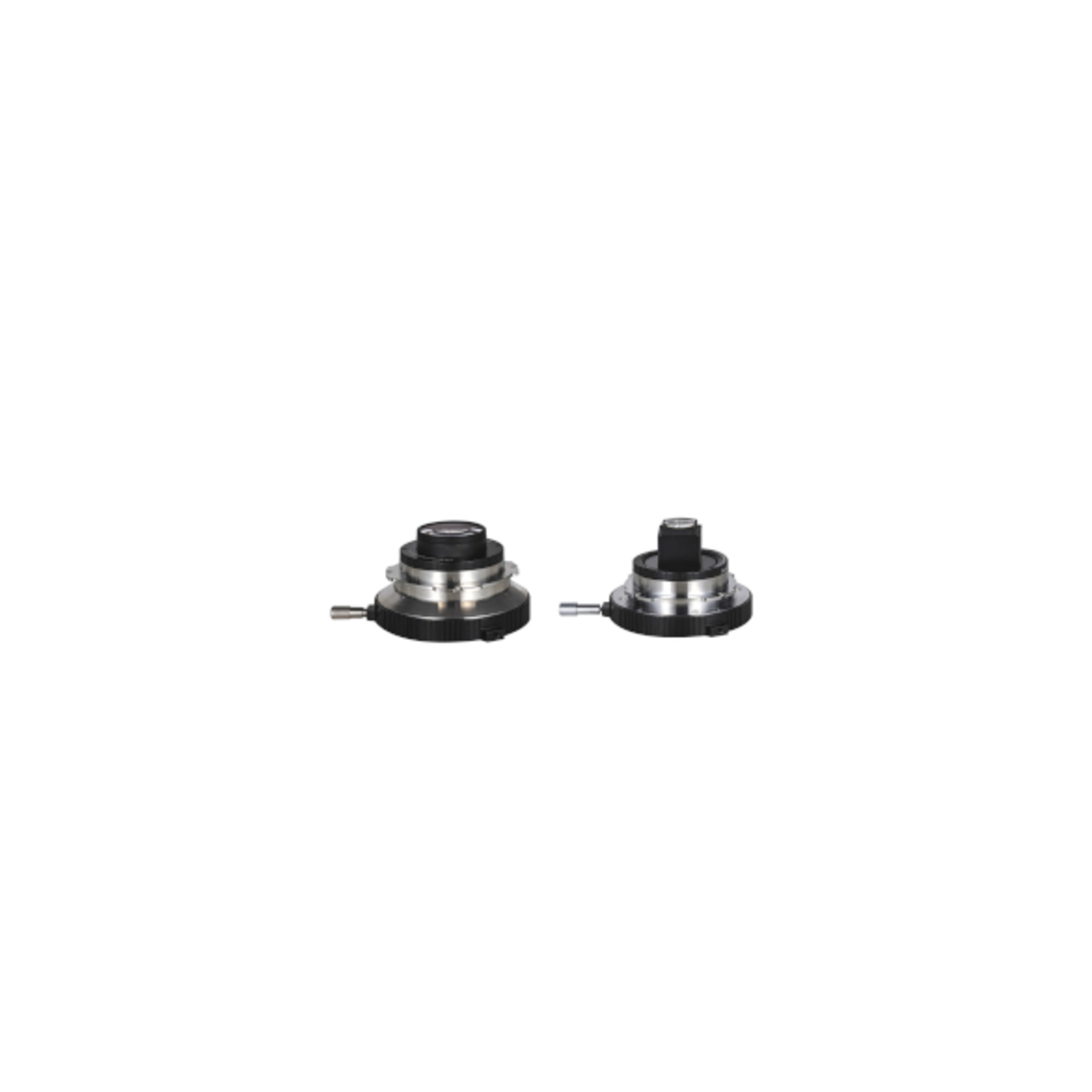

Adapter Kit for Laowa OOOM 25-100mm, includes 1.33x Anamorphic Adapter and 1.4x Expander Full Frame Adapter.
