MK Lens conversion

Name: MK Lens conversion
Brand: MTF
SKU: MK Lens conversion
Price: 690955 NGN
Availability: OutOfStock

MTF

Fuji MK Lens conversion from E mount to RF Mount

go to the technical sheet

₦ 690,955.00

₦ 642,749.00 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

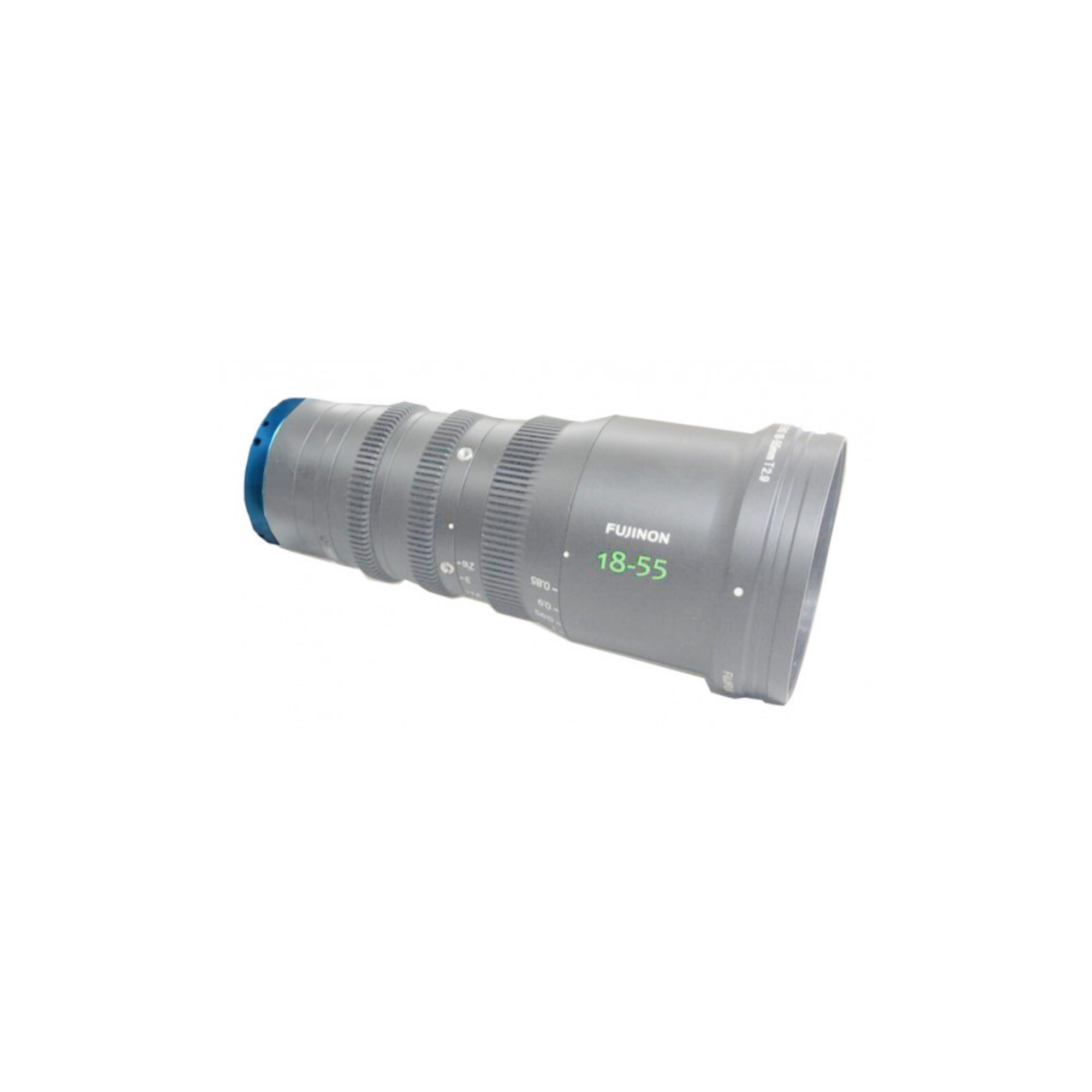

Fuji MK Lens conversion from E mount to RF Mount

A 3 part conversion kit to change the mount of the Fuji MK lens from E or MFT to the new Canon RF mount.
The lens can then be used on the new range of Canon RF mount cameras as well as the Red Komodo and Raptor cameras.

The kit consists of:
Replacement collar (green ring on the lens)
Our own stainless steel RF mount
Light baffle
Fixing screws
Rear lens cap

1. Remove E mount from the lens.
This is done by undoing the 4 small black screws on the mount.
(Do not lose the shims under the mount)

2. Remove Green Collar from the lens
This is done by removing the 3 cross head screws which are around the outside of the collar.
Also around the outside are some very small set screws which are used to centralise the mount.
These may have to be loosened and for this you will need a 1mm Allen key.

3. Fit our Blue Collar in its place
There is a dimple on the side which should line up with the indicator lines on the side of the lens.

4. Take plastic baffle tube from the back of the E mount using the same 3 fixing screws, attaching the same way to the RF mount

5. Fit RF mount to lens.
It is easier to put the shims onto the back of the RF mount, line up the shim cut outs for the screws, then fit to the lens using the screws provided.

Adjust back focus as normal.
