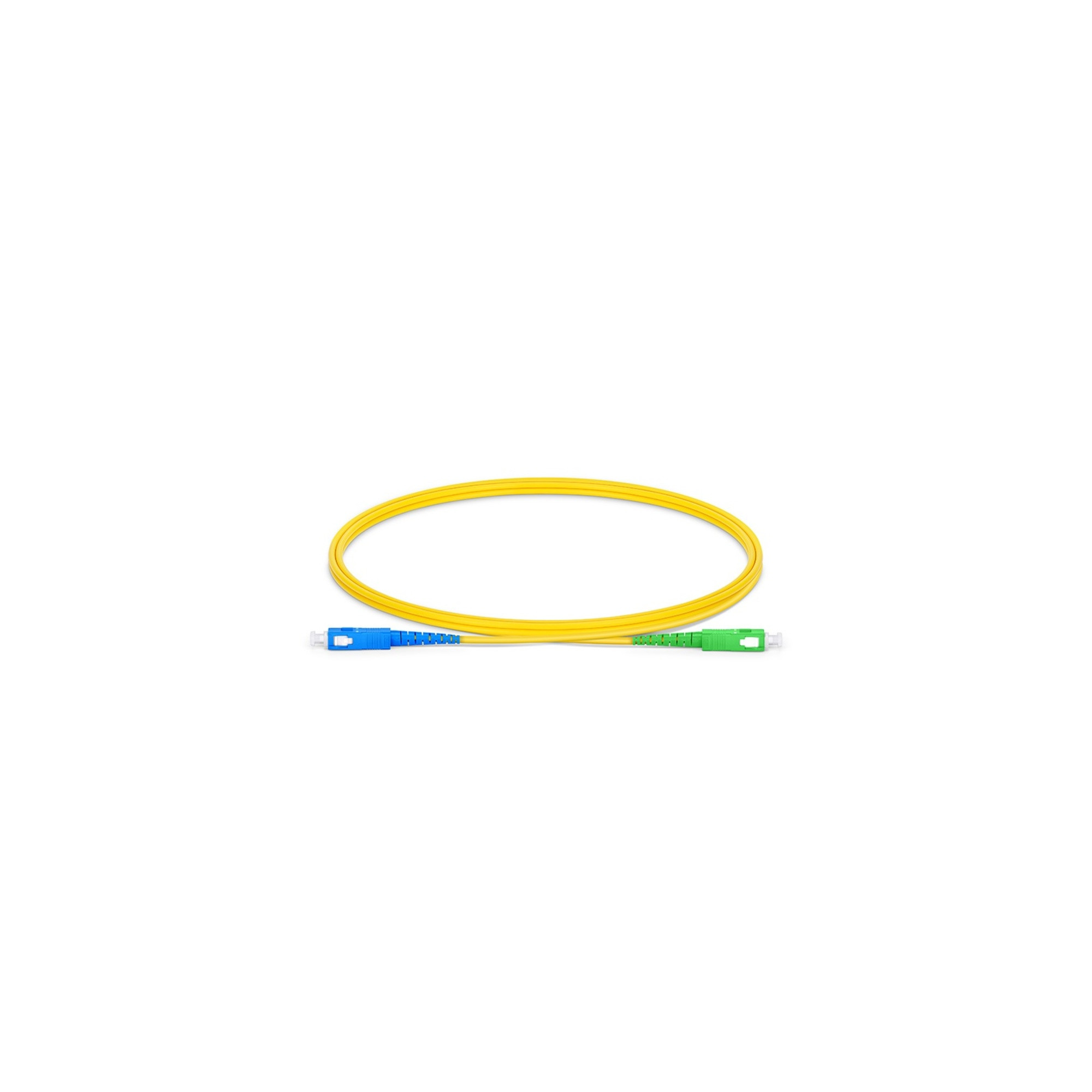

SC UPC to SC APC Simplex OS2 PVC fiber optic patch cable 2 meters
go to the technical sheet
₦ 12,523.00

₦ 11,649.00 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
Single mode fiber optic cable 9/125µm with flame retardant PVC jacket (Riser) Lenght 2 meters.
Precision Grade A zirconia ferrule connectors ensure low leakage.
G.657.A1 Bend insensitive fiber and 10 mm min. Radius of curvature.
The optical test guarantees the performance of the network.
Compliant with TIA-604 (FOCIS).

High quality and economical 9/125µm single mode bend insensitive fiber optic cable.
The cable has less attenuation when bent or twisted than traditional fiber optic cables and this will make the installation and maintenance of fiber optic cables more efficient. It can also save more space for high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks and any place where fiber patch cables are needed.

This fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can carry data up to 10 km at 1310 nm or up to 40 km at 1550 nm.

Connector Type: SC UPC to SC APC
Fiber Grade: G.657.A1 (Compatible with G.652.D)
Fiber Mode: OS2 9 / 125µm
Wavelength: 1310/1550 nm
Insertion loss: = 0.3dB
Return loss: = 50dB
min. Bending radius (fiber core): 10 mm
min. Bend radius (fiber cable): 10 / 5D (dynamic / static)
Attenuation at 1310 nm: 0.36dB / km
Attenuation at 1550 nm: 0.22dB / km
Fiber count: Simple
Cable diameter: 2.0mm
Cable jacket: PVC
Polarity: A (Tx) to B (Rx)
operating temperature: -20 ~ 70 ° C
Storage temperature: -40 ~ 80 ° C

1x Fiber Cable single mode with connector SC UPC - SC APC - 2 meters
