P-A21-JCP

Name: P-A21-JCP
Brand: Proaim
SKU: P-A21-JCP
Price: 3070.61 EUR
Availability: OutOfStock

Proaim

EAN: 0655003982596

Proaim Alphabet 21ft Jib Crane Package mod P-A21-JCP

go to the technical sheet

-2.5%

Save 2.5%

€ 3.070,61

€ 2.856,38 VAT excl.

€ 3.149,34

Available in 14 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

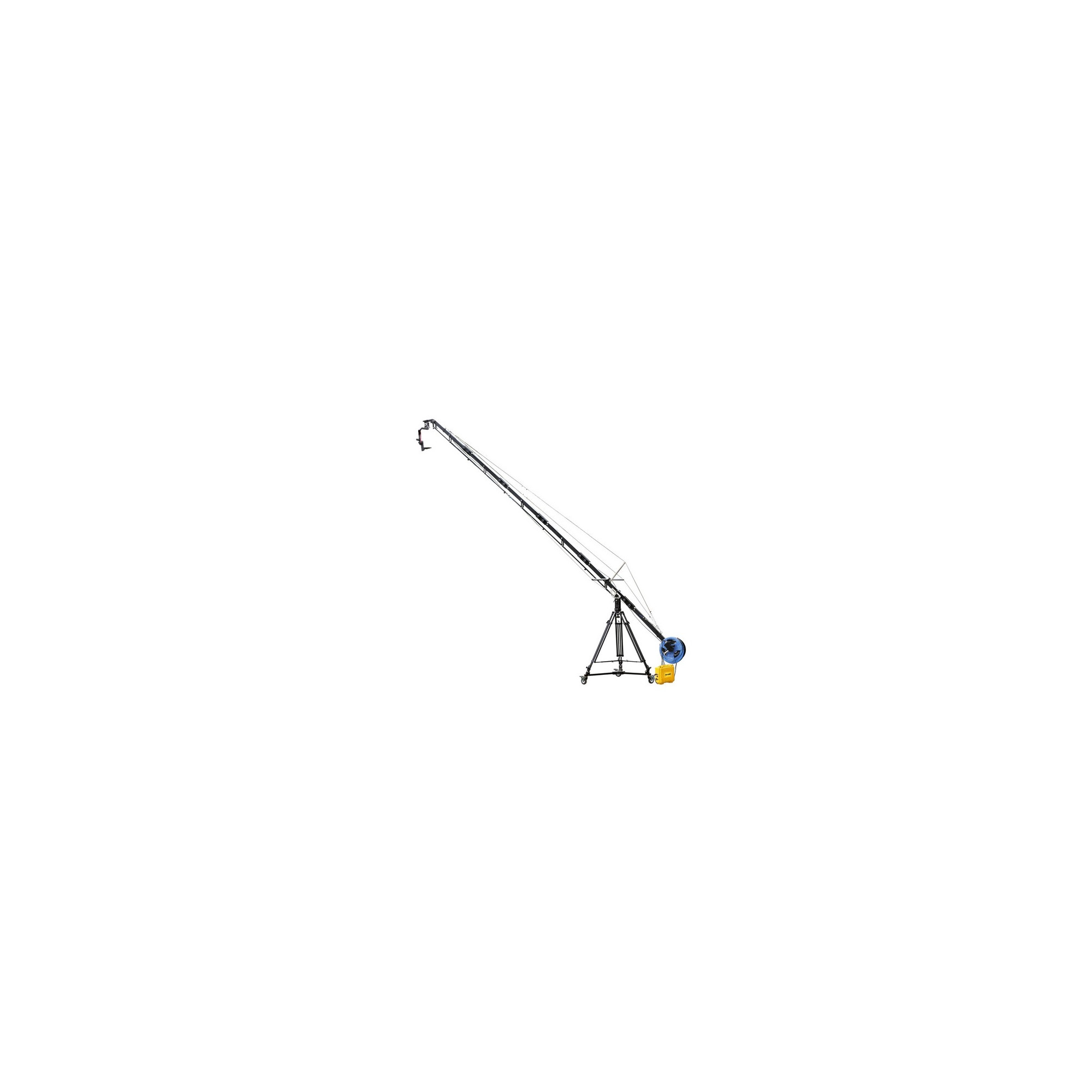

Capture smooth, dynamic sweeping pans and camera rises with the professional Alphabet 21' Jib/Crane Arm from Proaim. The heavy-duty aluminum and steel Alphabet 21' features a toolless setup design and is made up of a jib arm with a weight rod to add separately available counterweights.

The arm extends to 21' maximum length and supports loads up to 33 lb. It is made up of six modular sections, and each can be removed to create a shorter arm. The foam-lined tilt handle allows you to tilt the camera mount from the base and lock it into position, and cables and supports provide smooth movement. When mounted, the arm can pan 360° and its tilt axis locks in place using the tilt lock. Multiple color-coded extension and safety cables to assemble the kit are included.

Download

Manuale

Download (5.29MB)

Proaim Alphabet 21'' Jib/Crane Arm Specs:

Material of Construction : Aluminum and Steel
Load Capacity : 33 lb / 15 kg
Counterbalance System : 1 x Rod
Tilt Lock : Yes
Maximum Length : 21'' / 6.4 m
Panning Range : 360°

Proaim Senior 2-Axis Pan/Tilt Head with 12V Joystick Control Specs:

Material of Construction : Metal, Plastic
Axes : 2, Pan and Tilt
Panning Range : 360°
Tilting Range : 360°
Load Capacity : 16.5 lb / 7.5 kg
Rotation Speed : 360° Pan and Tilt: 7 Seconds to 2 Minutes
Power Input : 100 to 240 VAC
Power Output : 12 VDC, 2 A
Control Input : 4-Pin XLR
Weight : 6.6 lb / 3 kg

Proaim Heavy-Duty Portable Tripod Dolly Specs:

Tripod Foot Compatibility : Spiked Feet
Load Capacity : 1102.30 lb / 500 kg
Locking Wheels : Yes
Cable Guards : No
Material : Aluminum, Plastic
Weight : 23.59 lb / 10.7 kg

6 x Jib Sections
1 x Support Rod
1 x Cable Guide
1x Weight Rod with Weight Closer
8mm Male Female Knob Set
10mm Female Knob
3/8" Male Knob
Handle
1 x (Red) 11ft
1 x (Red) 6.7ft
1 x (Red) 3.3ft
2 x (Blue) 11ft
2 x (Blue) 6.7ft
2 x (Blue) 3.3ft
Jib Stand with Aluminum Spreader (CST-100-01)
Sr. Pan Tilt Head (PT-SR)
Lineo Portable Camera Dolly (P-PRT-D)
