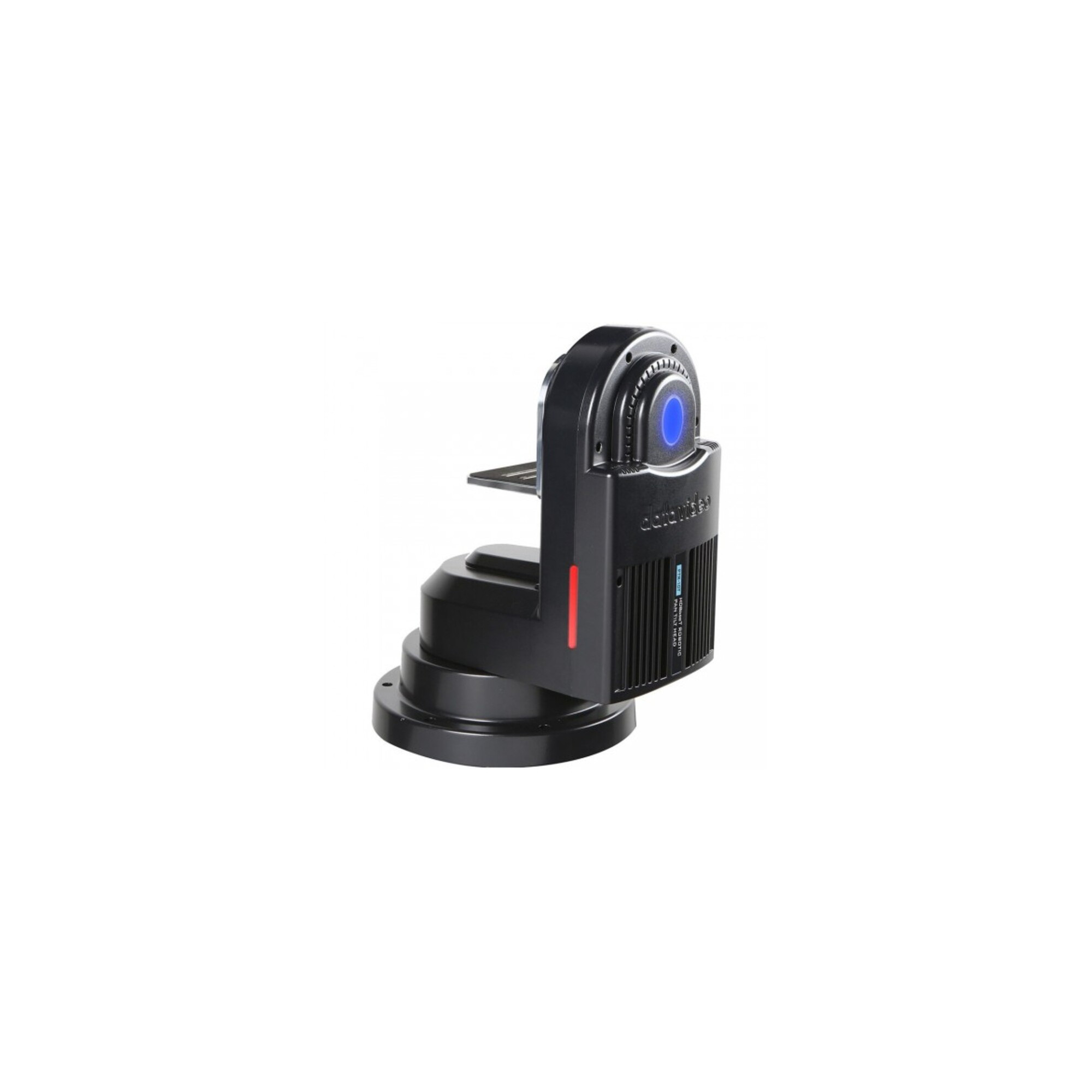

PTR-10TMKII

HDBaseT Robotic Pan and Tilt Head

-PTR-10T
Robotic Pan Tilt Head (HDBaseT)
Transform any camera into a HDBaseT PTZ camera.

Multiple signal interface
SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, LANC
-Diversified controller options:
RMC-180, HS-1600T, HS-1500T with Control of Pan, Tilt, Zoom and much more
-Strong and sturdy aluminum alloy material design:
Tally light built-in, great design for Live event

-Supports Zoom control:
For Datavideo block cameras and various brand lens with power supported

-PTR-10T Robotic Pan Tilt Head:

Video Interface HDMI x 1
SDI x 1
HDBaseT x 1 (HDBaseT)
Video Output 2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit RMC-180
RMC-300C
VISCA Protocol Controller
IP Control
IR remote
Panning / Tilting Range Pan: 340°
Tilt: ±45°
Panning / Tilting Speed Pan: 0.2~15° /Sec
Tilt: 0.1~10° /Sec
Preset Pan/Tilt position 50
Control Distance 1,200M by RS422
100M by DVIP
Control Protocal Sony VISCA
DVIP
Control Input RS-422
HDBaseT
Maximum Load 4 KG Max
Control Output RS-232
RS-422
BX-Lens
LanC
Power Requirement DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply DC 12V, 2A Max
Operating Temp. Range 0~40 C°
Weight: 3.4 KG
Dimension: 230 x 190 x 300 mm
