CM236-12G

DISPLAY
Panel: 23.6"
Physical Resolution: 3840x2160
Aspect Ratio: 16:9
Brightness: 300cd/m
Contrast: 1000:1
Viewing Angle:178°/178° (H/V)
HDR: ST2084 300/1000/10000/HLG
Supported Log formats: SLog2/SLog3/CLog/NLog/Arrilog/Log or User...
Look up table support (LUT): 3D LUT (cube format)
Technology: Calibration to Rec.709 with optional calibration unit

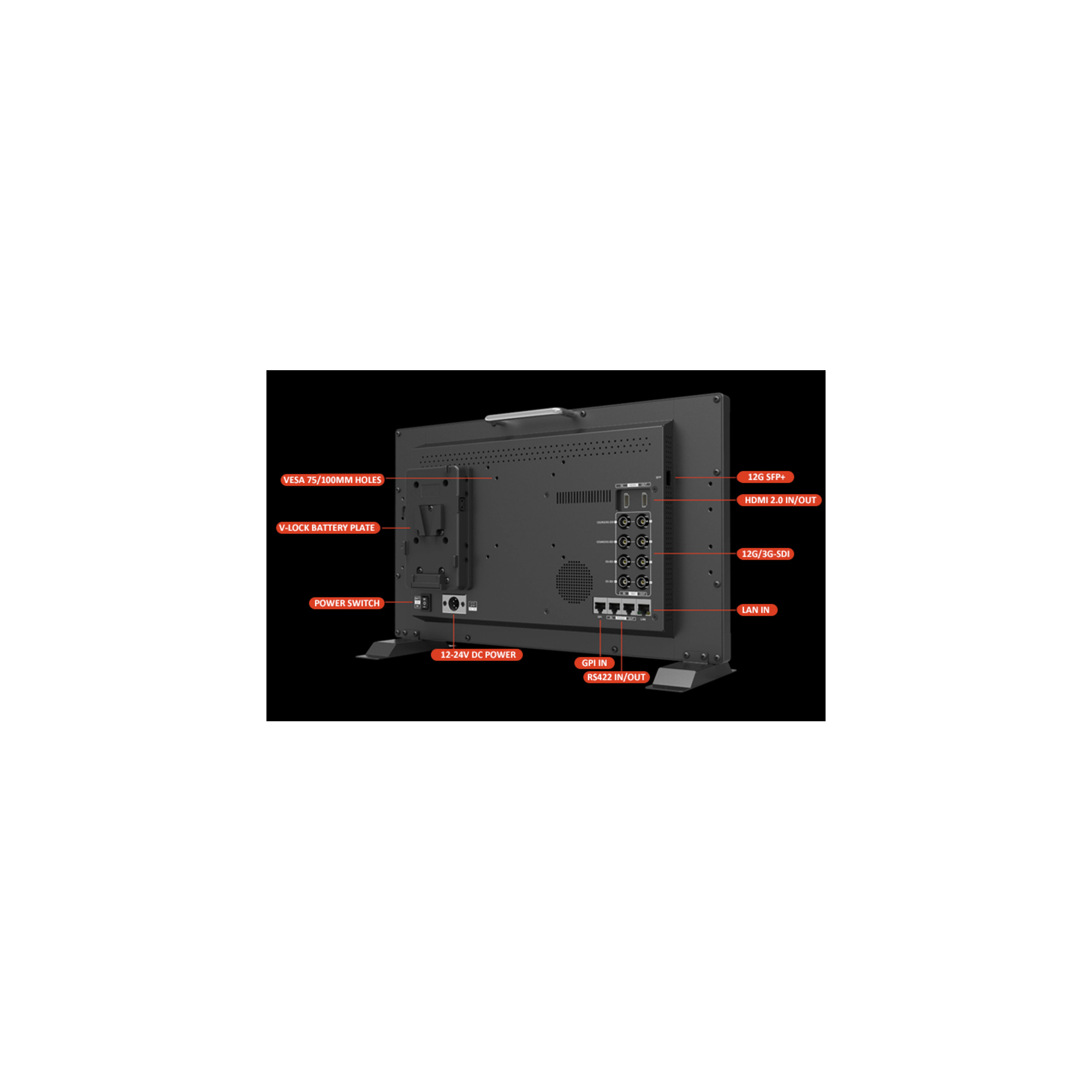

VIDEO INPUT
SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Singie/Dua/Quad Link)
SFP: 1x12G SFP+ (Fiber module for optional)
HDMI: 1XHDMI 2.0

VIDEO LOOP OUTPUT
SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI: 1XHDMI 2.0

SUPORTED FORMATS
SDI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PSF 24/25/30, 1080i 50/60, 720p 50/60,720p 50/60...
SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PSF 24/25/30, 1080i 50/60, 720p 50/60...
HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...

Audio In/Out (48kHz PCM Audio)
SDI: 16ch 48kHZ 24-bit
HDMI: 8ch 24-bit
Ear Jack: 3.5mm
Built-in Speakers: 2

REMOTE CONTROL
RS422: In/out
GPI: 1
LAN: 1

POWER
Input Voltage: DC 12-24V
Power Consumption: =55W (15V)
Compatible Batteries: V-Lock or Anton Bauer Mount
Input Voltage (Battery): 14.8V nominal

ENVIRONMENT
Operationg Temperature: 0°C-40°C
Storage Temperature: -20°C-60°C

OTHER

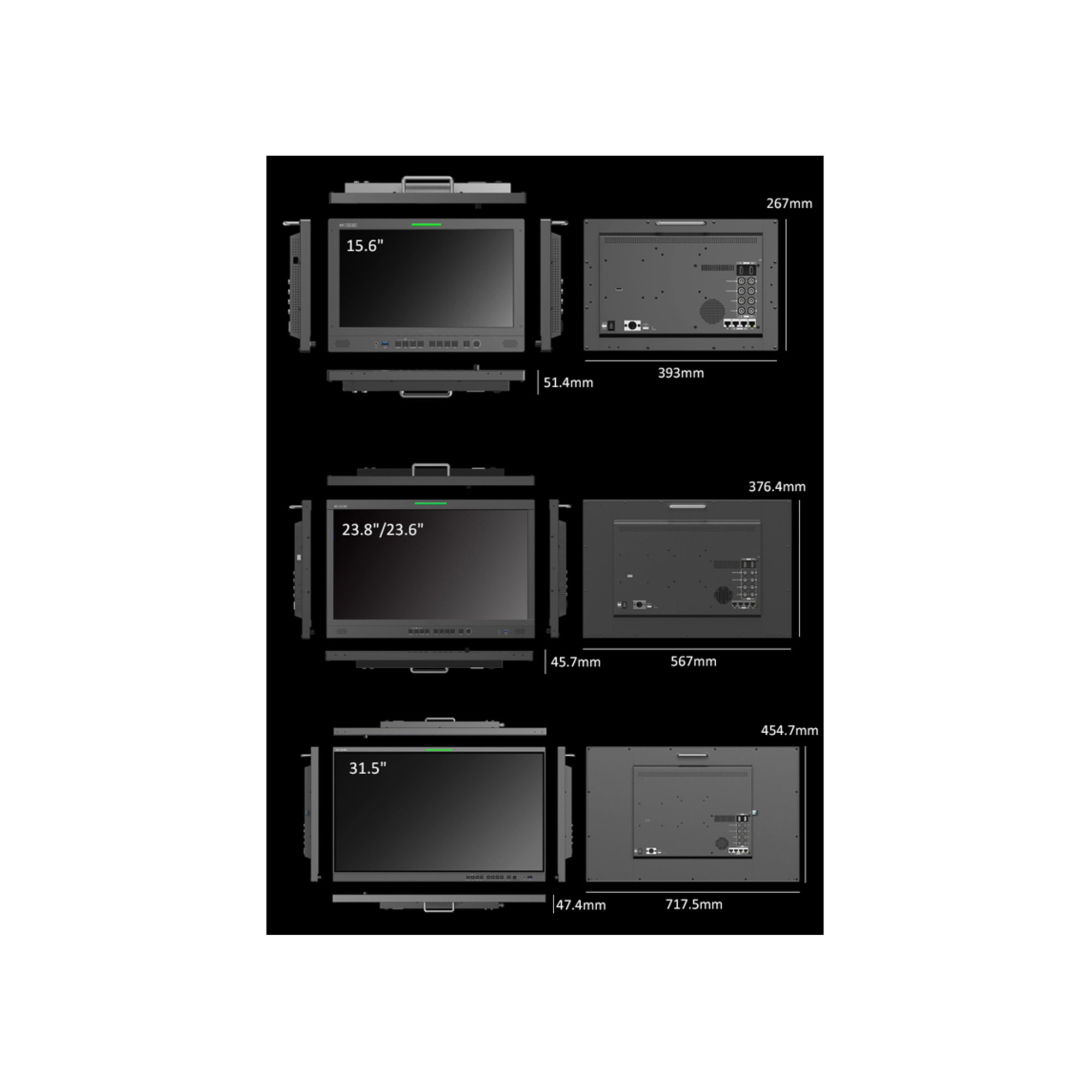

Dimension (LWD): 567mm x 376.4mm x 45,7mm
Weight: 7,4Kg
