U3C
Xvive
₦ 369,749.00 VAT excl.

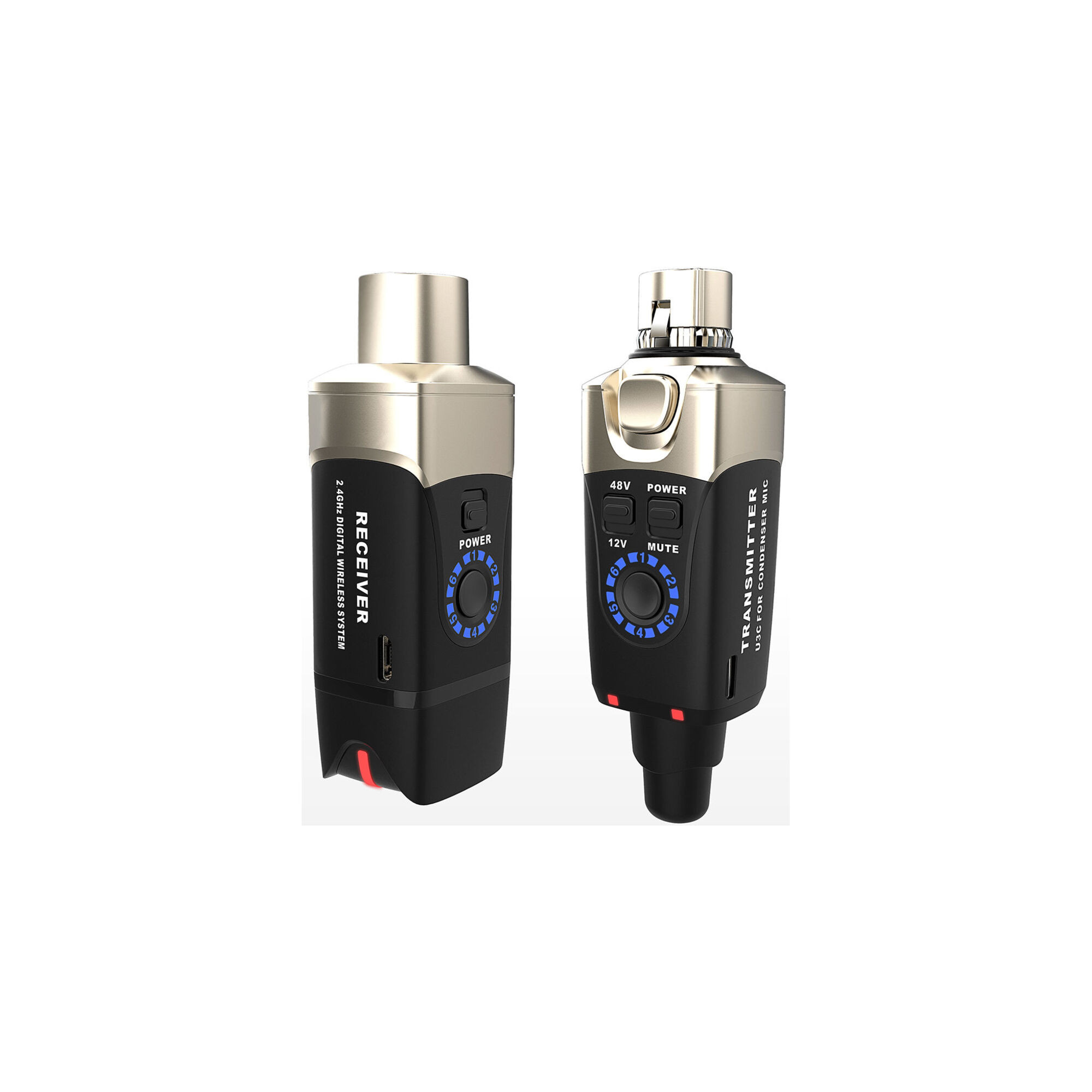

The transmitter supplies 12V or 48V phantom power to accommodate your favorite condenser microphone, and sends uncompressed 24-bit / 48 kHz audio to the receiver up to 90' away. The internal rechargeable batteries power the U3C Set for enough time to handle an entire concert, worship service, or long-form presentation.
Utilizes the 2.4 GHz band for license-free worldwide use
Uncompressed 24-bit / 48 kHz audio resolution with high dynamic range and a broad 20 Hz to 20 kHz frequency response
Low system latency under 5 ms
Simple setup with no cables required
Plug-on transmitter supplies 12V or 48V phantom power for condenser microphones
Receiver plugs directly into the XLR input of a mixing console, an audio interface, or an active PA system
Easy menu-free channel selection on transmitter and receiver
Six available channels allow up to six systems to be used at one time (additional systems available separately)
Balanced 3-pin XLR input and output connectors
Transmitter power/mute switch for easy signal control at the mic
Internal rechargeable batteries provide three to seven hours of operating time for the transmitter and up to five hours of use for the receiver
Includes USB cable for convenient recharging
For use with balanced condenser microphones only—phantom power may permanently damage unbalanced or dynamic microphones
Receiver
Form Factor Plug-In
Mounting Options Plug-In
Antenna 2 x 1/4 Wave Sleeve Dipole, Fixed
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic Output
Frequency Response 20 Hz to 20 kHz-3 (Dependent on Mic)
Network I/O None
Word Clock I/O None
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Impedance XLR Output:
470 Ohms (Balanced)
Approximate RF Sensitivity -88 dBm
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 860 mAh
Battery Charging Time 2 Hours
Approx. Battery Life 5 Hours
AC/DC Power Adapter VDC Not Included
Display & Indicators 1 x LED (Channel)
1 x LED (Sync)
1 x LED (Battery Status, Power)
Housing Metal, Plastic
Operating Temperature 0 to 134°F / -18 to 57°C
Dimensions 1.2 x 3.9 x 1.1" / 31 x 98 x 29 mm
Weight 3.2 oz / 92 g
Transmitter 1
Transmitter
Form Factor Plug-On
RF Output Power Up to 10 mW (EIRP)
Audio I/O 1 x XLR 3-Pin Female Balanced Input (Lockable)
Phantom Power +12 V
+48 V
Pad None
Muting Off/On Switch
Audio Input Level 2.8 Vpp (Max)
Signal Processing None
Frequency Response 20 Hz to 20 kHz-3 (Dependent on Mic)
Sync Method Manual
Antenna 1 x 1/4 Wave Sleeve Dipole, Fixed
Approximate RF Sensitivity -88 dBm
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 1000 mAh
Battery Charging Time 2 Hours
Approx. Battery Life 7 Hours
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 1 x LED (Channel)
1 x LED (Battery Status, Power)
Housing Metal, Plastic
Operating Temperature 0 to 134°F / -18 to 57°C
Dimensions 1.2 x 3.9 x 1.1" / 31 x 98 x 29 mm
Weight 3.8 oz / 108 g
General
Packaging Info
Package Weight 0.955 lb
Box Dimensions (LxWxH) 6.4 x 4.7 x 2.6"
