PJ-NLM-15-30

Nanlux NL Mount Projection Attachment for Evoke Series (15-30°) - 2130889

Enjoy the flexibility that the NL Mount projection attachment for the Nanlux Evoke series brings to your productions.
With zoom and focus compatibility, this projection attachment enables high precision lighting with ultimate control over the shape of the light.
Easily project a background image or get a larger output with your Evoke 900C, 1200, 1200B or 2400B fixtures.
Use the zoom ring to create the desired focus with precision, the cutting shutters or the optional iris to shape the light.

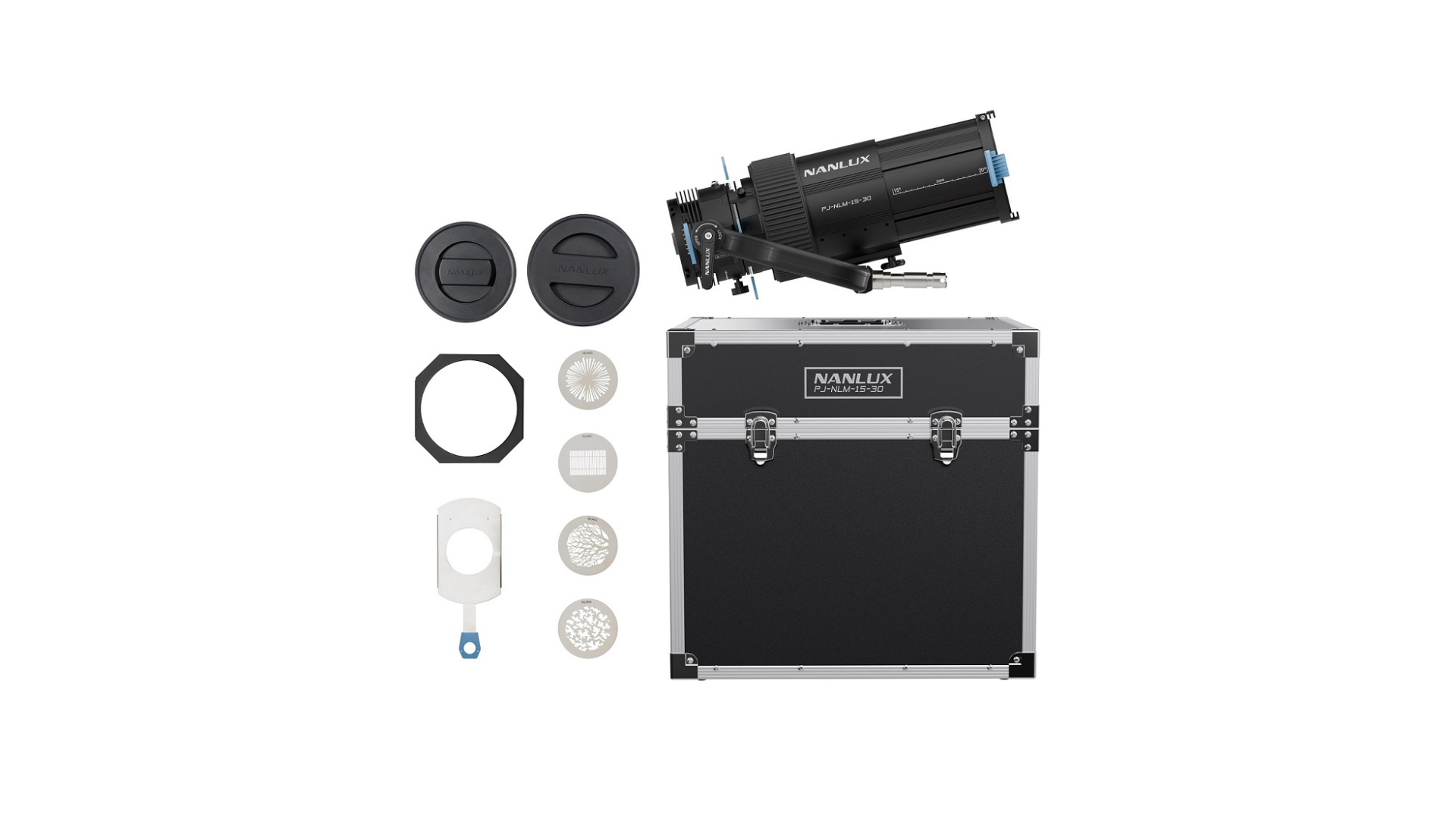

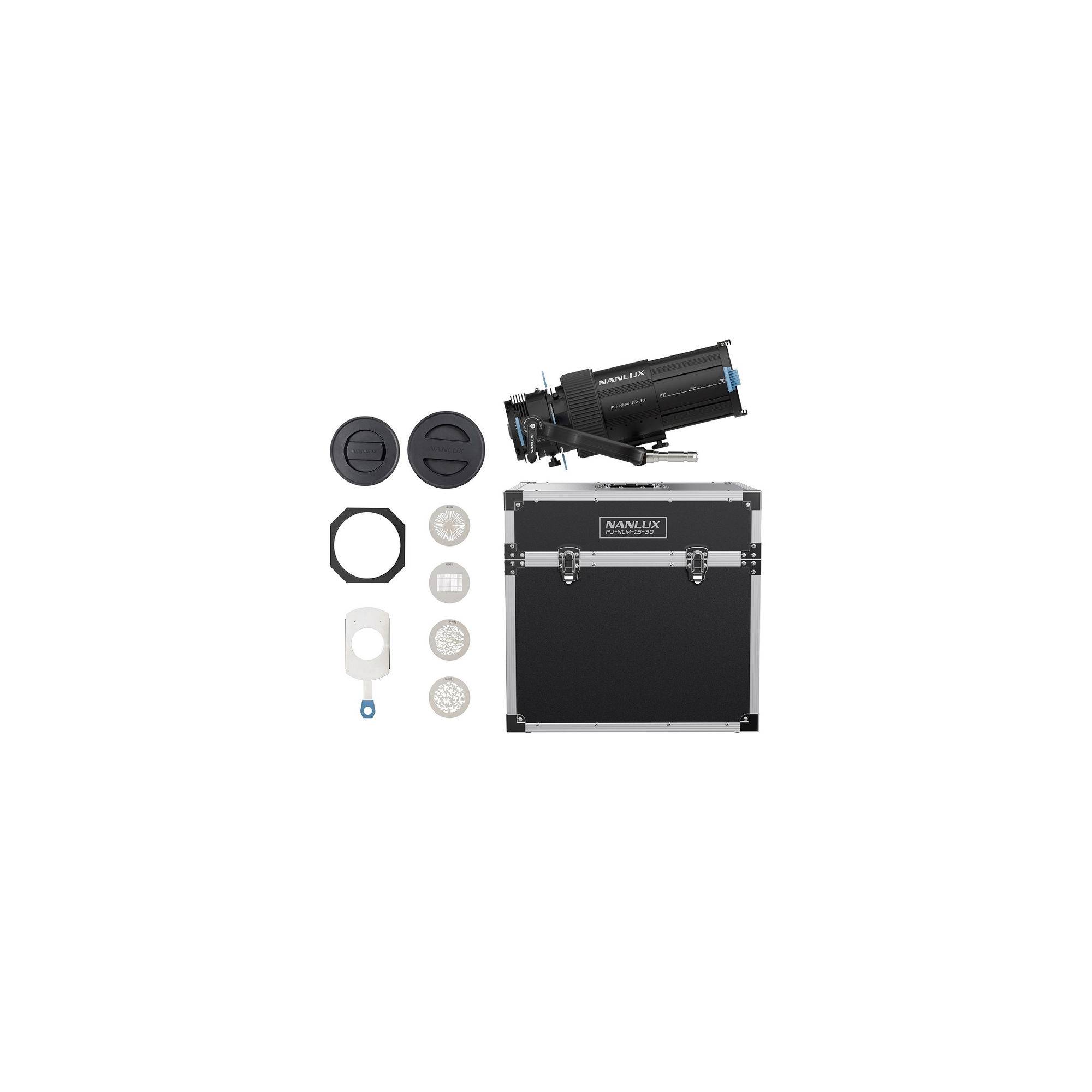

A supplied gobo holder allows one of the four included gobos to be attached to the fixture to create different patterns.
Users will also receive a gel frame to add optional coloured gels.
The fixture ships in a robust aluminium case that can withstand the rigours of travel to and from set.

More power
When paired with Evoke series LEDs, this projection attachment can produce the brightest possible light.
Dramatically increases the power of the 900C, 1200, 1200B or 2400B lights it is used with.
For example, the Evoke 900C is 7.4 times brighter than its bare light when used with this attachment.
It achieves up to 32,720 lux at a distance of 9.8' (15°, 5600K).

Convenient 15-30° zoom range
The adjustable 15-30° zoom, which extends or retracts, allows precise control of the lighting without physically moving the light.

Zoom ring
A smooth zoom ring can be adjusted by rotating to project a focused light that can be defocused to suit the user.

Aspherical Optical Design
The aspherical lens with optical coating can effectively improve light transmittance and ensure 78% beam uniformity.
It eliminates chromatic aberrations and minimizes distortion, while the optical coating improves color temperature accuracy.
The result is a well-controlled beam and minimal light loss.

90° Rotatable Lens Barrel
Easily adjust the beam angle with a 90° rotatable lens barrel without having to move the shutter or gobo.

NL Mount
Equipped with Nanlux's proprietary NL mount, the accessory can be securely mounted to suit your lighting needs.
You can expand your lighting effects by combining it with optional reflectors.
