Aida

0783970764751
AIDA Imaging 6mm f/2.4 3MP M12 Lens for AIDA HD-NDI-MINI
go to the technical sheet
€ 52,00

€ 48,37 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

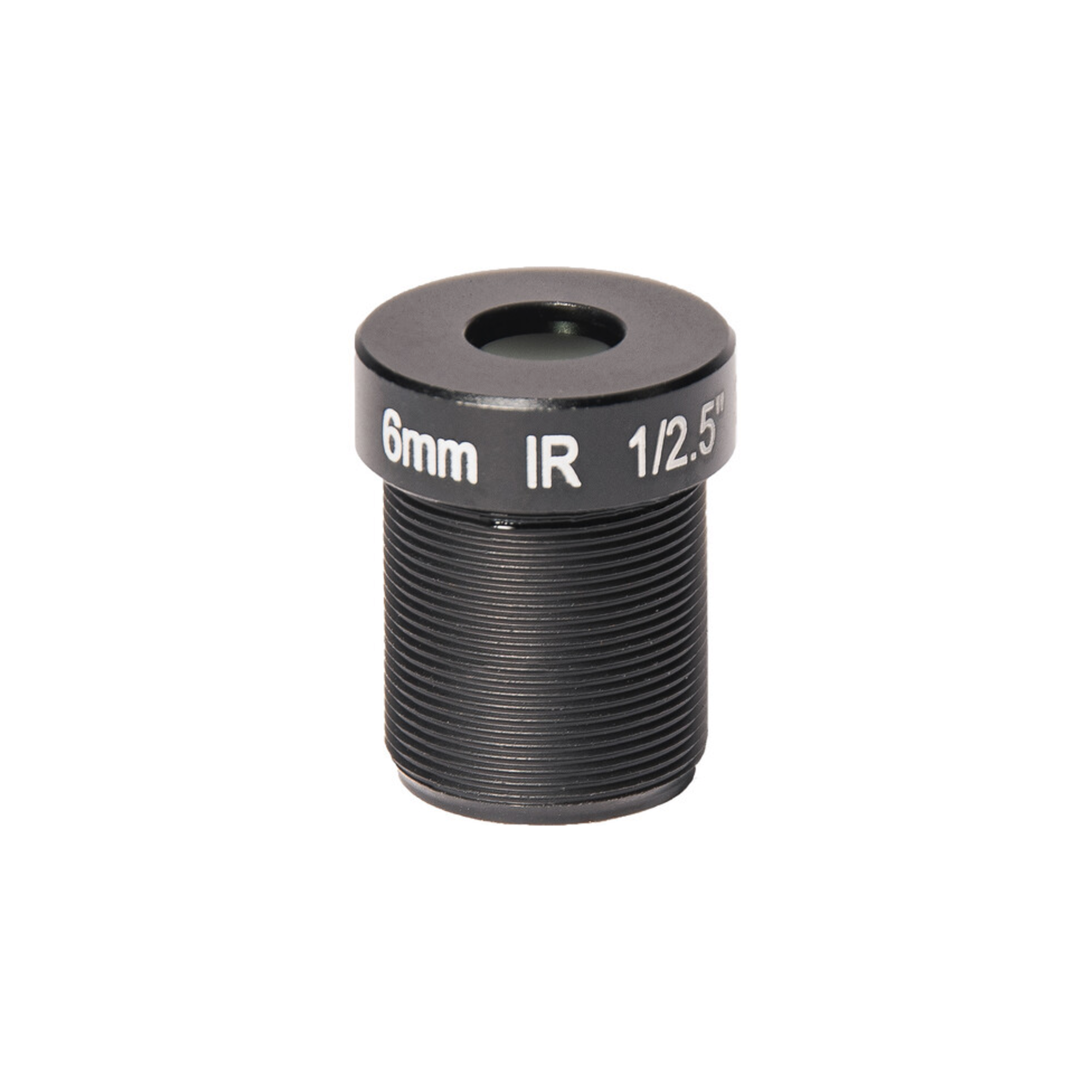

AIDA Imaging 6mm f/2.4 3MP M12 Lens for AIDA HD-NDI-MINI

AIDA Imaging offers this 6mm f/2.4 3MP M12 Lens for AIDA HD-NDI-MINI as an alternative to the HD-NDI-MINI's preinstalled 3.2mm fisheye lens.
This 6mm lens provides a narrower 60° field of view when compared to the 3.2mm model; this tighter image helps to prevent distortion on the edges of the frame.
These features extend the utility of the extremely compact camera from AIDA, making the most of its progressive CMOS sensor.
While this lens has been designed specifically for use with the HD-NDI-MINI, it will also perform well with any camera equipped with an M12 lens mount and a 1/2.5" or smaller image sensor.

Lens Mount: M12
Sensor Compatibility: 1/2.5", 1/3" (3 MP)
Focal Length: 6mm
Back Focal Length: 8.1mm
Maximum Aperture: f/2.4
Angle of View:
° 1/2.5"-Type Sensor Horizontal: 60°
° 1/3"-Type Sensor Horizontal: 52°
Working Distance: Not Specified by Manufacturer
Focus Type: Manual Focus
Iris Type: Fixed
Distortion: -20%
IR Corrected: Yes
Operating Temperature: -4 to 140°F / -20 to 60°C
Dimensions: 1.4 x 1.8" / 35.4 x 45.9 mm
Weight: 0.1 oz / 2 g

AIDA Imaging 6mm f/2.4 3MP M12 Lens for AIDA HD-NDI-MINI
