CS-5.0-12MP

Name: CS-5.0-12MP
Brand: Marshall
SKU: CS-5.0-12MP
Price: 240058 NGN
Availability: OutOfStock

Marshall

5mm F2.0 12MP 4K/UHD CS Mount Lens (AOV approx. 87°)

go to the technical sheet

₦ 240,058.00

₦ 223,310.21 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

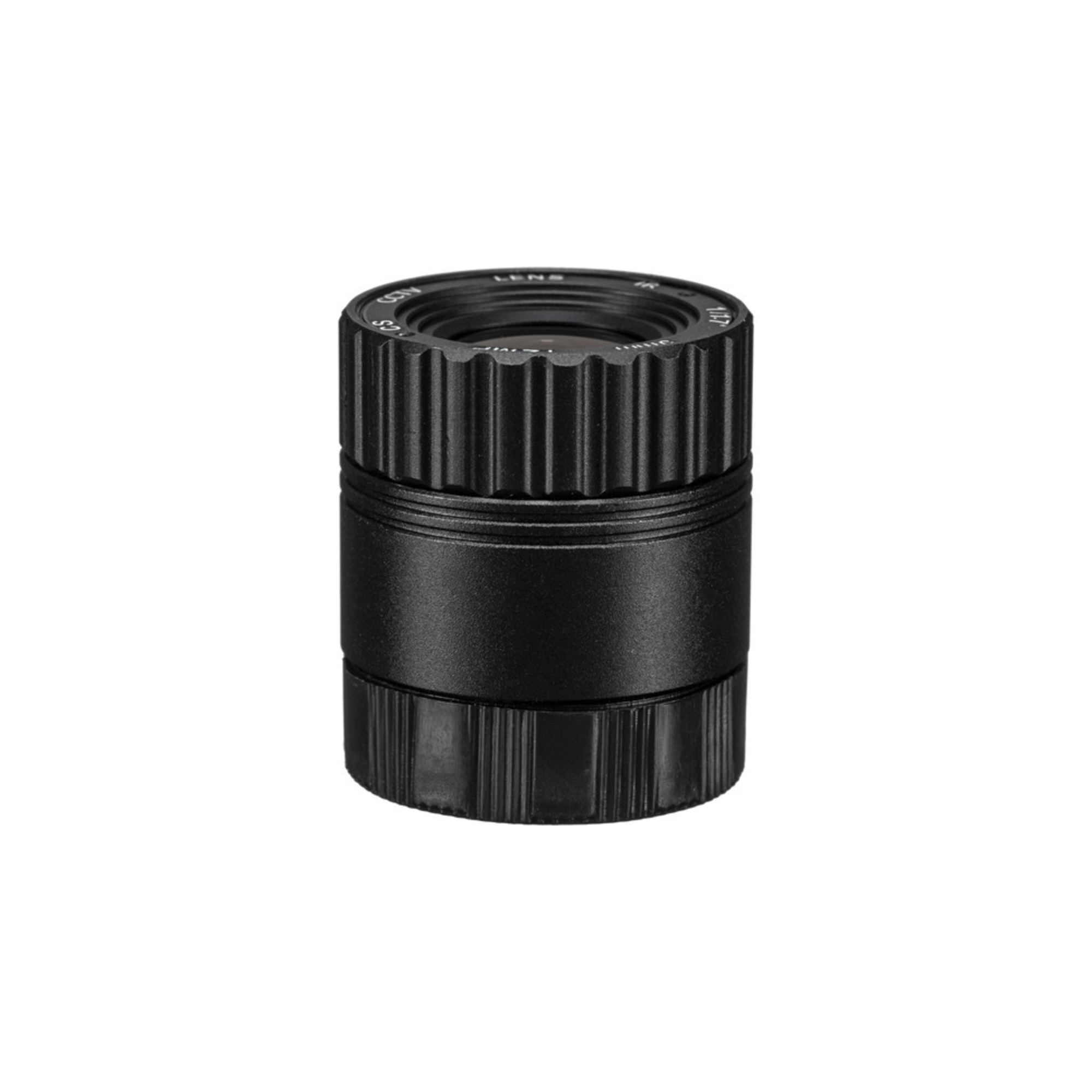

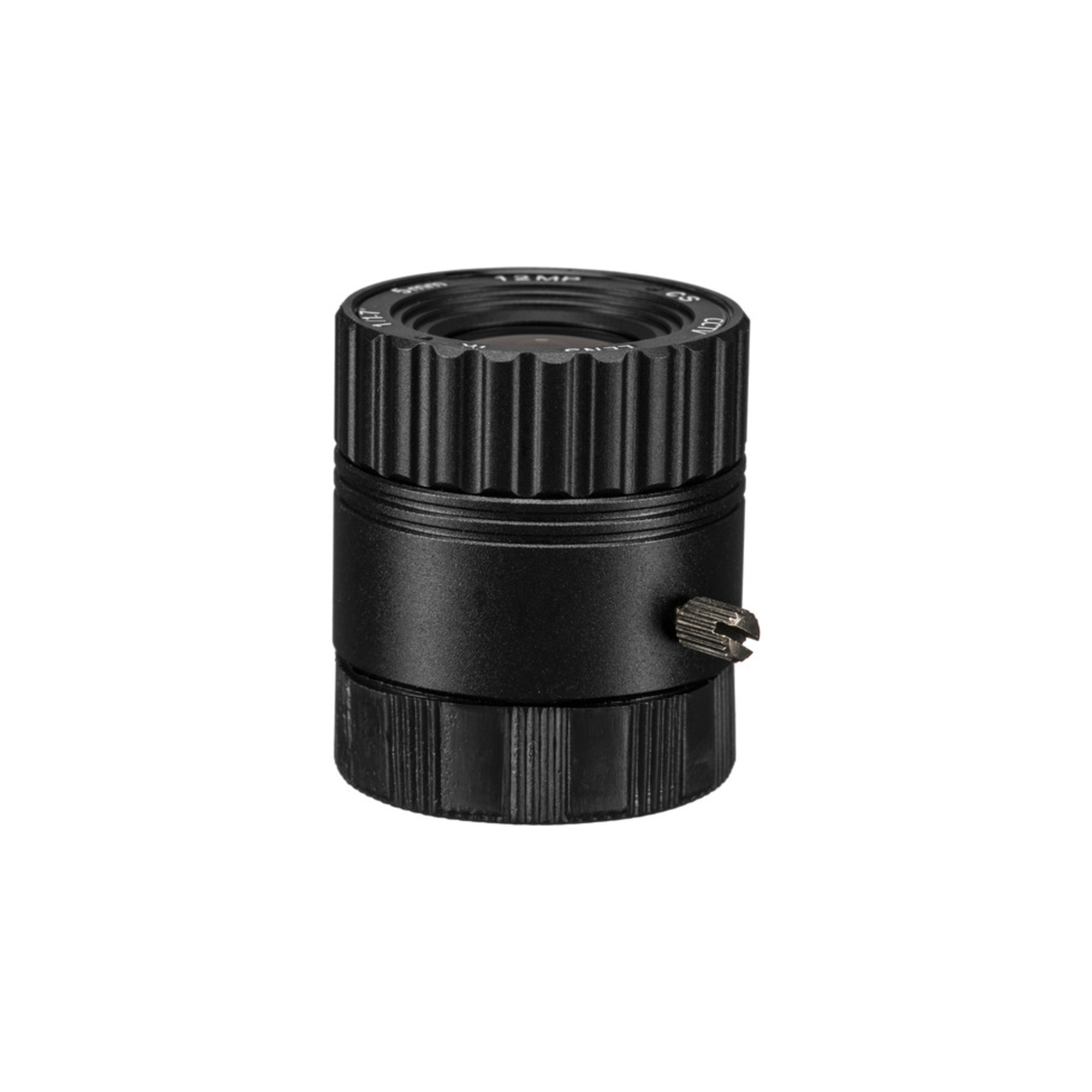

Marshall 5mm F2.0 12MP 4K/UHD CS Mount Lens (AOV approx. 87°)

The CS-Mount 5mm Fixed Lens from Marshall Electronics is designed for use with 12MP cameras that have a 1/1.7" sensor.
This lens has a 5mm focal length that delivers an 87° horizontal field of view.
It is IR corrected and features fixed iris operation.

- IR corrected
- f/2 aperture
- 6.39mm back focal length

Lens Mount: CS
Sensor Compatibility: 1/1.7", 1/2.5", 1/3"
Focal Length: 5mm
Back Focal Length: 6.39mm
Maximum Aperture: f/2
Angle of View:
- 1/1.7"-Type Sensor: Diagonal: 114.4° | Horizontal: 87° | Vertical: 61.8°
- 1/2.5"-Type Sensor: Diagonal: 87° | Horizontal: 68.6° | Vertical: 49.7°
- 1/3"-Type Sensor: Diagonal: 70.9° | Horizontal: 55.5° | Vertical: 41.2°
Minimum Focus Distance: From Front of Lens: 0.98'' / 0.3 m
Focus Type: Fixed Focus
Iris Type: Fixed
Distortion: -43.7%
IR Corrected: Yes
Operating Conditions: 12 to 92°F / -20 to 60°C
Flange Back Length: 0.49" / 12.5 mm
Dimensions (Ø x L): 1.1 x 1.23" / 28 x 31.3 mm
Weight: 1.44 oz / 40.9 g
