Q110

Name: Q110
Brand: Africa Broadcast Store Ltd
SKU: Q110
Price: 1017701 NGN
Availability: OutOfStock

Beltpack, industry standard headset (4 pin), use with any IP switch

go to the technical sheet

₦ 1,017,701.00

₦ 946,699.00 VAT excl.

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

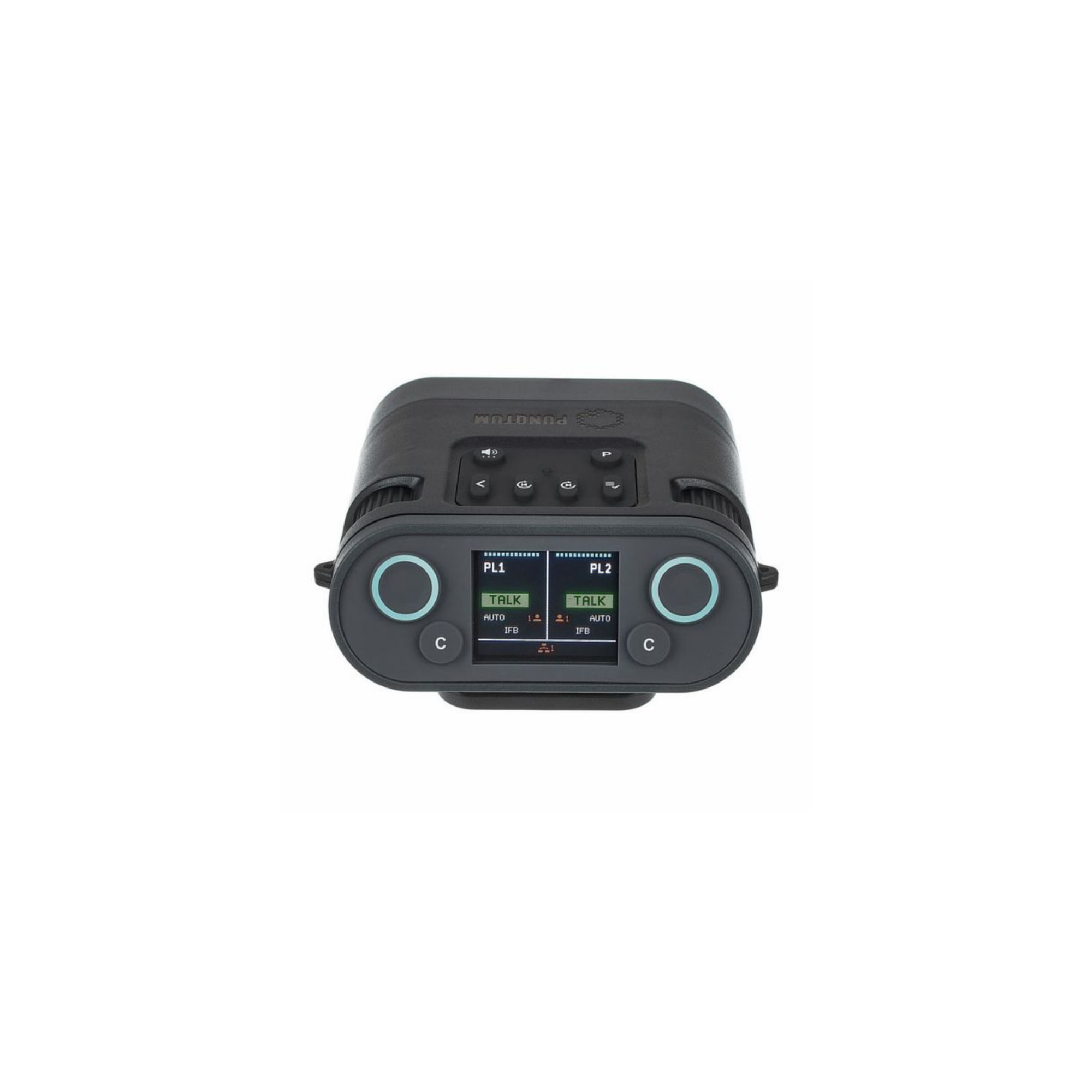

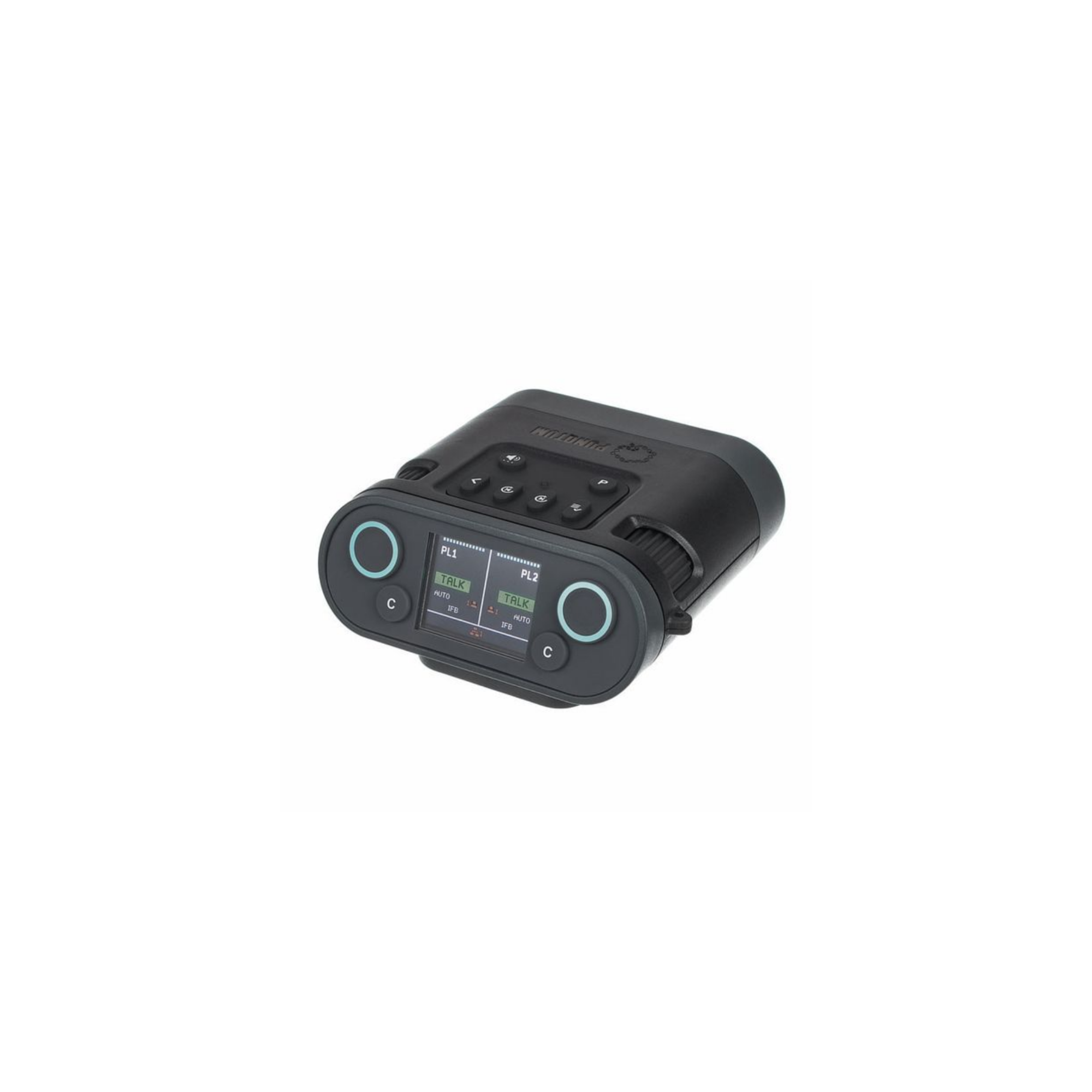

PunQtum Beltpack, industry standard headset (4 pin), use with any IP switch

The easy-to-use and ergonomic Q110 Beltpack offers two channels of partyline intercom and is packed with many useful features: power can be supplied via standard PoE switch or from our speaker station, beltpacks are daisy-chainable to up to eight units on a single network connection and you can even replay missed comms like voice-mail.
It's the perfect solution for improved team communication during events from small to large.

- Plug and Play
- Powered by any PoE source (Switch/Injector)
- Daisy-chain an unlimited number of belt packs (dependent on PoE source)
- Audio replay of missed calls (up to 30s)
- No master station needed
- Supports industry standard headsets (4-Pin)
- Works with any IP switch
- Talk/Listen to any 2 out of 32 partylines
- 2 configurable "Talk-to-many" channels
- Flexible configuration
- Choose 1 out of 4 program inputs*
- Operate 4 out of 32 GPIO outputs*
- Talk to max. 4 PA channels*
- On- and Offline configuration software (Win/Mac)
(*) Only with speaker station

Beltpack
Power Source:
- PoE (max. 15W)
- PoE+ (max. 30W)
- 4-pair PoE (max. 90W)
Power consumption: 2.5W typ. 3.5W max.
Sampling Rate 1: 16 kHz
Headset Connector: XLR 4pin male
LAN/PoE Connector: RJ-45 etherCON
Environment: IP53
Operating Temp.: -10° to +50°C
Relative humidity: 0 to 90%, non condensing
Intercom connection: RJ-45 etherCON
Beltclip: Easy removable, spring loaded clip
H x W x D: 111mm x 110mm x 40mm
Weight: 255g

Headset
Output impedance: 27 Ohm
Output level: + 18.5 dBu (max.)
Frequency response: 20Hz to 10kHz (+0/-0.25dB)
Distortion @ 1kHz: <-73 dB (0.02%)
Dynamic range (20kHz): 95 dB (A-weighted)

Microphone Input
Type: Dynamic, Electret
Full-scale input range: 95dB (A-weighted)
Distortion:
< -75 dB (0.02%) @ + 4dBu FS (min. gain)
< -68 dB (0.04%) @ -30dBu FS
< -49 dB (0.35%) @ -53dBu FS (max. gain)
Dynamic range:
- 92 dB (min. gain)
- 59 dB (max. gain)
