EVADE XTreme EVXT4 Industrial Full-Duplex Wireless Intercom
go to the technical sheet
₦ 3.824.883,80

₦ 3.558.031,44 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

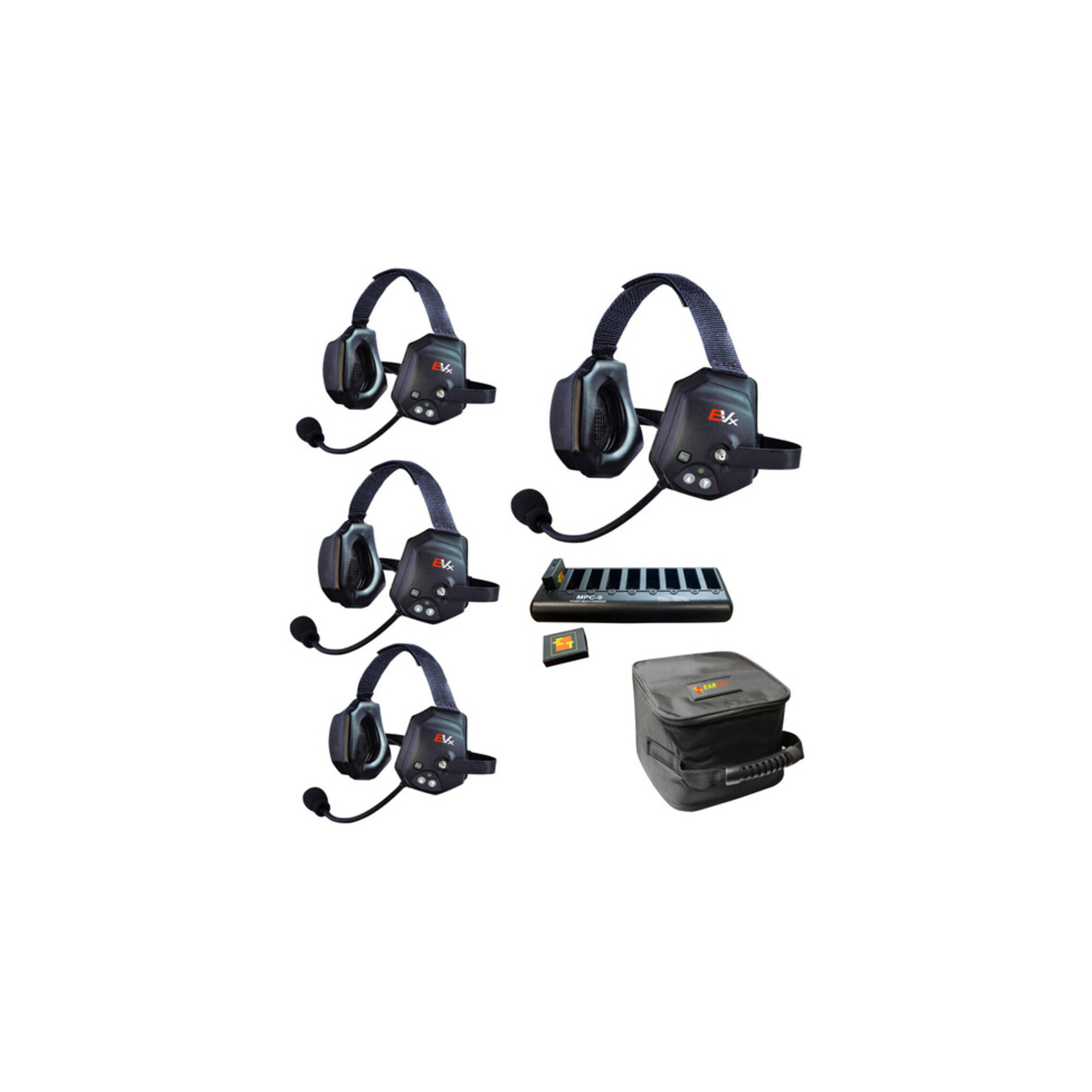

Eartec EVADE XTreme EVXT4 Industrial Full-Duplex Wireless Intercom System with 4 Dual-Ear Headsets (2.4 GHz)

Eartec EVADE are a new class of Light Industrial wireless team communication systems designed for professional crews that need instantaneous, hands free voice contact. Operating in full duplex mode they allow crews to talk simultaneously and hands free. They feature deluxe padding and a sleek, fully adjustable headband that provide outstanding comfort. EVADE have the capacity to link up to nine users within a 400-yard range enhancing coordination, productivity, and safety.

EVADE headsets are self-contained with a compact full duplex transceiver built inside the ear cups eliminating wires and belt packs. Each complete intercom includes one "MAIN" headset that relays the digital signals generated by up to eight "Remotes". The headsets link automatically without a base station which makes the EVADE series easy to operate, reliable, and affordable.

A digital wireless technology known as Frequency Hopping controls the operation of all EVADE intercoms. These specialty headsets monitor the surrounding environment, and actually switch or "HOP" automatically to clear channels. This is the same wireless protocol utilized by the U.S. Armed Forces to keep communications completely secret and interference free.

EVADE headsets are offered in three models, Single and Dual speaker with traditional over the head band, and the Xtreme a deluxe dual ear hard hat compatible model. Since they are field programmable it is easy to expand an existing system to meet the growing needs of your crew.

Excellent performance - Range up to 1/4 mile

Radio installed inside earcup, no wires or beltpacks

Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable

Auto Mute Boom - Mute when in UP position

Volume Control - Simple up / down push button adjustment

Sealed for use outdoors in inclement conditions

Light Industrial Design - Wear comfortably for an 8 hour work shift

Field Programmable - Start small and add to your system as needed
Specifications

Frequency Range

2407MHz-2475MHz

Data Rate

1MBPS

Bandwidth

150KHz

Channel Spacing

1MHz

Modulation Type

GFSK

Gain of Antenna

0db

Duplexing

Time Division Duplex (TDD)

Speech Encoding

ADPCM/16kbit/s

RF Accessing

Time Division Multiple Access (TDMA)

Power Supply

Rechargeable Li-polymer Battery @ 3.7v/1000mAH

RF Output Power

80mw

Operating Temperature

0 - +50º C

Operating Relative Humidity Range

30% - 90%

Operation Current

110mA

Operation Time

8h

Range

350m (open field)

Eartec EVADE XTreme EVXT4 Industrial Full-Duplex Wireless Intercom System with 4 Dual-Ear Headsets (2.4 GHz)
Eartec EVADE XTreme EVXTM Industrial Full-Duplex Wireless Intercom Dual-Ear Master Headset (2.4 GHz)
3 x Eartec EVADE XTreme EVXTR Industrial Full-Duplex Wireless Intercom Dual-Ear Remote Headset (2.4 GHz)
Eartec Evade 9-Port Multi-Charger with US Plug Adapter
Eartec Evade Rechargeable 3.7 Volt Lithium Polymer Battery
Soft Case
