Cloud Pod
Blackmagic

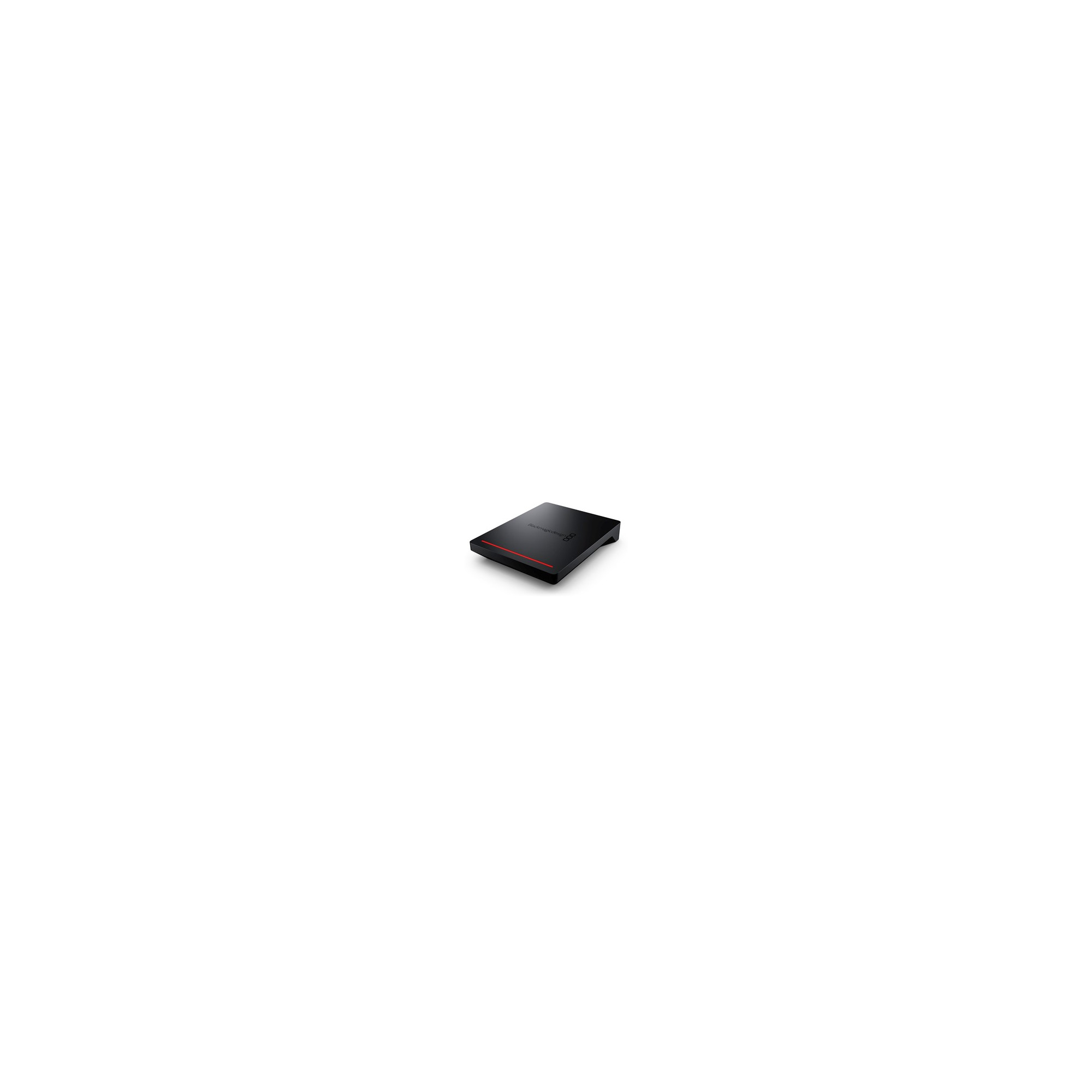

Blackmagic Cloud Pod features an extremely small and slim design because it has no internal storage space. It is also very quiet and very portable. It features two USB-C ports so that it can simultaneously accommodate two separate USB drives on its network. The 10G Ethernet port means customers get extremely high performance. There is also an HDMI monitor output so customers can watch a live graphical view of the storage running on a TV or monitor.
With a separate ultra-high-speed 10G Ethernet connection, the Blackmagic Cloud Pod is very fast. The internal processing has been designed to saturate the 10G Ethernet port at its theoretical maximum speed, so customers get full performance from the lightning-fast USB-C drives available today. When using USB-C flash drives, access has very low latency, so responsiveness is fast. Even when editing large 12K digital movie RAW files. It's so fast that multi-cam editing is very smooth, even when used with large digital camera files.
Customers can now set up a local cache of their Dropbox files. This makes the work much faster because the files are immediately available without having to download them from the Internet. Customers can save space on their computer by moving cached Dropbox files to the Blackmagic Cloud Pod so that everyone on their network can share them. Customers can also sync multiple Blackmagic Cloud Pods or Cloud Stores via Dropbox so that people in different geographic locations can collaborate without latency because they all have a local copy of the files.
The most interesting feature is the HDMI monitor output. Just plug in a TV or computer monitor to get a real-time status of the Blackmagic Cloud Pod. The storage map shows a graphical representation of the memory core and real-time read and write access for connected users. There are also graphs that show customers the data transfers over the Ethernet connection. The main space indicator shows customers the capacity of the two USB-C disks and the amount currently used. The status of each Dropbox connection is also displayed.
Pod Blackmagic Design Cloud
Compact pod design that connects 2 external USB-C drives
Hardware acceleration for high performance
Synchronize with Dropbox
Includes HDMI monitor output with live storage status
-What's in the box:
-Pod Blackmagic Design Cloud
-Power supply
- 1 year limited warranty
GSM4212UX-100EUS
GSM4248PX-100EUS
GS110TUP-100EUS
MSM4214X-100EUS
GSM4212PX-100EUS
GSM4230P-100EUS
GSM4212P-100EUS
GSM4230UP-100EUS
GSM4230PX-100EUS
GSM4248P-100EUS
DXS-1210-10TS
DXS-1210-12SC
Switch8 GO-SW-8G
Switch8 POE+
DXS-1210-16TC
Connections
10G Ethernet ports
-1 x Ethernet supports 100/1000 / 10G BASE-T
USB-C port
-2 x USB 3.0 (up to 5 Gb / s) for external storage.
HDMI monitor outputs: 1
Computer interface
-Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates.
File sharing protocol
Protocol
- SMEs
Computer connections
-50 maximum
Cloud synchronization
Compatible services
-Dropbox
storage
Storage type
- Bring your disk
External storage
-USB disks
External storage format
-ExFAT (Windows / Mac) or HFS + (Mac) file system.
View
HDMI monitor output standard
-1080p50, 1080p59.94, 1080p60
Monitor displays
-Device name, storage capacity and usage, cloud sync status, user activity, hardware status, storage map, network data rate graphs.
Status indicator
-The light strip glows red during read or write operations.
Device control
External control
-USB-C or Ethernet for configuration and software updates.
Software
Software included
-Blackmagic Cloud configuration utility
Blackmagic Proxy Generator Lite
-Internal software update via Blackmagic Cloud Setup via USB-C port.
Power Requirements
Power supply
-1 x 12V DC 60W External Power Supply.
Power inputs
-1 5.5mm cylindrical connector with 12 VDC locking.
Energy consumption
-25W without external USB drives.
Environmental Specifications
operating temperature
-0 ° to 40 ° C (32 ° to 104 ° F)
Storage temperature
-20 ° to 60 ° C (-4 ° to 140 ° F)
Relative humidity
-From 0% to 90% non-condensing
