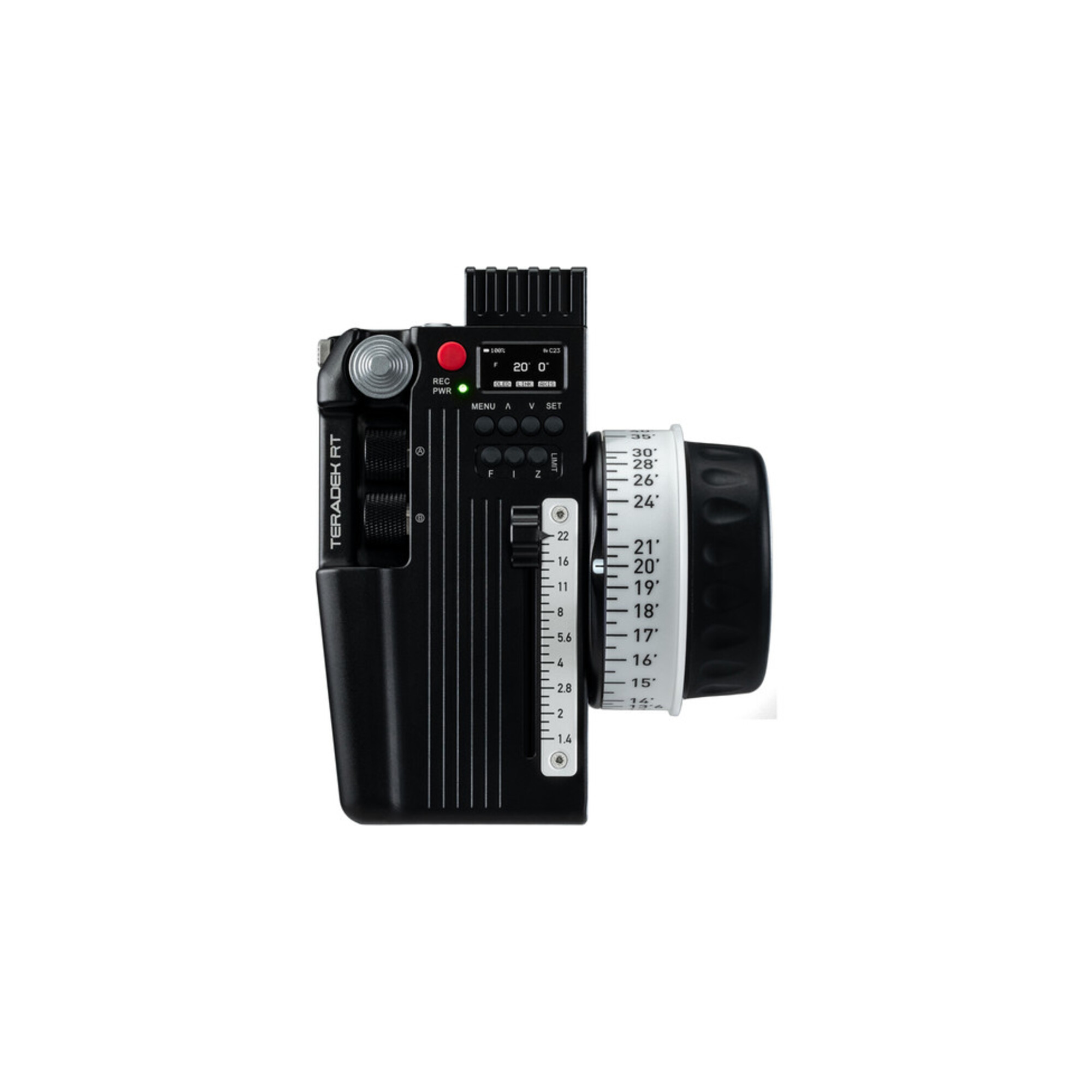

CTRL.3 Three-Axis

For precise lens control with Teradek RT motors and receivers, the Teradek CTRL.3 three-axis wireless lens controller can easily control focus, iris or zoom. The CTRL.3 has an outdoor wireless range of 5000 feet and an indoor wireless range of 500 feet. You can also use the included 5-pin monitor interface cable to connect directly to a monitor.

The large focus knob, flexible mounting options, OLED display for lens setup and data, and its lightweight design make the CTRL.3 accessible and easy to use. It is powered by a single LP-E6 battery (available separately) which provides approximately 36 hours of use. Features include a lens mapping firmware update to use pre-marked focus or the included aperture rings for quick auto calibration when changing lenses during a shoot. The CTRL.3 comes with five white Type B discs, a 3 'USB cable, a SmallHD monitor interface cable, a large carrying case, six pre-marked focus rings and four iris strip sliders.

Run / stop control for RED (EPIC, SCARLET, WEAPON, RAVEN, etc.), ARRI (ALEXA, AMIRA, etc.), Phantom, Sony F55 and LANC (Blackmagic, Canon C100 / 300/500, Sony FS7, etc.) cameras .)
Knob, slider, x / y zoom and rollers (a + b)
Lens data overlays on SmallHD monitors running OS3 allow you to get focus information directly on the monitor, including focal distance, focal length, aperture and zoom
Bluetooth compatibility of the MDR.X, MDR.ACI and RT iOS apps
Manage, upgrade and configure your Teradek RT system with the Teradek RT app for iOS
Four 1/4 "-20 threads, one ARRI rosette with M6 thread and lanyard holder for mounting
Housing for a Canon LP-E6 battery (6.2 to 8.4 V)
5-pin locking connector for wired mode
The USB port provides the monitor interface and wired control
Pre-marked rings are available in metric units
FCC, IC and CE certifications

In the box
Teradek CTRL.3 three-axis wireless lens controller (metric)
5 white Teradek discs for CTRL.1 / CTRL.3 controllers
USB Type A to Micro USB Type B Cable (3 ')
SmallHD 5-Pin to Micro-USB Monitor Interface Cable (1.3 ')
Pre-marked focus ring (minimum focus 0.25m)
Pre-marked focus ring (minimum focus 0.5m)
Pre-marked focus ring (1m minimum focus)
Pre-marked focus ring (minimum focus of 2m)
Pre-marked focus ring (3m minimum focus)
Pre-marked iris ring (1 - 32)
Iris stripe slider 0 (1 - 22)
Iris strip slider 10 (1.4 - 22)
Iris Strip Slider 20 (2 - 22)
Iris strip slider 30 (2.8 - 22)
Large Teradek case with RT Motion 3 motor
1 year limited warranty
