Nucleus N II - WLC-T05-HWC

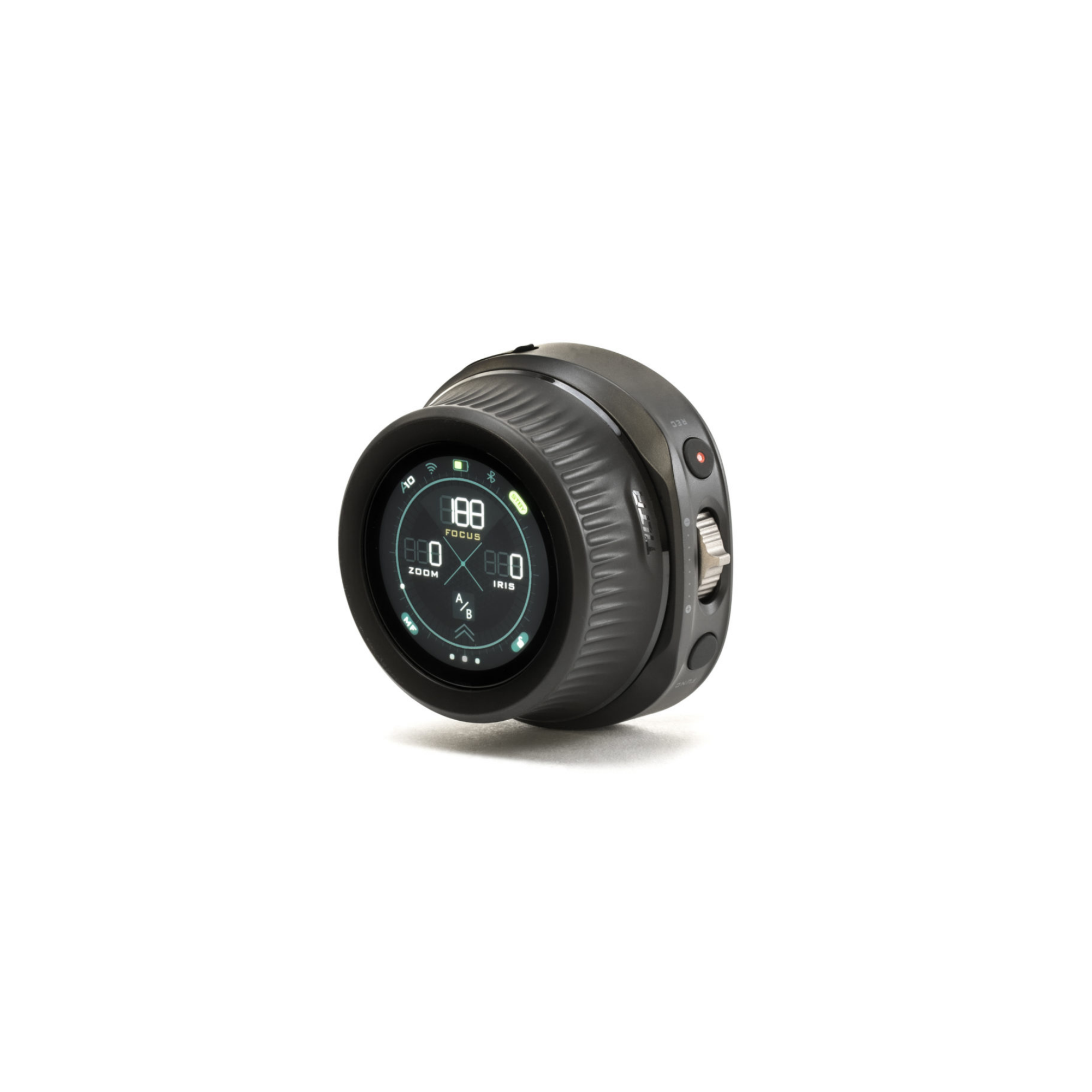

Tilta Nucleus Nano II Hand Wheel Controller (WLC-T05-HWC)

Der Tilta Nucleus Nano II Hand Wheel Controller (WLC-T05-HWC)is a handheld transmitter with a rotary wheel for the Tilta Nucleus Nano II 3-channel radio remote control.
The device's steering wheel module has a practical touchscreen LCD display that makes it easy to use.
In addition, the battery is integrated directly into the module, which makes for a compact and practical solution.
The setting options are made possible by simple swiping gestures, which ensures intuitive control. With this system, up to three motors can be controlled simultaneously, for example for zoom, iris and focus.

Instead of physical hard stops, there is a vibration signal indicating the engine has reached its limits. However, after the signal, the motor can be turned further to make precise adjustments.
Another function is the camera control, which allows to adjust various parameters such as aperture, exposure time, ISO or white balance (depending on the compatibility of the camera model) directly via the system.
The system is compatible with various accessories such as the Tilta Nucleus-Nano (1st version), Nucleus-M, Mirage VND motor and the Gravity radio remote control set for LED headlights.
In addition, it offers a gimbal control function for DJI RS 2 and RS 3 Pro with an optional handle operated via joystick and finger wheel.

For example, thanks to the NATO clamp with integrated contacts, the system can be attached to an optional gimbal handle controller for even better control.
When connected to the optional handle, it is also possible to charge the steering wheel module directly.

Hand transmitter with rotary wheel
for Tilta Nucleus Nano II 3-channel radio remote control
integrated battery in steering wheel module
LCD display with touch function
Setting options with simple swipe gestures
simultaneous control of up to three motors
Camera Control
kompatibel mit Tilta Nucleus-Nano (1. Version), Nucleus-M, Mirage VND Motor etc.
provides gimbal control function
NATO clamp with integrated contacts
Powered by USB Type-C port
