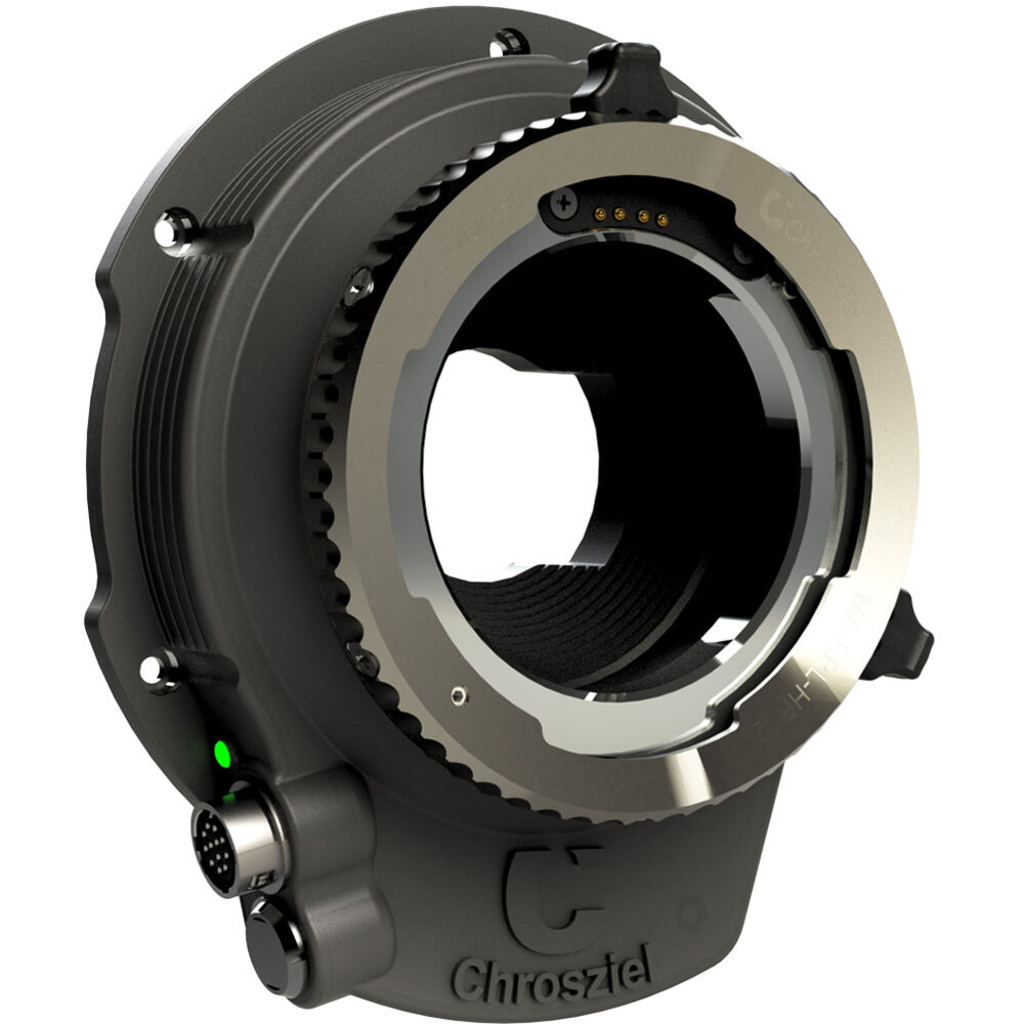

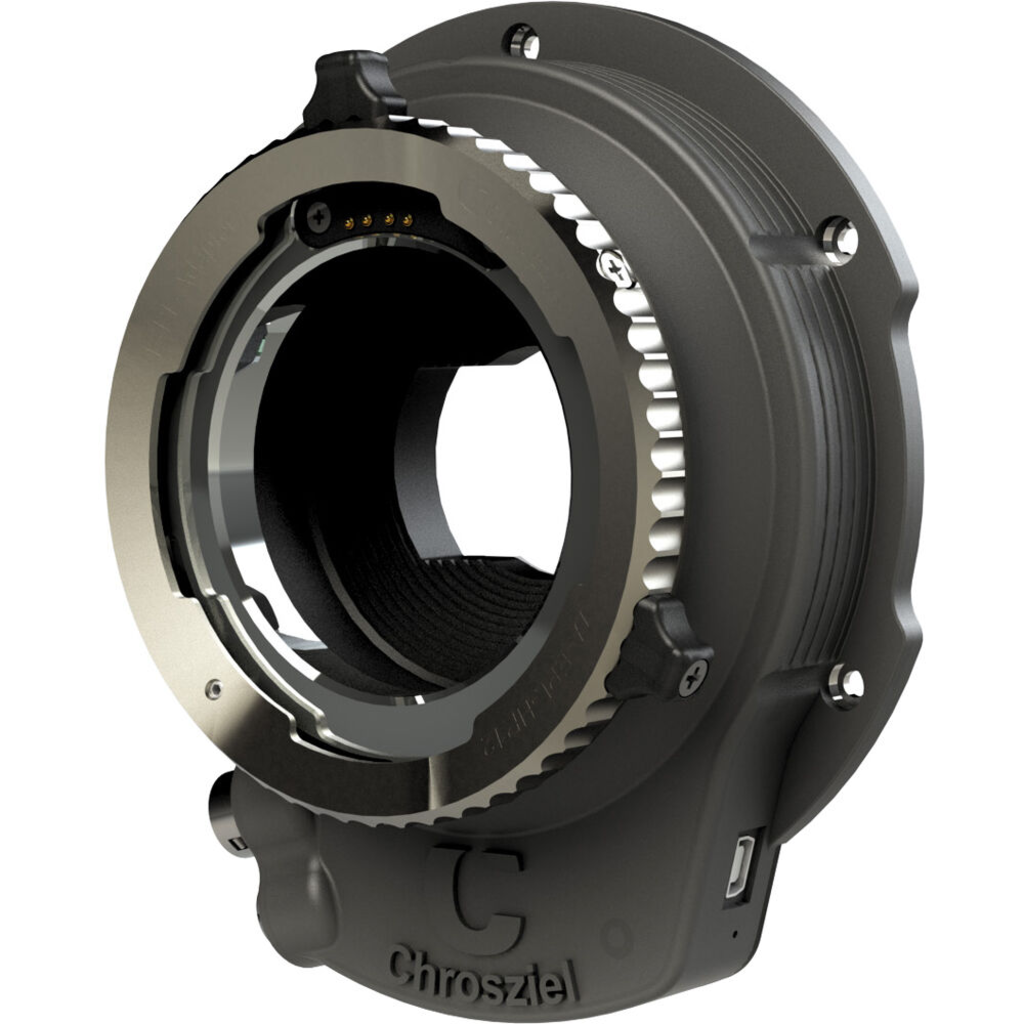

Chrosziel Meta Mount Active Adapter for Sony BURANO to ARRI PL - Black

For monitoring and post-production work that requires lens metadata as well as ENG lens control, Chrosziel offers the Meta Mount Active Adapter for Sony BURANO to ARRI PL. When the Meta Mount is used with cinema lenses that feature ARRI's Lens Data System or Cooke's i/Data protocol, focus distance, T-stop, and focal length metadata are transmitted through the adapter's electronic contacts, appear in the BURANO's viewfinder and monitor, and get recorded to the video file for post-production work.

A 12-pin Hirose out connection enables focus, iris, and zoom control for ENG-style, servo-controlled broadcast lenses through the camera, Sony BURANO GP-VR100 hand grip, Sony FX9 top handle, a remote control panel, or the BURANO's web GUI.
The Meta Mount has a max power consumption of 350mAh at 12V and includes a set of shims for precise lens calibration, a mini-USB cable for firmware updates, and accessory power cables.
Camera Mount: Sony Burano
Lens Mount: ARRI PL Mount
Electronic Communication: Yes
Inputs/Outputs:
- 1x Hirose 12-Pin Lens Control Output
- 1x Lemo 0B 5-Pin Power Input
- 1x Mini-USB Firmware Update Input
Display: No
Tripod Mounting Thread: 3/8"-16 Female
Chrosziel Meta Mount Active Adapter for Sony BURANO to ARRI PL
Chrosziel D-Tap Power Cable for MagNum
Chrosziel MagNum 5-Pin LEMO to 4-Pin Hirose Start/Stop + Power Cable
Shim Set
Mini-USB Cable
