Dji SDR 2 Expansion Accessory KitEAN  6937224148109

DjiDji
EAN:6937224148109
₦ 292,192.35
VAT Included
Available in 15 days
DJI SDR 2 Expansion Accessory Kit - CP.TR.00000058.02

The DJI SDR Transmission 2 Expansion Accessory Kit extends professional broadcast capabilities with dedicated connectors for SDI, HDMI, and USB-C signals.
The included expansion plate and cold shoe adapter integrate seamlessly with cinema workflows, enabling full metadata transmission for colour grading, focus data, and timecode synchronization across connected devices.
Essential for productions requiring multi-format I/O and real-time monitoring integration.
Expansion Plate
Weight: Approx. 105 g
Dimensions: 76×54×25 mm (L×W×H, excluding Cold Shoe Adapter)
Ports:
HDMI: Input/output
USB-C (Right): Power supply and DJI RS 5 connection
USB-C (Bottom): Power supply, camera control (photo capture and recording start/stop), and connection to DJI Ronin series devices other than DJI RS 5
SDI: Input/output

Power Supply
USB-C Power Supply Type 1: 15 V/9 V, 3 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.5 V DC
Operating Temperature:,-10° to 40° C (14° to 104° F)

Transceiver Cage
Weight: Approx. 91 g
Dimensions: 124×110×49 mm (L×W×H)
Mounting:
NATO port
1/4″-20 screw hole × 2
3/8″-16 screw hole
HDMI cable clamp
USB-C cable clamp
Operating Temperature: -10° to 40° C (14° to 104° F)

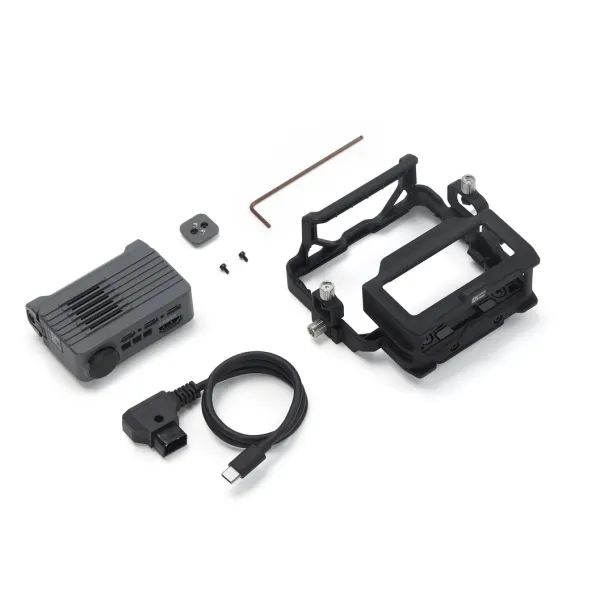

1x D-TAP to USB-C Power Cable (50 cm)
1x Ball-End Hex Key (2 mm)
1x SDR Transmission 2 Transceiver Cage
1x SDR Transmission 2 Expansion Plate (SDI/HDMI/USB-C)
1x DJI SDR Transmission 2 Camera Cold Shoe Adapter
