FM-U245HDR - Swit
Monitors > Monitors up to 35"
EAN:6948193513928
₦ 8,327,002.68
VAT Included
VAT Included
Adcom - Swit
New
Available in 7 days
Swit FM-U245HDR | 23.8 inch 4K HDR monitor 1000nits 4×12G-SDI, 3840×2160, 1,073,000 colors, 10 bit
- 1000nits high bright LED backlight
- HLG/PQ/S-log3 HDR, Payload ID auto setting
- 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input
- Quad-view / Pic-by-Pic / Pic-in-Pic
- 3DLUT Auto Self-calibration without PC
- 18-bit and Zero latency video process
- Built-in Multi camera Delog LUTs
- 13× User 3DLuts Cubes Upload by USB-A
- Waveform / Vector Scope / CIE Scope / Histogram
- Eye Pattern / Focus Assist / Zebra / False Color
- Anamorpic De-squeeze 1.33/1.5/1.6/1.8/2/ MAG
- Audio meters / Lissajous / 5.1&7.1 Surround pattern
- On-board V-mount battery plate
- Shipping with flight case and various accessories
- Junior & Baby double riser stand mounting

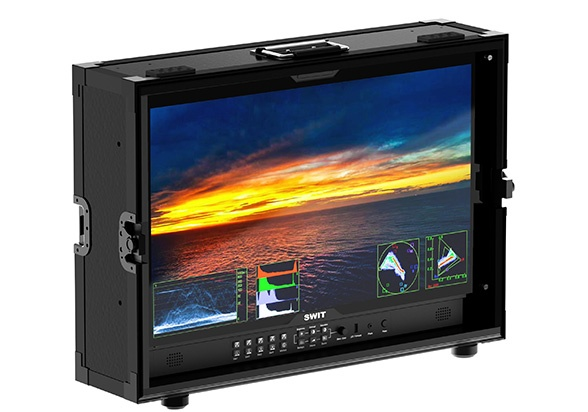

23.8" 4K 1000nits HDR
FM-U245HDR is a 23.8-inch 4K monitor for lmset or live productions.
The 1000nits high bright display panel allows a clear view even under direct sunlight, and HDR enabled.
The pre-installed ight case and all around protections are for convenient carrying away and eld setup.

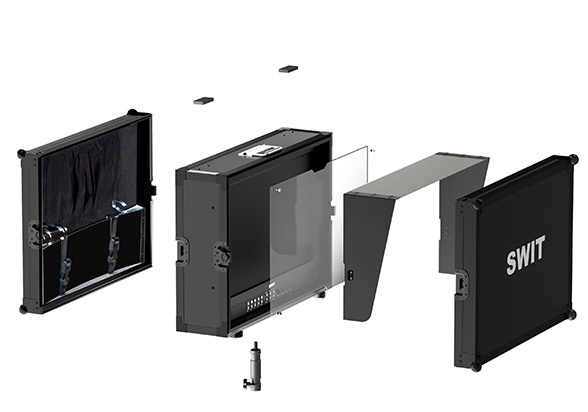

Flight Case Setup
The monitor is pre-installed with an all around protective ight case, and provided with screen glass, sun hood, top 2× cheese plates, and bottom detachable light stand mounting adaptor.
All 4K Interfaces
FM-U245HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 12G-SDI Quadlink 8K in and loop
- 4× 3G-SDI Quadlink 4K in and loop
- HDMI® 2.0 4K input
Multiview Display Mode
FM-U245HDR supports 4x input video of mixed formats Quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view.
You can select HDR/SDR gamma, color gamut independently for each input.
Color Management, Delog and User Lut Upload
FM-U245HDR supports SDR Gamma 1.8/2.2/2.4/2.6 and HDR Gamma HLG1000, PQ1000, S-Log3, 2.4HDR selestion, and has built-in multiple camera Delog Luts, and support 13x User 3DLuts upload by front USB-A socket.
Anamorphic De-squeeze
FM-U245HDR su
- 1000nits high bright LED backlight
- HLG/PQ/S-log3 HDR, Payload ID auto setting
- 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input
- Quad-view / Pic-by-Pic / Pic-in-Pic
- 3DLUT Auto Self-calibration without PC
- 18-bit and Zero latency video process
- Built-in Multi camera Delog LUTs
- 13× User 3DLuts Cubes Upload by USB-A
- Waveform / Vector Scope / CIE Scope / Histogram
- Eye Pattern / Focus Assist / Zebra / False Color
- Anamorpic De-squeeze 1.33/1.5/1.6/1.8/2/ MAG
- Audio meters / Lissajous / 5.1&7.1 Surround pattern
- On-board V-mount battery plate
- Shipping with flight case and various accessories
- Junior & Baby double riser stand mounting
23.8" 4K 1000nits HDR
FM-U245HDR is a 23.8-inch 4K monitor for lmset or live productions.
The 1000nits high bright display panel allows a clear view even under direct sunlight, and HDR enabled.
The pre-installed ight case and all around protections are for convenient carrying away and eld setup.
Flight Case Setup
The monitor is pre-installed with an all around protective ight case, and provided with screen glass, sun hood, top 2× cheese plates, and bottom detachable light stand mounting adaptor.
All 4K Interfaces
FM-U245HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 12G-SDI Quadlink 8K in and loop
- 4× 3G-SDI Quadlink 4K in and loop
- HDMI® 2.0 4K input
Multiview Display Mode
FM-U245HDR supports 4x input video of mixed formats Quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view.
You can select HDR/SDR gamma, color gamut independently for each input.
Color Management, Delog and User Lut Upload
FM-U245HDR supports SDR Gamma 1.8/2.2/2.4/2.6 and HDR Gamma HLG1000, PQ1000, S-Log3, 2.4HDR selestion, and has built-in multiple camera Delog Luts, and support 13x User 3DLuts upload by front USB-A socket.
Anamorphic De-squeeze
FM-U245HDR su
